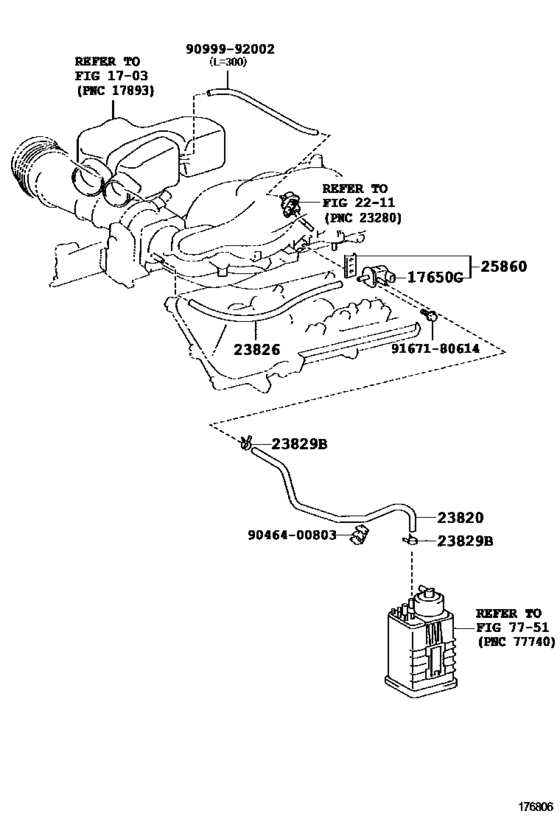

Vacuum Piping ([08.2009 - ] (0908- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- From
- 11.2010
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17650G
|
17650G
90910-12276 Valve, Duty Vacuum Switching[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
90910-12276 |
from US $22.71 |
||
|
23820
|
23820
23820-31200 Hose Assy, Fuel Vapor FeedFUEL VAPOR FEED [11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
23820-31200 |
US $16.07 |
||
|
23820
|
23820
23820-31210
Hose Assy, Fuel Vapor Feed
[08.2012 -] 1GRFE..GSJ15..GCC,GEN,SA FUEL TANK-WITH(SUB TANK) |
23820-31210 |
— | ||
|
23826
|
23826
23826-31160 Hose, Fuel Vapor Feed, No.1FUEL VAPOR FEED, NO.1 [11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
23826-31160 |
from US $12.50 |
||
|
23829B
|
23829B
90466-11003 Clamp Or Clip(For Radiator Reserve Tank Hose)[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
90466-11003 |
from US $1.79 |
||
| replacement | |||||
|
23829B
|
23829B
90466-A0001 Clip(For Fuel Vapor Feed Hose, No.1)[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
90466-A0001 |
US $3.15 |
||
|
25860
|
25860
25860-36020 Valve Assy, Vacuum Switching, No.1VACUUM SWITCHING, NO.1 [11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
25860-36020 |
from US $45.60 |
||
|
9046400803
|
9046400803
90464-00803 New Genuine Part |
90464-00803 |
US $0.87 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
