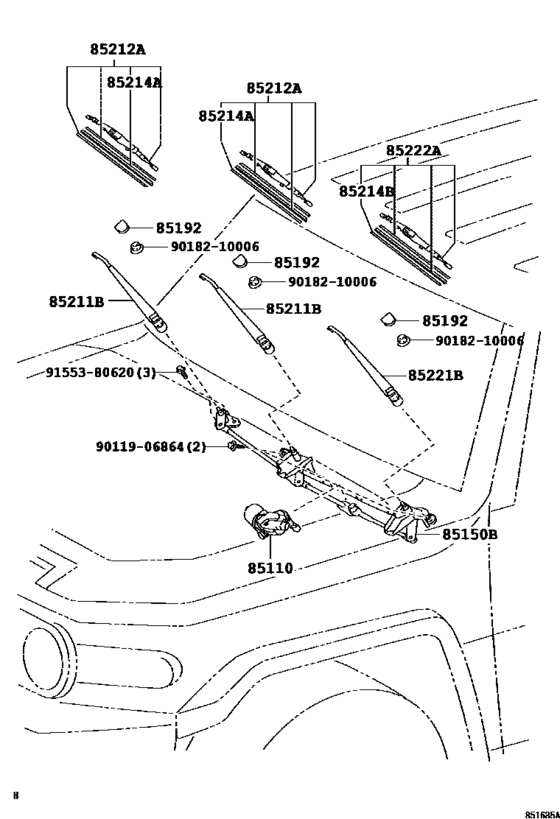

Windshield Wiper ([07.2007 - ] (0707- )LHD) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- From
- 11.2010
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-60390 Motor Assy, Windshield Wiper[11.2010 -] GSJ15..LHD |
85110-60390 |
from US $248.10 |
||
|
85150B
|
85150B
85150-35210 Link Assy, WiperWIPER [11.2010 - 10.2013] GSJ15..LHD |
85150-35210 |
US $101.92 |
||
| replacement | |||||
|
85150B
|
85150B
85150-35211
Link Assy, Wiper
[11.2010 - 10.2013] GSJ15..LHD |
85150-35211 |
— | ||
|
85150B
|
85150B
85150-35211
Link Assy, Wiper
[11.2013 -] GSJ15..LHD |
85150-35211 |
— | ||
|
85192
|
85192
85292-13010 Cover, Windshield Wiper Arm[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
85292-13010 |
from US $4.03 |
||
|
85211B
|
85211B
85211-35140 Arm, Front Wiper, RhFR WIPER, RH [11.2010 -] GSJ15..LHD |
85211-35140 |
from US $27.23 |
||
|
85212A
|
85212A
85212-35091 Blade, Fr Wiper, Rh[11.2010 -] GSJ15..LHD |
85212-35091 |
from US $19.21 |
||
|
85214A
|
85214A
85214-68011 Rubber, Wiper, Lh[11.2010 -] GSJ15..LHD |
85214-68011 |
from US $5.87 |
||
|
85214B
|
85214B
85214-50061 Rubber, Wiper, Rh[11.2010 -] GSJ15..LHD |
85214-50061 |
from US $7.89 |
||
|
85221B
|
85221B
85221-35141 Arm, Front Wiper, Lh[11.2010 -] GSJ15..LHD |
85221-35141 |
from US $27.23 |
||
|
85222A
|
85222A
85212-13031 Blade, Fr Wiper, RhRR WIPER [11.2010 -] GSJ15..LHD |
85212-13031 |
from US $20.44 |
||
|
9011906864
|
9011906864
90119-06864 BOLT W-WASHER |
90119-06864 |
US $1.43 |
||
|
9018210006
|
9018210006
90182-10006 Nut (For Front Wiper Arm Setting) |
90182-10006 |
US $1.43 |
||
|
9155380620
|
9155380620
91553-80620 BOLT FLANGE |
91553-80620 |
US $1.08 |
||
