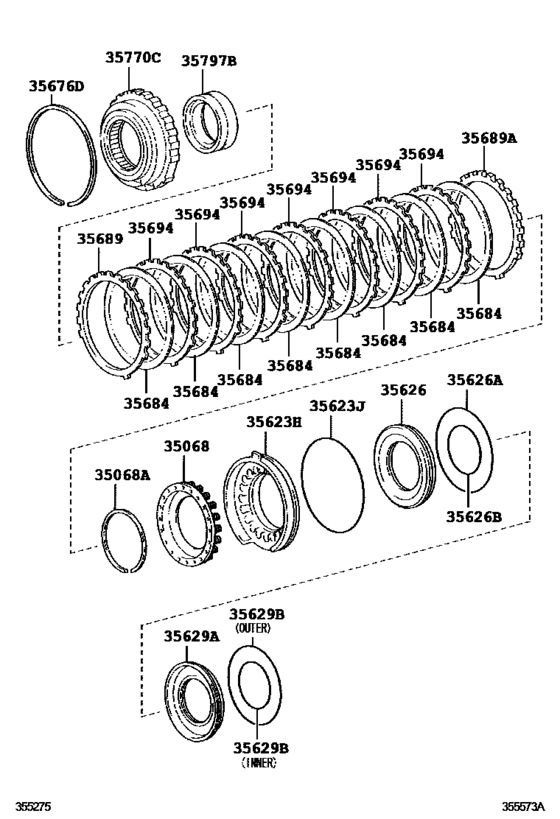

Brake No.3, 1St & Reverse Brake (Atm) ([07.2007 - ] A750F (0707- )ATM) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2016
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2010
- To
- 08.2016
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35068
|
35068
35068-0C010 Spring Sub-Assy, 1St & Reverse Brake Return[11.2010 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) (L) |
35068-0C010 |
US $24.90 |
||
|
35068
|
35068
35068-60010 Spring Sub-Assy, 1St & Reverse Brake Return[11.2010 -] GSJ15..ATM..(ARL,GCC,GEN,SA) (J) |
35068-60010 |
from US $24.90 |
||
|
35068A
|
35068A
90520-61001 Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)[11.2010 - 07.2013] GSJ15..ATM |
90520-61001 |
from US $0.96 |
||
|
35068A
|
35068A
90520-A0025
Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)
[07.2013 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) (L) |
90520-A0025 |
— | ||
|
35623H
|
35623H
35623-60060 Piston, 1St & Reverse Brake[11.2010 - 08.2016] GSJ15..ARL |
35623-60060 |
US $59.40 |
||
|
35623J
|
35623J
90301-99087 Ring, O (For Overdrive Brake Piston)[11.2010 - 08.2016] GSJ15..ARL |
90301-99087 |
from US $2.62 |
||
|
35626
|
35626
35626-60010 Sleeve, Brake Reaction[11.2010 - 08.2016] GSJ15..ARL |
35626-60010 |
US $23 |
||
|
35626A
|
35626A
90301-99143 Ring, O (For Brake Piston No.4)[11.2010 - 08.2016] GSJ15..ARL |
90301-99143 |
US $2.62 |
||
|
35626B
|
35626B
90301-79003 Ring (For Brake Reaction Sleeve Inner)[11.2010 - 08.2016] GSJ15..ARL |
90301-79003 |
US $1.31 |
||
|
35629A
|
35629A
35629-60010 Piston, Brake, No.4[11.2010 - 08.2016] GSJ15..ARL |
35629-60010 |
US $24.17 |
||
|
35629B
|
35629B
90301-67006 Ring, O (For Brake Piston No.2)[11.2010 - 08.2016] GSJ15..ARL INNER |
90301-67006 |
US $1.31 |
||
|
35629B
|
35629B
90301-99151 Ring, O (For 1St & Reverse Brake)[11.2010 - 08.2016] GSJ15..ARL OUTER |
90301-99151 |
US $2.62 |
||
|
35676D
|
35676D
90521-99131 Ring, Hole Snap (For 1St & Reverse Brake Flange)[11.2010 - 08.2016] GSJ15..ARL |
90521-99131 |
from US $4.08 |
||
|
35684
|
35684
35684-0C040 Disc, Brake, No.4BRAKE, NO.4 [11.2010 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) TYPE B:REFER 35-01 |
35684-0C040 |
US $11.21 |
||
|
35684
|
35684
35684-50010 Disc, Brake, No.4[11.2010 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) TYPE A:REFER 35-01 |
35684-50010 |
from US $9.63 |
||
|
35689
|
35689
35689-0C010 Flange, Brake, No.4[11.2010 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) T=1.8,MARK 0,TYPE B:REFER 35-01 |
35689-0C010 |
US $23.15 |
||
|
35689
|
35689
35689-0C020 Flange, Brake, No.4[11.2010 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) T=2.0,MARK 2,TYPE B:REFER 35-01 |
35689-0C020 |
US $23.15 |
||
|
35689
|
35689
35689-0C030 Flange, Brake, No.4[11.2010 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) T=2.2,MARK 4,TYPE B:REFER 35-01 |
35689-0C030 |
US $23.15 |
||
|
35689
|
35689
35689-0C040 Flange, Brake, No.4[11.2010 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) T=2.4,MARK 6,TYPE B:REFER 35-01 |
35689-0C040 |
US $23.15 |
||
|
35689
|
35689
35689-0C050 Flange, Brake, No.4[11.2010 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) T=2.6,MARK 8,TYPE B:REFER 35-01 |
35689-0C050 |
US $23.15 |
||
|
35689
|
35689
35689-0C060 Flange, Brake, No.4[11.2010 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) T=2.8,MARK 10,TYPE B:REFER 35-01 |
35689-0C060 |
US $23.15 |
||
|
35689
|
35689
35689-0C070 Flange, Brake, No.4[11.2010 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) T=3.0,MARK 12,TYPE B:REFER 35-01 |
35689-0C070 |
US $23.15 |
||
|
35689
|
35689
35689-0C080 Flange, Brake, No.4[11.2010 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) T=3.2,MARK 14,TYPE B:REFER 35-01 |
35689-0C080 |
US $23.15 |
||
|
35689
|
35689
35689-60100
Flange, Brake, No.4
[11.2010 - 03.2011] GSJ15..ATM T=1.8,MARK 0,TYPE A:REFER 35-01 |
35689-60100 |
— | ||
|
35689
|
35689
35689-60110 Flange, Brake, No.4[11.2010 - 03.2011] GSJ15..ATM T=2.0,MARK 2,TYPE A:REFER 35-01 |
35689-60110 |
US $30.58 |
||
|
35689
|
35689
35689-60120 Flange, Brake, No.4[11.2010 - 03.2011] GSJ15..ATM T=2.2,MARK 4,TYPE A:REFER 35-01 |
35689-60120 |
US $30.58 |
||
|
35689
|
35689
35689-60130 Flange, Brake, No.4[11.2010 - 03.2011] GSJ15..ATM T=2.4,MARK 6,TYPE A:REFER 35-01 |
35689-60130 |
US $30.58 |
||
|
35689
|
35689
35689-60140 Flange, Brake, No.4[11.2010 - 03.2011] GSJ15..ATM T=2.6,MARK 8,TYPE A:REFER 35-01 |
35689-60140 |
US $30.58 |
||
|
35689
|
35689
35689-60150 Flange, Brake, No.4[11.2010 - 03.2011] GSJ15..ATM T=2.8,MARK 10,TYPE A:REFER 35-01 |
35689-60150 |
US $30.58 |
||
|
35689
|
35689
35689-60160 Flange, Brake, No.4[11.2010 - 03.2011] GSJ15..ATM T=3.0,MARK 12,TYPE A:REFER 35-01 |
35689-60160 |
US $30.58 |
||
|
35689
|
35689
35689-60170 Flange, Brake, No.4[11.2010 - 03.2011] GSJ15..ATM T=3.2,MARK 14,TYPE A:REFER 35-01 |
35689-60170 |
US $30.58 |
||
|
35689
|
35689
35689-60270 Flange, Brake, No.4[03.2011 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) T=1.8,MARK 0,TYPE A:REFER 35-01 |
35689-60270 |
from US $23.15 |
||
|
35689
|
35689
35689-60280 Flange, Brake, No.4[03.2011 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) T=1.97,MARK 1,TYPE A:REFER 35-01 |
35689-60280 |
US $23.15 |
||
|
35689
|
35689
35689-60290 Flange, Brake, No.4[03.2011 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) T=2.11,MARK 3,TYPE A:REFER 35-01 |
35689-60290 |
US $23.15 |
||
|
35689
|
35689
35689-60300 Flange, Brake, No.4[03.2011 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) T=2.25,MARK 4,TYPE A:REFER 35-01 |
35689-60300 |
US $23.15 |
||
|
35689
|
35689
35689-60310 Flange, Brake, No.4[03.2011 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) T=2.39,MARK 5,TYPE A:REFER 35-01 |
35689-60310 |
from US $23.15 |
||
|
35689
|
35689
35689-60320 Flange, Brake, No.4[03.2011 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) T=2.53,MARK 7,TYPE A:REFER 35-01 |
35689-60320 |
from US $24.29 |
||
|
35689
|
35689
35689-60330 Flange, Brake, No.4[03.2011 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) T=2.67,MARK 8,TYPE A:REFER 35-01 |
35689-60330 |
from US $23.15 |
||
|
35689
|
35689
35689-60340 Flange, Brake, No.4[03.2011 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) T=2.81,MARK10,TYPE A:REFER 35-01 |
35689-60340 |
from US $23.15 |
||
|
35689
|
35689
35689-60350 Flange, Brake, No.4[03.2011 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) T=2.95,MARK 11,TYPE A:REFER 35-01 |
35689-60350 |
from US $23.15 |
||
|
35689
|
35689
35689-60360 Flange, Brake, No.4[03.2011 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) T=3.09,MARK 12,TYPE A:REFER 35-01 |
35689-60360 |
US $23.15 |
||
|
35689
|
35689
35689-60370 Flange, Brake, No.4[03.2011 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) T=3.23,MARK 14,TYPE A:REFER 35-01 |
35689-60370 |
US $23.15 |
||
|
35689A
|
35689A
35689-60090 Flange, Brake, No.4[11.2010 - 08.2016] GSJ15..ARL |
35689-60090 |
US $20.27 |
||
|
35694
|
35694
35694-0C010 Plate, Brake, No.4[11.2010 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) TYPE B:REFER 35-01 |
35694-0C010 |
from US $9.33 |
||
|
35694
|
35694
35694-60011 Plate, Brake, No.4[11.2010 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) TYPE A:REFER 35-01 |
35694-60011 |
from US $6.64 |
||
|
35770C
|
35770C
35770-0C010 Clutch Assy, 1Way No.31WAY NO.3 [11.2010 - 03.2014] GSJ15..ATM..(ARL,GCC,GEN,SA) TYPE B:REFER 35-01 |
35770-0C010 |
US $480.48 |
||
|
35770C
|
35770C
35770-0C040
Clutch Assy, 1Way No.3
[03.2014 - 11.2015] GSJ15..ATM TYPE B:REFER 35-01 |
35770-0C040 |
— | ||
|
35770C
|
35770C
35770-50010 Clutch Assy, 1Way No.3[11.2010 - 03.2014] GSJ15..ATM..(ARL,GCC,GEN,SA) TYPE A:REFER 35-01 |
35770-50010 |
US $479.02 |
||
| replacement | |||||
|
35770C
|
35770C
35770-60030 Clutch Assy, 1Way No.3[11.2010 - 03.2014] GSJ15..ATM..(ARL,GCC,GEN,SA) TYPE A:REFER 35-01 |
35770-60030 |
from US $442.62 |
||
|
35770C
|
35770C
35770-60030 Clutch Assy, 1Way No.3[04.2014 - 11.2015] GSJ15..ATM TYPE A:REFER 35-01 |
35770-60030 |
from US $442.62 |
||
|
35797B
|
35797B
35797-50031 Race, 1 Way Clutch, Inner[11.2010 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) TYPE A:REFER 35-01 |
35797-50031 |
US $86.31 |
||
|
35797B
|
35797B
35797-60020 Race, 1 Way Clutch, Inner[11.2010 - 11.2015] GSJ15..ATM..(ARL,GCC,GEN,SA) TYPE B:REFER 35-01 |
35797-60020 |
from US $88.82 |
||
