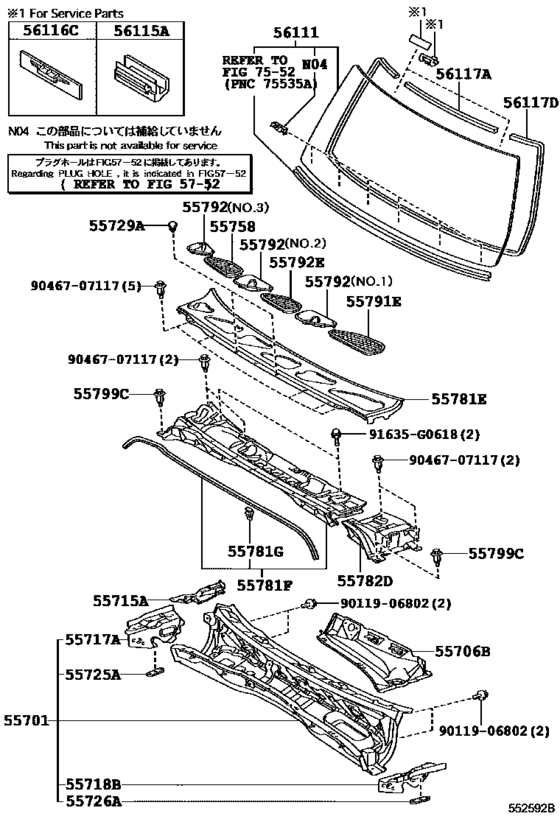

Cowl Panel & Windshield Glass ([11.2010 - ] (1011- )RHD) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2016
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2010
- To
- 08.2016
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55701
|
55701
55700-35740 Panel Sub-Assy, Cowl[11.2010 - 08.2016] GSJ15..ARL |
55700-35740 |
US $313.04 |
||
|
55706B
|
55706B
55707-35010 Panel Sub-Assy, Cowl Top Side, Lh[11.2010 - 08.2016] GSJ15..ARL |
55707-35010 |
US $55.33 |
||
|
55715A
|
55715A
55715-35050 Brace, Cowl Top To Apron, Rh[11.2010 - 08.2016] GSJ15..ARL |
55715-35050 |
US $12.96 |
||
|
55717A
|
55717A
55717-35060 Panel, Cowl Top Side, Inner Rh[11.2010 - 08.2016] GSJ15..ARL |
55717-35060 |
US $25.19 |
||
|
55718B
|
55718B
55718-35060 Panel, Cowl Top Side, Inner Lh[11.2010 - 08.2016] GSJ15..ARL |
55718-35060 |
US $25.19 |
||
|
55725A
|
55725A
55725-22010 Reinforcement, Hood Hinge Mounting, Rh[11.2010 - 08.2016] GSJ15..ARL |
55725-22010 |
US $4.08 |
||
|
55726A
|
55726A
55725-22010 Reinforcement, Hood Hinge Mounting, Rh[11.2010 - 08.2016] GSJ15..ARL |
55725-22010 |
US $4.08 |
||
|
55729A
|
55729A
55729-35020 Cover, Cowl Panel HoleCOWL PANEL HOLE [11.2010 - 08.2016] GSJ15..ARL |
55729-35020 |
US $1.61 |
||
|
55758
|
55758
55796-35020 Cover, Heater Air Duct[11.2010 - 08.2016] GSJ15..ARL |
55796-35020 |
US $19.82 |
||
|
55781E
|
55781E
55709-35020 Louver Sub-Assy, Cowl Top Ventilator[11.2010 - 08.2016] GSJ15..ARL |
55709-35020 |
US $122.30 |
||
|
55781F
|
55781F
55708-35140 Louver, Cowl Top Ventilator[11.2010 - 08.2016] GSJ15..ARL |
55708-35140 |
US $109.20 |
||
|
55781G
|
55781G
90467-08108 Clip(For Hood To Cowl Top Seal)[11.2010 - 08.2016] GSJ15..ARL |
90467-08108 |
from US $0.21 |
||
|
55782D
|
55782D
55783-35020 Louver, Cowl Top Ventilator, Lh[11.2010 - 08.2016] GSJ15..ARL |
55783-35020 |
US $35.24 |
||
|
55791E
|
55791E
55791-35020 Cover, Heater Duct Hole[11.2010 - 08.2016] GSJ15..ARL |
55791-35020 |
US $21 |
||
|
55792
|
55792
55793-35020 Cover, Wiper Motor Service Hole[11.2010 - 08.2016] GSJ15..ARL NO.1:REFER ILLUST. |
55793-35020 |
US $10.18 |
||
|
55792
|
55792
55794-35020 Cover, Wiper Motor Service Hole[11.2010 - 08.2016] GSJ15..ARL NO.2:REFER ILLUST. |
55794-35020 |
US $9.91 |
||
|
55792
|
55792
55795-35020 Cover, Wiper Motor Service Hole[11.2010 - 08.2016] GSJ15..ARL NO.3:REFER ILLUST. |
55795-35020 |
US $8.26 |
||
|
55792E
|
55792E
55792-35020 Cover, Heater Air Duct Hole, No.2[11.2010 - 08.2016] GSJ15..ARL |
55792-35020 |
US $12.66 |
||
|
55799C
|
55799C
90467-07066-22 Clip, Cowl Top Ventilator Louver[11.2010 - 08.2016] GSJ15..ARL BLACK |
90467-07066-22 |
from US $0.82 |
||
|
56111
|
56111
56101-35152 Glass, Windshield[11.2010 - 08.2016] GSJ15..ARL *LAM,T=4.56,GREEN |
56101-35152 |
US $595.21 |
||
|
56115A
|
56115A
56115-30100 Stopper, Windshield Glass, No.1[11.2010 - 08.2016] GSJ15..ARL |
56115-30100 |
from US $1.73 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[11.2010 - 08.2016] GSJ15..ARL |
56116-22050 |
from US $1.41 |
||
|
56117A
|
56117A
56117-35140 Dam, Window Glass AdhesiveWINDOW GLASS ADHESIVE [11.2010 - 08.2016] GSJ15..ARL L=705 |
56117-35140 |
US $5.23 |
||
|
56117D
|
56117D
56117-35070 Dam, Window Glass AdhesiveWINDSHIELD GLASS ADHESIVE [11.2010 - 08.2016] GSJ15..ARL *D,L=2910 |
56117-35070 |
US $15.03 |
||
|
91635G0618
|
91635G0618
91635-G0618 BOLT WWASHER |
91635-G0618 |
US $1.97 |
||
|
9011906802
|
9011906802
90119-06802 BOLT WWASHER |
90119-06802 |
US $1.08 |
||
|
9046707117
|
9046707117
90467-07117 Clip, Radiator Support To Frame |
90467-07117 |
from US $0.87 |
