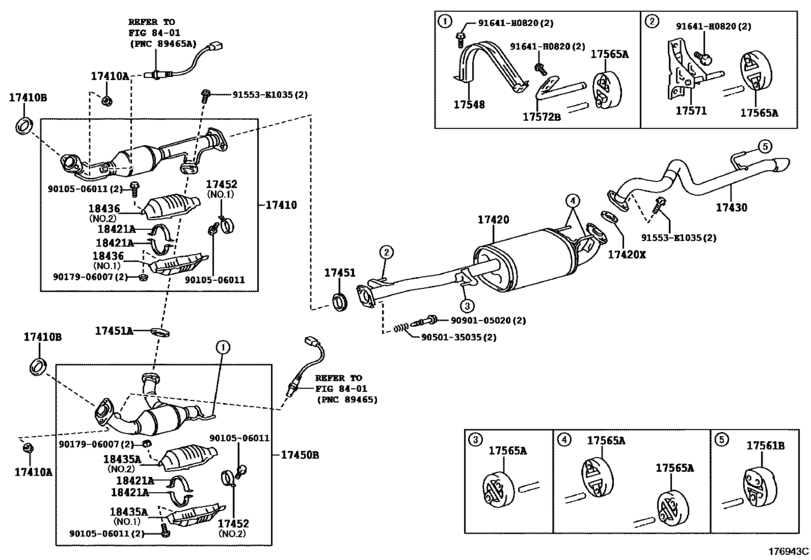

Exhaust Pipe ([11.2010 - ] (1011- )1GRFE..ARL,SA) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2016
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2010
- To
- 08.2016
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-31A20 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
17410-31A20 |
US $923.10 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
90179-10070 |
from US $1.29 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06089 Gasket, Exhaust Pipe[11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
90917-06089 |
from US $6.82 |
||
|
17420
|
17420
17420-31460 Pipe Assy, Exhaust, Center[11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
17420-31460 |
US $500.76 |
||
|
17420X
|
17420X
90917-06090 Gasket, Exhaust Pipe[11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
90917-06090 |
from US $7.03 |
||
|
17430
|
17430
17430-30041 Pipe Assy, Exhaust, TailEXHAUST, TAIL [11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
17430-30041 |
from US $146.30 |
||
|
17450B
|
17450B
17450-31121 Pipe Assy, Exhaust, Front No.2EXHAUST, FRONT NO.2 [11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
17450-31121 |
US $1,299.92 |
||
|
17451
|
17451
17451-31020 Gasket, Exhaust PipeEXHAUST PIPE [11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
17451-31020 |
from US $18.22 |
||
|
17451A
|
17451A
90917-06089 Gasket, Exhaust Pipe[11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
90917-06089 |
from US $6.82 |
||
|
17452
|
17452
90461-12350 Clamp, Exhaust Pipe[11.2010 - 08.2016] 1GRFE..GSJ15..ARL NO.1 |
90461-12350 |
US $8.24 |
||
|
17452
|
17452
90461-12353 Clamp, Exhaust Pipe[11.2010 - 08.2016] 1GRFE..GSJ15..ARL NO.2 |
90461-12353 |
from US $10.93 |
||
|
17548
|
17548
17548-31011 Bracket, Exhaust Pipe Stopper[11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
17548-31011 |
US $40.33 |
||
|
17561B
|
17561B
17565-31050 Support, Exhaust Pipe, No.1[11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
17565-31050 |
from US $12.07 |
||
|
17565A
|
17565A
17565-22040 Support, Exhaust Pipe, No.1[11.2010 -] 1GRFE..GSJ15 |
17565-22040 |
from US $9.29 |
||
|
17571
|
17571
17571-50140 Bracket, Exhaust Pipe Support, No.1[11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
17571-50140 |
US $17.65 |
||
|
17572B
|
17572B
17572-31110 Bracket, Exhaust Pipe Support, No.2EXHAUST PIPE SUPPORT, NO.2 [11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
17572-31110 |
US $8.88 |
||
|
18421A
|
18421A
18421-75010 Stay, Converter Protector, Lh[11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
18421-75010 |
US $24.36 |
||
|
18435A
|
18435A
18435-31030 Protector, Monolithic Converter[11.2010 - 08.2016] 1GRFE..GSJ15..ARL NO.2 |
18435-31030 |
US $50.67 |
||
|
18435A
|
18435A
18445-31020 Protector, Monolithic ConverterMONOLITHIC CONVERTER [11.2010 - 08.2016] 1GRFE..GSJ15..ARL NO.1 |
18445-31020 |
US $40.33 |
||
|
18436
|
18436
18435-31040 Protector, Monolithic Converter, No.1MONOLITHIC CONVERTER [11.2010 - 08.2016] 1GRFE..GSJ15..ARL NO.2 |
18435-31040 |
US $41.64 |
||
|
18436
|
18436
18445-31030 Protector, Monolithic Converter, No.1MONOLITHIC CONVERTER [11.2010 - 08.2016] 1GRFE..GSJ15..ARL NO.1 |
18445-31030 |
US $41.64 |
||
|
91553E1035
|
91553E1035
91553-E1035 BOLT FLANGE |
91553-E1035 |
from US $0.86 |
||
|
91641H0820
|
91641H0820
91641-H0820 Bolt |
91641-H0820 |
from US $0.80 |
||
|
9010506011
|
9010506011
90105-06011 BOLT |
90105-06011 |
from US $0.72 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.82 |
||
|
9050135035
|
9050135035
90501-35035 Spring, Exhaust Pipe |
90501-35035 |
from US $3.31 |
||
|
9090105020
|
9090105020
90901-05020 Bolt Or Ring, Exhaust Pipe Front (For Front) |
90901-05020 |
from US $4.12 |
||
