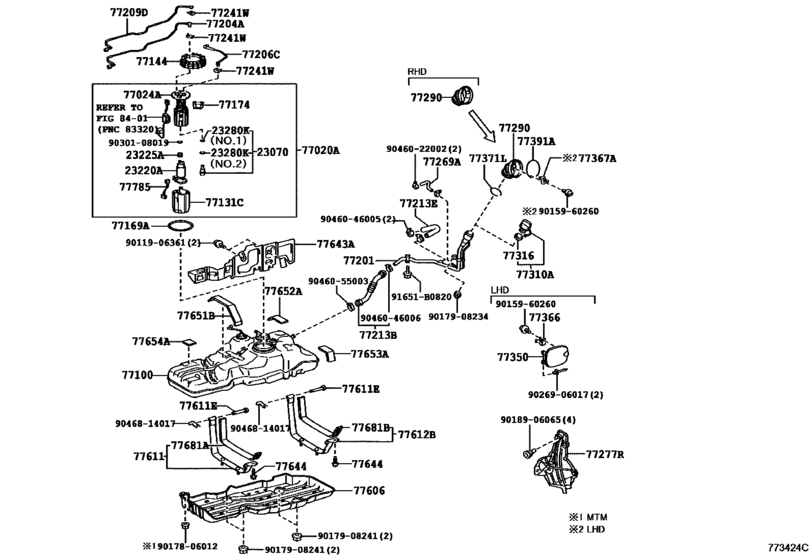

Fuel Tank & Tube ([11.2012 - ] FUEL TANK,W(SUB TANK) (1211- )ARL,GEN,SA) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2016
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2010
- To
- 08.2016
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23070
|
23070
23070-31010 Valve Assy, Fuel MainFUEL MAIN [11.2010 -] 1GRFE..GSJ15 |
23070-31010 |
from US $27.21 |
||
|
23220A
|
23220A
23220-31430 Pump Assy, Fuel W/filterFUEL [11.2010 -] 1GRFE..GSJ15 |
23220-31430 |
from US $312.09 |
||
|
23220A
|
23220A
23220-31460 Pump Assy, Fuel W/filterFUEL [11.2012 -] 1GRFE..GSJ15..ARL,GCC,GEN,SA FUEL TANK-WITH(SUB TANK) |
23220-31460 |
US $304.08 |
||
|
23225A
|
23225A
23225-23010 Spacer, Fuel Pump[11.2010 -] 1GRFE..GSJ15 |
23225-23010 |
from US $0.72 |
||
|
23280K
|
23280K
90301-04013 Ring, O(For Fuel Pump)[11.2010 -] 1GRFE..GSJ15 NO.1 |
90301-04013 |
from US $2.07 |
||
|
23280K
|
23280K
90301-15024 Ring, O(For Fuel Pump)[11.2010 -] 1GRFE..GSJ15 NO.2 |
90301-15024 |
from US $2.09 |
||
|
77020A
|
77020A
77020-35180 Tube Assy, Fuel Suction W/pump & GageFUEL SUCTION W/PUMP & GAGE [11.2010 - 08.2012] GSJ15 |
77020-35180 |
US $628.99 |
||
| replacement | |||||
|
77020A
|
77020A
77020-35181 Tube Assy, Fuel Suction W/pump & Gage[11.2010 - 08.2012] GSJ15 |
77020-35181 |
from US $442.64 |
||
|
77020A
|
77020A
77020-35181 Tube Assy, Fuel Suction W/pump & Gage[09.2012 -] GSJ15 |
77020-35181 |
from US $442.64 |
||
|
77020A
|
77020A
77020-35200
Tube Assy, Fuel Suction W/pump & Gage
[11.2012 -] GSJ15..ARL,GEN,SA FUEL TANK-WITH(SUB TANK) |
77020-35200 |
— | ||
|
77024A
|
77024A
77024-60260 Plate Sub-Assy, Fuel SuctionFUEL SUCTION [11.2010 -] GSJ15 |
77024-60260 |
US $55.91 |
||
|
77024A
|
77024A
77024-60270 Plate Sub-Assy, Fuel SuctionFUEL SUCTION [11.2012 -] GSJ15..ARL,GEN,SA FUEL TANK-WITH(SUB TANK) |
77024-60270 |
US $86.22 |
||
|
77100
|
77100
77001-35A10
Tank Assy, Fuel
[11.2012 - 09.2016] GSJ15..ARL,GEN,SA FUEL TANK-WITH(SUB TANK) |
77001-35A10 |
— | ||
|
77100
|
77100
77001-35A40 Tank Assy, FuelFUEL [11.2010 - 09.2016] GSJ15 |
77001-35A40 |
US $538.72 |
||
|
77131C
|
77131C
77131-60090 Sub-Tank, Fuel, No.1FUEL, NO.1 [11.2010 -] GSJ15 |
77131-60090 |
from US $18.48 |
||
|
77144
|
77144
77144-35010 Retainer, Fuel Pump Gauge[11.2010 -] GSJ15 |
77144-35010 |
from US $28.16 |
||
|
77169A
|
77169A
77169-47030 Gasket, Fuel Suction Tube Set[11.2010 -] GSJ15 |
77169-47030 |
from US $3.94 |
||
|
77174
|
77174
77174-60020 Support, Fuel Suction, No.1FUEL SUCTION, NO.1 [11.2010 -] GSJ15 |
77174-60020 |
US $5.53 |
||
|
77201
|
77201
77201-35810 Pipe Sub-Assy, Fuel Tank InletFUEL TANK INLET [11.2010 -] GSJ15 |
77201-35810 |
US $142.69 |
||
|
77201
|
77201
77201-35830
Pipe Sub-Assy, Fuel Tank Inlet
[11.2012 - 08.2016] GSJ15..ARL,GCC,GEN,SA FUEL TANK-WITH(SUB TANK) |
77201-35830 |
— | ||
|
77204A
|
77204A
77204-35080 Tube, Fuel Tank ReturnFUEL TANK RETURN [11.2010 -] GSJ15 |
77204-35080 |
US $21.32 |
||
|
77206C
|
77206C
77206-60530
Tube Sub-Assy, Fuel Main, No.2
[11.2012 -] GSJ15..ARL,GEN,SA FUEL TANK-WITH(SUB TANK) |
77206-60530 |
— | ||
|
77209D
|
77209D
77209-35450 Tube Sub-Assy, Fuel Tank MainFUEL TANK MAIN [11.2010 -] GSJ15 |
77209-35450 |
US $21.32 |
||
|
77213B
|
77213B
77213-35380 Hose, Fuel Tank To Filler Pipe[11.2010 -] GSJ15 |
77213-35380 |
from US $29.94 |
||
|
77213E
|
77213E
77213-35400
Hose, Fuel Tank To Filler Pipe
[11.2012 -] GSJ15..ARL,GCC,GEN,SA FUEL TANK-WITH(SUB TANK) |
77213-35400 |
— | ||
|
77241W
|
77241W
77241-33011 Clip, Tube Joint[11.2010 -] GSJ15 |
77241-33011 |
from US $0.84 |
||
|
77269A
|
77269A
77269-35040
Hose, Fuel Tank Breather
[11.2012 -] GSJ15..ARL,GCC,GEN,SA FUEL TANK-WITH(SUB TANK) |
77269-35040 |
— | ||
|
77277R
|
77277R
77277-35031 Protector, Fuel Tank Filler Pipe[11.2010 - 08.2016] GSJ15..ARL |
77277-35031 |
US $15.14 |
||
|
77290
|
77290
77291-35160 Shield Assy, Fuel Tank Filler Pipe[11.2010 - 08.2016] GSJ15..ARL |
77291-35160 |
US $20.68 |
||
|
77310A
|
77310A
77300-52030 Cap Assy, Fuel Tank[11.2010 - 08.2016] GSJ15..ARL |
77300-52030 |
from US $25.80 |
||
|
77316
|
77316
77316-52040 Gasket, Fuel Tank Cap[11.2010 - 08.2016] GSJ15..ARL |
77316-52040 |
from US $4.12 |
||
|
77350
|
77350
77350-35080 Lid Assy, Fuel Filler Opening[11.2010 - 08.2016] GSJ15..ARL |
77350-35080 |
US $47.04 |
||
|
77366
|
77366
77360-30070 Spring, Fuel Filler Opening Lid Hinge[11.2010 - 08.2016] GSJ15..ARL |
77360-30070 |
from US $3.42 |
||
| replacement | |||||
|
77366
|
77366
77360-0R010 Spring Assy, Charging Port Opening Lid[11.2010 - 08.2016] GSJ15..ARL |
77360-0R010 |
US $8.45 |
||
|
77371L
|
77371L
77371-35010 Ring, Fuel Tank Filler Pipe Shield[11.2010 - 08.2016] GSJ15..ARL |
77371-35010 |
from US $1.77 |
||
|
77391A
|
77391A
77391-12010 Ring, Fuel Inlet Box[11.2010 - 08.2016] GSJ15..ARL |
77391-12010 |
US $2.91 |
||
|
77606
|
77606
77606-35070 Protector Sub-Assy, Fuel Tank, No.1FUEL TANK, NO.1 [11.2010 - 08.2016] GSJ15..ARL |
77606-35070 |
from US $96.75 |
||
|
77611
|
77611
77601-35110 Band, Fuel TankFUEL TANK [11.2010 - 08.2016] GSJ15..ARL |
77601-35110 |
US $24.11 |
||
|
77611E
|
77611E
77653-35040 Pin (For Fuel Tank Band)[11.2010 - 08.2016] GSJ15..ARL |
77653-35040 |
US $8.06 |
||
|
77612B
|
77612B
77602-35050 Band, Fuel Tank, No.2FUEL TANK, NO.2 [11.2010 - 08.2016] GSJ15..ARL |
77602-35050 |
US $32.50 |
||
|
77643A
|
77643A
77643-35050 Protector, Fuel Tank, No.3FUEL TANK, NO.3 [11.2010 -] GSJ15 |
77643-35050 |
US $26.21 |
||
|
77644
|
77644
77644-35030 Bolt, Fuel Tank[11.2010 - 08.2016] GSJ15..ARL |
77644-35030 |
from US $1.41 |
||
|
77644
|
77644
77644-60020 Bolt, Fuel Tank[11.2012 - 08.2016] GSJ15..ARL FUEL TANK-WITH(SUB TANK) |
77644-60020 |
US $1.79 |
||
|
77651B
|
77651B
77651-35070 Cushion, Fuel Tank[11.2010 -] GSJ15 |
77651-35070 |
US $17.74 |
||
|
77652A
|
77652A
77652-35060 Cushion, Fuel Tank, No.2[11.2010 -] GSJ15 |
77652-35060 |
US $8.96 |
||
|
77653A
|
77653A
77653-35050 Cushion, Fuel Tank, No.3[11.2010 -] GSJ15 |
77653-35050 |
US $11.65 |
||
|
77654A
|
77654A
77654-35010 Cushion, Fuel Tank, No.4FUEL TANK, NO.4 [11.2010 -] GSJ15 |
77654-35010 |
US $3.35 |
||
|
77681A
|
77681A
77681-35060
Seat, Fuel Tank Band
[11.2010 - 08.2016] GSJ15..ARL |
77681-35060 |
— | ||
|
77681B
|
77681B
77681-35041 Seat, Fuel Tank Band[11.2010 - 08.2016] GSJ15..ARL |
77681-35041 |
US $17.65 |
||
|
77785
|
77785
77785-60020
Harness, Fuel Pump
[11.2012 -] GSJ15..ARL,GCC,GEN,SA FUEL TANK-WITH(SUB TANK) |
77785-60020 |
— | ||
| replacement | |||||
|
77785
|
77785
77785-60021 HARNESS FUEL PUMP[11.2012 -] GSJ15..ARL,GCC,GEN,SA FUEL TANK-WITH(SUB TANK) |
77785-60021 |
from US $13.32 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
9011906361
|
9011906361
90119-06361 BOLT WWASHER |
90119-06361 |
US $1.43 |
||
|
9015960260
|
9015960260
90159-60260 SCREW |
90159-60260 |
US $1.61 |
||
|
9017806012
|
9017806012
90178-06012 NUT FLANGE |
90178-06012 |
from US $0.67 |
||
|
9017908234
|
9017908234
90179-08234 NUT |
90179-08234 |
from US $0.80 |
||
|
9017908241
|
9017908241
90179-08241 NUT |
90179-08241 |
from US $0.89 |
||
|
9018906065
|
9018906065
90189-06065 CLIP |
90189-06065 |
from US $0.74 |
||
|
9026906017
|
9026906017
90269-06017 RIVET |
90269-06017 |
from US $1.12 |
||
|
9030108019
|
9030108019
90301-08019 Ring, O(For Fuel Pressure Regulator) |
90301-08019 |
from US $2.09 |
||
|
9046022002
|
9046022002
90460-22002 CLAMP |
90460-22002 |
US $9.50 |
||
| replacement | |||||
|
9046022002
|
9046022002
90460-22001 CLAMP |
90460-22001 |
from US $4.12 |
||
|
9046046005
|
9046046005
90460-46005 Clamp (For Fuel Filler Pipe) |
90460-46005 |
from US $2.62 |
||
|
9046046006
|
9046046006
90460-46006 Clamp (For Fuel Filler Pipe) |
90460-46006 |
from US $4.02 |
||
|
9046055003
|
9046055003
90460-55003 Clamp Or Clip(For Air Hose, No.1) |
90460-55003 |
from US $4.84 |
||
|
9046814017
|
9046814017
90468-14017 Clip, No.2(For Parking Brake) |
90468-14017 |
from US $0.80 |
||
