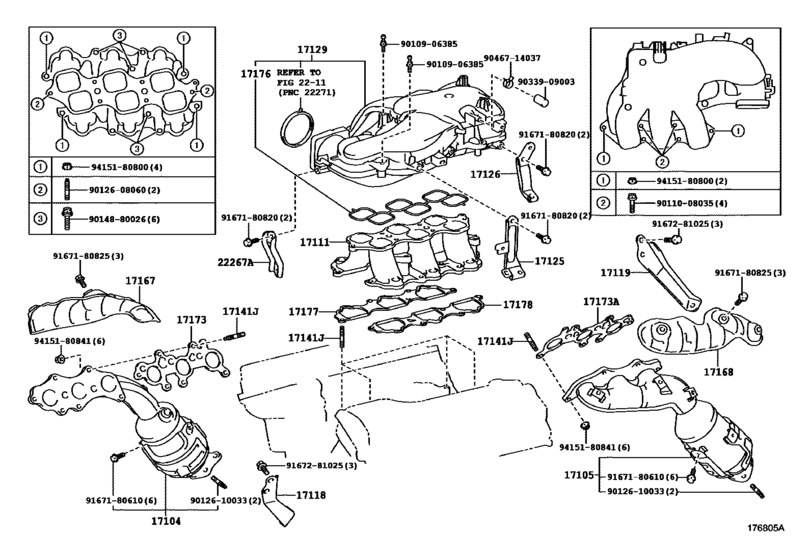

Manifold ([08.2009 - 06.2014] (0908-1406)) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2016
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2010
- To
- 08.2016
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17104
|
17104
17140-31590 Manifold Sub-Assy, Exhaust, Rh[11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
17140-31590 |
US $1,307.96 |
||
|
17105
|
17105
17150-31590 Manifold Sub-Assy, Exhaust, LhEXHAUST, LH [11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
17150-31590 |
from US $950.77 |
||
|
17111
|
17111
17111-31200 Manifold, IntakeINTAKE [11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
17111-31200 |
US $352.35 |
||
|
17118
|
17118
17118-31030 Stay, Manifold[11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
17118-31030 |
US $17.47 |
||
|
17119
|
17119
17119-31040 Stay, Manifold, No.2[11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
17119-31040 |
US $26.21 |
||
|
17125
|
17125
17125-31070 Stay, Surge Tank, No.1SURGE TANK, NO.1 [11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
17125-31070 |
US $13.98 |
||
|
17126
|
17126
17126-31060 Stay, Surge Tank, No.2SURGE TANK, NO.2 [11.2010 - 08.2011] 1GRFE..GSJ15 |
17126-31060 |
US $13.10 |
||
| replacement | |||||
|
17126
|
17126
17126-31061 Stay, Surge Tank, No.2[11.2010 - 08.2011] 1GRFE..GSJ15 |
17126-31061 |
US $9.90 |
||
|
17126
|
17126
17126-31061 Stay, Surge Tank, No.2[09.2011 - 08.2016] 1GRFE..GSJ15..ARL |
17126-31061 |
US $9.90 |
||
|
17129
|
17129
17109-31110 Tank, Intake Air SurgeINTAKE AIR SURGE [11.2010 - 12.2011] 1GRFE..GSJ15 |
17109-31110 |
US $599.87 |
||
| replacements | |||||
|
17129
|
17129
17109-31181 Tank, Intake Air Surge[11.2010 - 12.2011] 1GRFE..GSJ15 |
17109-31181 |
from US $306.81 |
||
|
17129
|
17129
44750-0C082
Hose Assy, Vacuum
[11.2010 - 12.2011] 1GRFE..GSJ15 |
44750-0C082 |
— | ||
|
17129
|
17129
17109-31112 Tank, Intake Air Surge[05.2012 - 09.2012] 1GRFE..GSJ15..ARL,CHI,GCC,SA |
17109-31112 |
US $599.87 |
||
| replacement | |||||
|
17129
|
17129
17109-31181 Tank, Intake Air Surge[05.2012 - 09.2012] 1GRFE..GSJ15..ARL,CHI,GCC,SA |
17109-31181 |
from US $306.81 |
||
|
17129
|
17129
17109-31180 Tank, Intake Air Surge[12.2011 - 05.2012] 1GRFE..GSJ15 |
17109-31180 |
US $599.87 |
||
| replacements | |||||
|
17129
|
17129
17109-31181 Tank, Intake Air Surge[12.2011 - 05.2012] 1GRFE..GSJ15 |
17109-31181 |
from US $306.81 |
||
|
17129
|
17129
44750-0C082
Hose Assy, Vacuum
[12.2011 - 05.2012] 1GRFE..GSJ15 |
44750-0C082 |
— | ||
|
17129
|
17129
17109-31181 Tank, Intake Air Surge[09.2012 - 08.2016] 1GRFE..GSJ15..ARL |
17109-31181 |
from US $306.81 |
||
|
17141J
|
17141J
90126-08052 Bolt, Stud(For Oil Pan)[11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
90126-08052 |
from US $0.76 |
||
|
17167
|
17167
17167-31050 Insulator, Exhaust Manifold Heat, No.1EXHAUST MANIFOLD HEAT, NO.1 [11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
17167-31050 |
US $48.48 |
||
|
17168
|
17168
17168-31040 Insulator, Exhaust Manifold Heat, No.2EXHAUST MANIFOLD HEAT, NO.2 [11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
17168-31040 |
US $47.17 |
||
|
17173
|
17173
17173-31050 Gasket, Exhaust Manifold To HeadEXHAUST MANIFOLD TO HEAD [11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
17173-31050 |
from US $12.35 |
||
|
17173A
|
17173A
17173-31050 Gasket, Exhaust Manifold To HeadEXHAUST MANIFOLD TO HEAD [11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
17173-31050 |
from US $12.35 |
||
|
17176
|
17176
17176-31100
Gasket, Air Surge Tank To Intake Manifold
[11.2010 - 09.2012] 1GRFE..GSJ15..ARL,CHI,GCC,SA |
17176-31100 |
— | ||
| replacement | |||||
|
17176
|
17176
17176-31140 Gasket, Air Surge Tank To Intake Manifold[11.2010 - 09.2012] 1GRFE..GSJ15..ARL,CHI,GCC,SA |
17176-31140 |
from US $12.71 |
||
|
17176
|
17176
17176-31140 Gasket, Air Surge Tank To Intake Manifold[09.2012 - 08.2016] 1GRFE..GSJ15..ARL |
17176-31140 |
from US $12.71 |
||
|
17177
|
17177
17177-31050 Gasket, Intake Manifold To Head, No.1INTAKE MANIFOLD TO HEAD, NO.1 [11.2010 - 10.2011] 1GRFE..GSJ15 |
17177-31050 |
US $7.28 |
||
| replacement | |||||
|
17177
|
17177
17177-31051 Gasket, Intake Manifold To Head, No.1[11.2010 - 10.2011] 1GRFE..GSJ15 |
17177-31051 |
from US $5.24 |
||
|
17177
|
17177
17177-31051 Gasket, Intake Manifold To Head, No.1[10.2011 - 08.2016] 1GRFE..GSJ15..ARL |
17177-31051 |
from US $5.24 |
||
|
17178
|
17178
17178-31040 Gasket, Intake Manifold To Head, No.2INTAKE MANIFOLD TO HEAD, NO.2 [11.2010 - 10.2011] 1GRFE..GSJ15 |
17178-31040 |
US $7.28 |
||
| replacement | |||||
|
17178
|
17178
17178-31041 Gasket, Intake Manifold To Head, No.2[11.2010 - 10.2011] 1GRFE..GSJ15 |
17178-31041 |
from US $5.19 |
||
|
17178
|
17178
17178-31041 Gasket, Intake Manifold To Head, No.2[10.2011 - 08.2016] 1GRFE..GSJ15..ARL |
17178-31041 |
from US $5.19 |
||
|
22267A
|
22267A
22267-31010 Bracket, Throttle Body[11.2010 - 08.2016] 1GRFE..GSJ15..ARL |
22267-31010 |
from US $8.01 |
||
|
9010906385
|
9010906385
90109-06385 Bolt , V-Bank Cover, No.1 |
90109-06385 |
from US $0.72 |
||
|
9011008035
|
9011008035
90110-08035 New Genuine Part |
90110-08035 |
US $1.38 |
||
|
9012608060
|
9012608060
90126-08060 Bolt, Stud(For Intake Manifold To Cylinder Head)STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) |
90126-08060 |
from US $2.34 |
||
|
9012610033
|
9012610033
90126-10033 Bolt, Stud(For Exhaust Manifold, Rh) |
90126-10033 |
from US $4.48 |
||
|
9014880026
|
9014880026
90148-80026 Bolt |
90148-80026 |
US $6.47 |
||
|
9033909003
|
9033909003
90339-09003 Plug(For Vacuum Hose Union) |
90339-09003 |
US $3.76 |
||
|
9046714037
|
9046714037
90467-14037 Clip Or Clamp(For Ventilation Hose) |
90467-14037 |
US $2.33 |
||
|
9167180610
|
9167180610
91671-80610 New Genuine Part |
91671-80610 |
US $1.08 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.78 |
||
|
9167180825
|
9167180825
91671-80825 Bolt, Compressor, No.1 |
91671-80825 |
from US $0.76 |
||
|
9167281025
|
9167281025
91672-81025 Bolt, Center Support Bearing Bracket |
91672-81025 |
from US $1.10 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
||
|
9415180841
|
9415180841
94151-80841 FLANGE NUT |
94151-80841 |
from US $0.76 |
||
