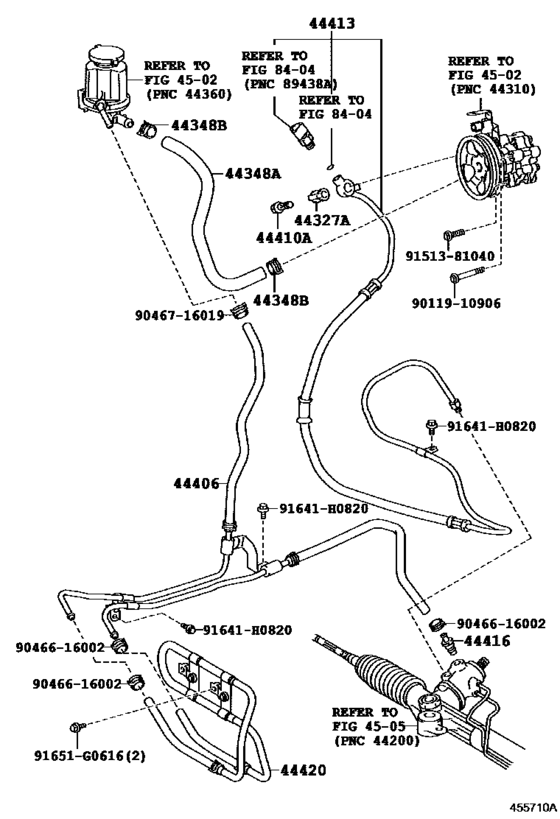

Power Steering Tube ([11.2010 - ] (1011- )RHD) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2016
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2010
- To
- 08.2016
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44327A
|
44327A
44327-30040 Gasket, Pressure Port, No.1[11.2010 - 08.2016] GSJ15..ARL |
44327-30040 |
from US $1.88 |
||
|
44348A
|
44348A
44348-60430 Hose, Oil Reservoir To Pump, No.1OIL RESERVOIR TO PUMP, NO.1 [11.2010 - 08.2016] GSJ15..ARL |
44348-60430 |
from US $36.25 |
||
|
44348B
|
44348B
90467-21010 Clip(For Ventilation Hose No.2)[11.2010 - 08.2016] GSJ15..ARL |
90467-21010 |
from US $2.47 |
||
|
44406
|
44406
44406-35040 Tube Sub-Assy, Return[11.2010 - 08.2016] GSJ15..ARL |
44406-35040 |
US $118.08 |
||
|
44410A
|
44410A
90401-16034 Bolt, Union(For Pressure Feed Tube)[11.2010 - 08.2016] GSJ15..ARL |
90401-16034 |
from US $6.81 |
||
|
44413
|
44413
44413-35030 Tube, Pressure Feed, No.1[11.2010 - 08.2016] GSJ15..ARL |
44413-35030 |
US $168.90 |
||
|
44416
|
44416
44416-60450 Tube, Return(For Steering Gear Outlet)RETURN(FOR STEERING GEAR OUTLET) [11.2010 - 08.2016] GSJ15..ARL |
44416-60450 |
US $10.75 |
||
|
44420
|
44420
44420-35210 Cooler Assy, Oil[11.2010 - 08.2016] GSJ15..ARL |
44420-35210 |
US $127.92 |
||
|
91641H0820
|
91641H0820
91641-H0820 Bolt |
91641-H0820 |
from US $0.80 |
||
|
91651G0616
|
91651G0616
91651-G0616 BOLT WWASHER |
91651-G0616 |
US $1.43 |
||
|
9011910906
|
9011910906
90119-10906 New Genuine Part |
90119-10906 |
US $3.03 |
||
|
9046616002
|
9046616002
90466-16002 Clamp, Hose(For Oil Cooler) |
90466-16002 |
from US $3.12 |
||
|
9046716019
|
9046716019
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.34 |
||
|
9151381040
|
9151381040
91513-81040 New Genuine Part |
91513-81040 |
US $0.73 |
