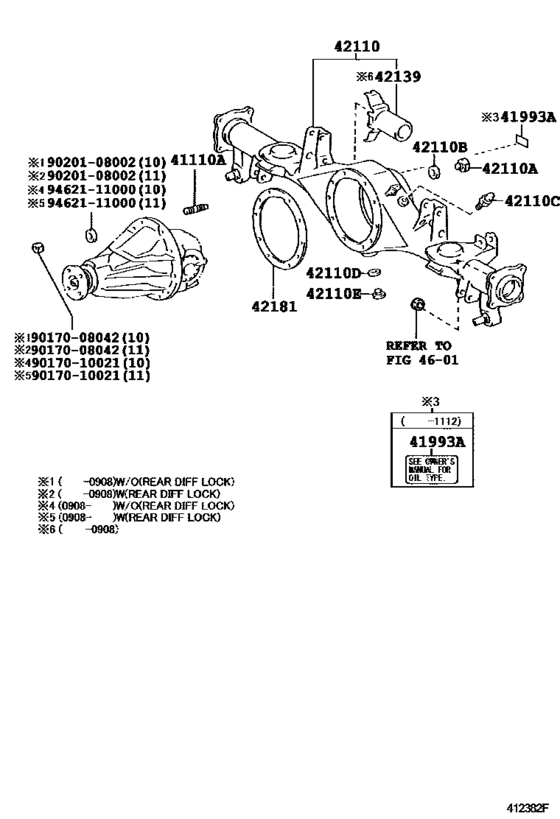

Rear Axle Housing & Differential ([07.2007 - ] (0707- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2016
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2010
- To
- 08.2016
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41110A
|
41110A
90116-10074 Bolt, Stud (For Power Take-Off Case)[11.2010 - 08.2016] GSJ15..ARL S=16 & 12.5,L=40.5,DIFFERENTIAL LOCK-WITH |
90116-10074 |
from US $0.87 |
||
|
41110A
|
41110A
90116-10231 Bolt, No.1 (For Rear Differential Carrier Set)NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) [11.2010 - 08.2016] GSJ15..ARL S=22 & 12.5,L=37.5,DIFFERENTIAL LOCK-WITH |
90116-10231 |
US $4.84 |
||
|
41110A
|
41110A
90116-10232 Bolt, No.1 (For Rear Differential Carrier Set)NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) [11.2010 - 08.2016] GSJ15..ARL S=31 & 12.5,L=38,DIFFERENTIAL LOCK-WITH |
90116-10232 |
from US $1.05 |
||
|
41993A
|
41993A
41993-34010 Caution Plate, Rear Differential[11.2010 - 12.2011] GSJ15 |
41993-34010 |
US $2.45 |
||
|
42110
|
42110
42110-60A90 Housing Assy, Rear AxleREAR AXLE [11.2010 - 04.2013] GSJ15..ATM..(ARL,GCC) |
42110-60A90 |
US $649.38 |
||
| replacement | |||||
|
42110
|
42110
42110-60A91 Housing Assy, Rear Axle[11.2010 - 04.2013] GSJ15..ATM..(ARL,GCC) |
42110-60A91 |
from US $663.23 |
||
|
42110
|
42110
42110-60A91 Housing Assy, Rear Axle[05.2013 - 08.2016] GSJ15..ARL |
42110-60A91 |
from US $663.23 |
||
|
42110
|
42110
42110-60B30 Housing Assy, Rear AxleREAR AXLE [11.2010 - 04.2013] GSJ15..MTM..GCC;GSJ15..CHI,GEN,SA; GSJ15..ATM..(ARL,GCC) DIFFERENTIAL LOCK-WITH |
42110-60B30 |
US $780.42 |
||
| replacement | |||||
|
42110
|
42110
42110-60B31 Housing Assy, Rear Axle[11.2010 - 04.2013] GSJ15..MTM..GCC;GSJ15..CHI,GEN,SA; GSJ15..ATM..(ARL,GCC) DIFFERENTIAL LOCK-WITH |
42110-60B31 |
from US $573.08 |
||
|
42110
|
42110
42110-60B31 Housing Assy, Rear Axle[05.2013 - 08.2016] GSJ15..ARL DIFFERENTIAL LOCK-WITH |
42110-60B31 |
from US $573.08 |
||
|
42110A
|
42110A
90341-18006 Plug (No magnet)[11.2010 - 08.2016] GSJ15..ARL |
90341-18006 |
from US $3.23 |
||
|
42110B
|
42110B
12157-10010 Gasket (For Drain Plug)[11.2010 - 08.2016] GSJ15..ARL |
12157-10010 |
from US $0.72 |
||
|
42110C
|
42110C
90930-03031 Plug, Breather(For Parking Cover)[11.2010 - 08.2016] GSJ15..ARL |
90930-03031 |
from US $6.18 |
||
|
42110D
|
42110D
12157-10010 Gasket (For Drain Plug)[11.2010 - 08.2016] GSJ15..ARL |
12157-10010 |
from US $0.72 |
||
|
42110E
|
42110E
90341-18057 Drain Plug (with Magnet)[11.2010 - 08.2016] GSJ15..ARL |
90341-18057 |
from US $6.27 |
||
|
42181
|
42181
42181-60140 Gasket, Rear Differential CarrierREAR DIFFERENTIAL CARRIER [11.2010 - 08.2016] GSJ15..ARL |
42181-60140 |
from US $5.47 |
||
|
42181
|
42181
42181-60150 Gasket, Rear Differential CarrierREAR DIFFERENTIAL CARRIER [11.2010 - 08.2016] GSJ15..ARL DIFFERENTIAL LOCK-WITH |
42181-60150 |
from US $5.70 |
||
|
9017008042
|
9017008042
90170-08042 Nut, Hexagon(For Rear Differential Carrier Set) |
90170-08042 |
from US $0.61 |
||
|
9017010021
|
9017010021
90170-10021 Nut(For Steering Center Arm) |
90170-10021 |
from US $0.61 |
||
|
9020108002
|
9020108002
90201-08002 Washer(For Front Wheel Cylinder) |
90201-08002 |
from US $1.39 |
||
|
9462111000
|
9462111000
94621-11000 Washer, Spring(For Steering Center Arm) |
94621-11000 |
from US $1.01 |
||
