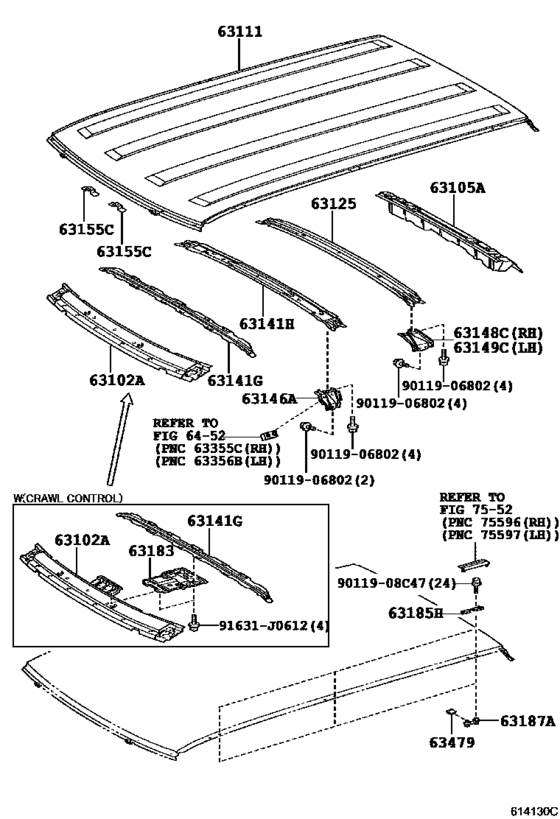

Roof Panel & Back Panel ([07.2007 - ] (0707- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2016
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2010
- To
- 08.2016
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63102A
|
63102A
63102-35050 Panel Sub-Assy, Windshield HeaderWINDSHIELD HEADER [11.2010 - 08.2016] GSJ15..ARL |
63102-35050 |
US $96.10 |
||
|
63102A
|
63102A
63102-35080
Panel Sub-Assy, Windshield Header
[08.2012 - 08.2016] GSJ15..ARL VSC-WITH(A-TRC & CRAWL CONTROL) |
63102-35080 |
— | ||
|
63105A
|
63105A
63105-35082 Frame Sub-Assy, Back Door OpeningBACK DOOR OPENING [11.2010 - 08.2016] GSJ15..ARL |
63105-35082 |
US $96.10 |
||
|
63111
|
63111
63111-35280 Panel, RoofROOF [11.2010 - 08.2016] GSJ15..ARL |
63111-35280 |
from US $673.30 |
||
|
63125
|
63125
63125-35030 Reinforcement, Roof Panel, No.2ROOF PANEL, NO.2 [11.2010 - 08.2016] GSJ15..ARL |
63125-35030 |
US $59.55 |
||
|
63141G
|
63141G
63104-35020 Reinforcement, Roof Panel, No.1[08.2012 - 08.2016] GSJ15..ARL VSC-WITH(A-TRC & CRAWL CONTROL) |
63104-35020 |
US $34.36 |
||
|
63141G
|
63141G
63141-35050 Reinforcement, Roof Panel, No.1ROOF PANEL, NO.1 [11.2010 - 08.2016] GSJ15..ARL |
63141-35050 |
US $30.87 |
||
|
63141H
|
63141H
63103-35020 Reinforcement, Roof Panel, CenterROOF PANEL, CENTER [11.2010 - 08.2016] GSJ15..ARL |
63103-35020 |
US $84.45 |
||
|
63146A
|
63146A
63146-35010 Bracket, Roof Panel Reinforcement, No.1ROOF PANEL REINFORCEMENT, NO.1 [11.2010 - 08.2016] GSJ15..ARL |
63146-35010 |
US $18.05 |
||
|
63148C
|
63148C
63148-35010 Reinforcement, Roof Panel Side, RhROOF PANEL SIDE, RH [11.2010 - 08.2016] GSJ15..ARL |
63148-35010 |
US $18.35 |
||
|
63149C
|
63149C
63149-35010 Reinforcement, Roof Panel Side, LhROOF PANEL SIDE, LH [11.2010 - 08.2016] GSJ15..ARL |
63149-35010 |
US $18.35 |
||
|
63155C
|
63155C
63155-35010 Retainer, Roof Panel SupportROOF PANEL SUPPORT [11.2010 - 08.2016] GSJ15..ARL |
63155-35010 |
US $2.80 |
||
|
63183
|
63183
63183-35010 Bracket, Roof Console, Front[08.2012 - 08.2016] GSJ15..ARL OFF ROAD PACKAGE&DIFFERENTIAL LOCK-WITH&VSC-WITH(A-TRC & CRAWL CONTROL) |
63183-35010 |
US $42.22 |
||
|
63185H
|
63185H
63185-42020 Bracket, Roof Rack, Front Rh[11.2010 - 08.2016] GSJ15..ARL |
63185-42020 |
from US $2.36 |
||
|
63187A
|
63187A
63187-35020 Bracket, Roof Rack, Rear[11.2010 - 08.2016] GSJ15..ARL |
63187-35020 |
from US $3.23 |
||
|
63479
|
63479
63479-42010 Retainer, Roof Inner Rack[11.2010 - 08.2016] GSJ15..ARL |
63479-42010 |
US $1.97 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9011908C47
|
9011908C47
90119-08C47 BOLT WWASHER |
90119-08C47 |
from US $0.65 |
||
|
9011906802
|
9011906802
90119-06802 BOLT WWASHER |
90119-06802 |
US $1.08 |
