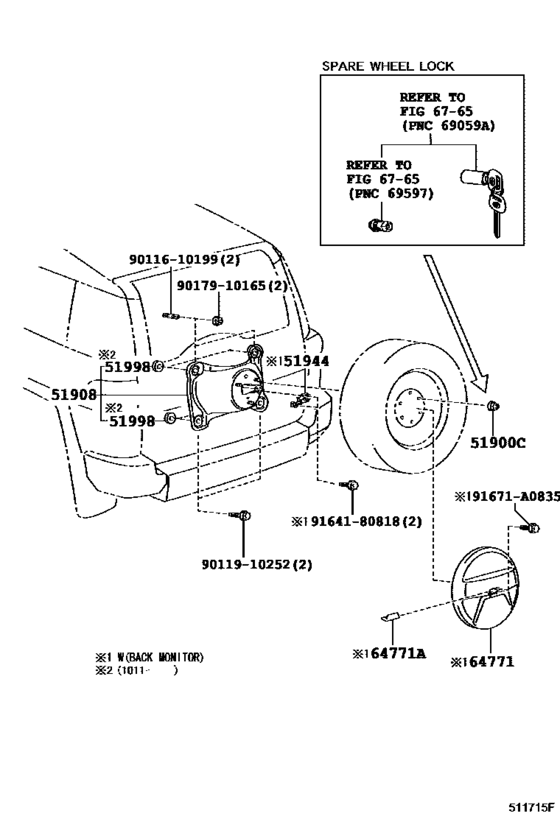

Spare Wheel Carrier ([07.2007 - ] (0707- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2016
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2010
- To
- 08.2016
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51900C
|
51900C
90942-01058 Wheel Nut[11.2010 - 08.2016] GSJ15..ARL FOR ALUMINUM WHEEL |
90942-01058 |
from US $5.23 |
||
|
51908
|
51908
51908-35032 Bracket Sub-Assy, Spare Wheel Carrier[11.2010 - 08.2013] GSJ15..ARL |
51908-35032 |
from US $124.93 |
||
|
51908
|
51908
51908-35040 Bracket Sub-Assy, Spare Wheel CarrierSPARE WHEEL CARRIER [11.2010 - 08.2013] GSJ15..ARL CONVENIENCE PACKAGE&BACK MONITOR-WITH |
51908-35040 |
from US $132.84 |
||
|
51944
|
51944
51944-35040 Bracket, Spare Wheel Carrier, No.2SPARE WHEEL CARRIER, NO.2 [11.2010 - 08.2013] GSJ15..ARL CONVENIENCE PACKAGE&BACK MONITOR-WITH |
51944-35040 |
from US $18.26 |
||
|
51998
|
51998
51998-35020 Pad, Spare Wheel Bracket[11.2010 - 08.2016] GSJ15..ARL |
51998-35020 |
US $1.08 |
||
|
64771
|
64771
64771-35032 Cover, Spare Wheel[11.2010 - 08.2013] GSJ15..ARL CONVENIENCE PACKAGE&BACK MONITOR-WITH |
64771-35032 |
from US $207.71 |
||
|
64771A
|
64771A
64773-35012 Cover, Spare Wheel[11.2010 - 08.2013] GSJ15..ARL CONVENIENCE PACKAGE&BACK MONITOR-WITH |
64773-35012 |
from US $9.31 |
||
|
91671A0835
|
91671A0835
91671-A0835 BOLT FLANGE |
91671-A0835 |
from US $0.91 |
||
|
9011610199
|
9011610199
90116-10199 BOLT STUD |
90116-10199 |
US $2.51 |
||
|
9011910252
|
9011910252
90119-10252 BOLT |
90119-10252 |
US $4.84 |
||
|
9017910165
|
9017910165
90179-10165 NUT |
90179-10165 |
from US $0.95 |
||
|
9164180818
|
9164180818
91641-80818 BOLT WWASHER |
91641-80818 |
from US $0.76 |
