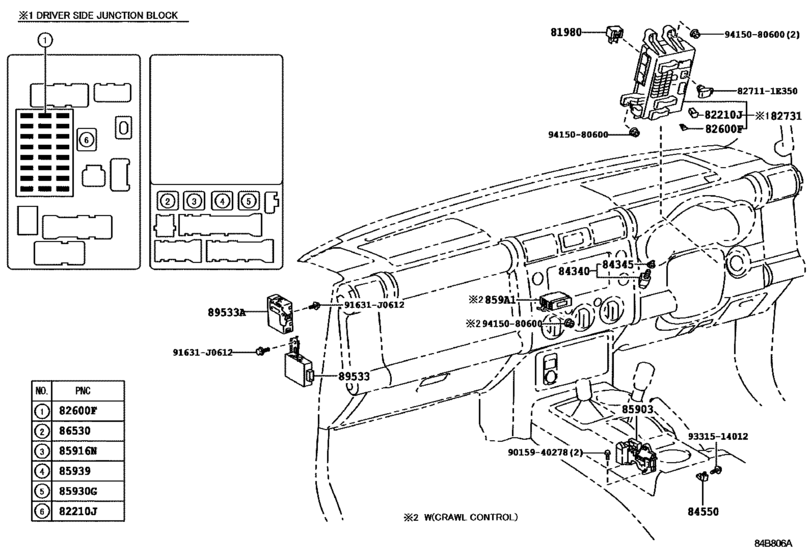

Switch & Relay & Computer ([11.2010 - ] COWL (1011- )RHD) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2016
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2010
- To
- 08.2016
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
859A1
|
859A1
859A1-35010 Computer, Driving Support Switch Control[08.2012 - 08.2016] GSJ15..ARL OFF ROAD PACKAGE |
859A1-35010 |
US $176.18 |
||
|
81980
|
81980
81980-50030 Flasher Assy, Turn Signal[11.2010 - 08.2016] GSJ15..ARL |
81980-50030 |
from US $52.69 |
||
|
82210J
|
82210J
90982-08202 Fusible Link[11.2010 -] GSJ15 60A,TERMINAL:MALE |
90982-08202 |
US $12.54 |
||
|
82210J
|
82210J
90982-08274 Fusible Link[11.2010 -] GSJ15 120A,TERMINAL:MALE |
90982-08274 |
from US $8.60 |
||
|
82210J
|
82210J
90982-08280 Fusible Link[11.2010 -] GSJ15 30A,TERMINAL:FEMALE,INSTRUMENT PANEL J/B |
90982-08280 |
from US $3.78 |
||
|
82210J
|
82210J
90982-08281 Fusible Link[11.2010 -] GSJ15 40A,TERMINAL:FEMALE |
90982-08281 |
from US $10.57 |
||
|
82210J
|
82210J
90982-08282 Fusible Link[11.2010 -] GSJ15 50A,TERMINAL:FEMALE |
90982-08282 |
US $7.88 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[11.2010 -] GSJ15 30A,TERMINAL:FEMALE,ENGINE ROOM R/B |
90982-08283 |
from US $1.35 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[11.2010 -] GSJ15 7.5A,MINI FUSE |
90982-09008 |
from US $0.87 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[11.2010 -] GSJ15 10A,MINI FUSE |
90982-09009 |
US $1.25 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[11.2010 -] GSJ15 15A,MINI FUSE |
90982-09010 |
from US $0.48 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[11.2010 -] GSJ15 20A,MINI FUSE |
90982-09011 |
from US $0.91 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[11.2010 -] GSJ15 30A,MINI FUSE |
90982-09013 |
from US $0.91 |
||
|
82731
|
82731
82730-35421
Block, Driver Side Junction
[11.2010 - 08.2011] GSJ15..RHD |
82730-35421 |
— | ||
|
82731
|
82731
82730-35422
Block, Driver Side Junction
[08.2011 - 08.2012] GSJ15..RHD |
82730-35422 |
— | ||
|
82731
|
82731
82730-35460
Block, Driver Side Junction
[08.2012 - 08.2014] GSJ15..RHD |
82730-35460 |
— | ||
|
82731
|
82731
82730-35461
Block, Driver Side Junction
[08.2014 - 08.2016] GSJ15..ARL |
82730-35461 |
— | ||
|
84340
|
84340
84340-19025
Switch Assy, Stop Lamp
[09.2011 - 05.2017] GSJ15..ATM |
84340-19025 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-19026 SWITCH ASSY, STOP[09.2011 - 05.2017] GSJ15..ATM |
84340-19026 |
from US $19.86 |
||
|
84340
|
84340
84340-69025 Switch Assy, Stop Lamp[11.2010 - 09.2011] GSJ15..ATM |
84340-69025 |
from US $24.85 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[11.2010 - 08.2016] GSJ15..ARL |
84345-51010 |
from US $3.36 |
||
|
84550
|
84550
84550-33010 Switch Assy, Parking Brake[11.2010 - 08.2016] GSJ15..ARL |
84550-33010 |
from US $20.33 |
||
|
85903
|
85903
85903-60010 Computer Sub-Assy, Shift Lock Control[11.2010 - 08.2016] GSJ15..ARL |
85903-60010 |
US $172.97 |
||
|
85916N
|
85916N
90987-02027 Relay[11.2010 - 08.2016] GSJ15..ARL |
90987-02027 |
from US $47.82 |
||
|
85930G
|
85930G
90987-02027 Relay[11.2010 - 08.2016] GSJ15..ARL |
90987-02027 |
from US $47.82 |
||
|
85939
|
85939
90987-02027 Relay[11.2010 - 08.2016] GSJ15..ARL |
90987-02027 |
from US $47.82 |
||
|
86530
|
86530
90987-02027 Relay[11.2010 - 08.2016] GSJ15..ARL |
90987-02027 |
from US $47.82 |
||
|
89533
|
89533
89533-35280 Computer, 4 Wheel Drive Control[11.2010 - 08.2016] GSJ15..ARL |
89533-35280 |
US $151.42 |
||
|
89533A
|
89533A
89533-35260 Computer, 4 Wheel Drive Control, No.2FOUR WHEEL DRIVE CONTROL [11.2010 - 08.2016] GSJ15..ARL DIFFERENTIAL LOCK-WITH |
89533-35260 |
US $146.76 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
827111E350
|
827111E350
82711-1E350 Clamp, Wiring Harness |
82711-1E350 |
from US $2.03 |
||
|
9015940278
|
9015940278
90159-40278 New Genuine Part |
90159-40278 |
US $0.73 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.76 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.65 |
||
