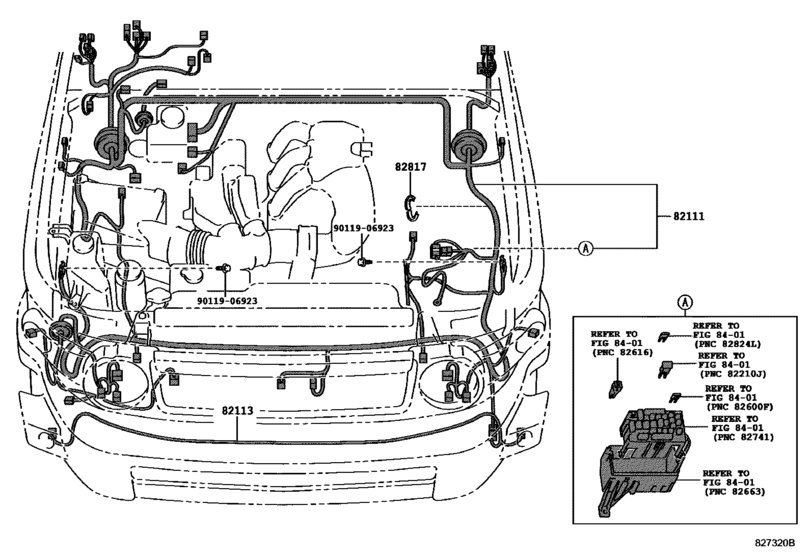

Wiring & Clamp ([11.2010 - ] ENGINE ROOM (1011- )RHD) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2016
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2010
- To
- 08.2016
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111
|
82111
82111-35J70
Wire, Engine Room Main
[11.2010 - 08.2012] GSJ15..RHD |
82111-35J70 |
— | ||
|
82111
|
82111
82111-35N80
Wire, Engine Room Main
[08.2012 - 08.2014] GSJ15..RHD |
82111-35N80 |
— | ||
|
82111
|
82111
82111-35N81
Wire, Engine Room Main
[08.2014 - 08.2016] GSJ15..ARL |
82111-35N81 |
— | ||
|
82113
|
82113
82113-35010 Wire, Engine Room, No.3[08.2014 - 08.2016] GSJ15..ARL; GSJ15..ARL FRONT FOG LAMP-WITHOUT |
82113-35010 |
US $42.38 |
||
|
82817
|
82817
82817-32840 Protector, Wiring Harness, No.1[11.2010 - 08.2016] GSJ15..ARL |
82817-32840 |
US $2.62 |
||
|
9011906923
|
9011906923
90119-06923 BOLT WWASHER |
90119-06923 |
US $1.08 |
