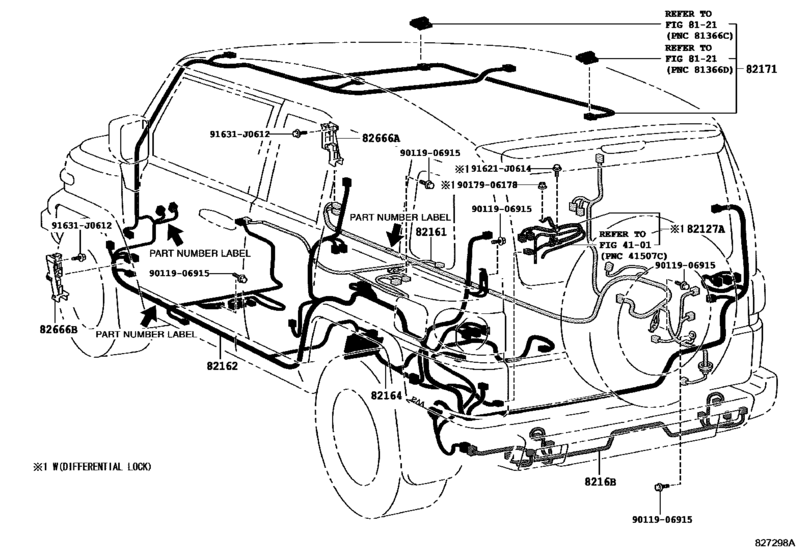

Wiring & Clamp ([11.2010 - 08.2012] FLOOR,FRAME & ROOF (1011-1208)) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2016
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- From
- 11.2010
- To
- 08.2016
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
8216B
|
8216B
8216B-35030
Wire, Floor No.8
[11.2010 - 08.2012] GSJ15..ARL |
8216B-35030 |
— | ||
|
8216B
|
8216B
8216B-35050
Wire, Floor No.8
[11.2010 - 08.2012] GSJ15..ARL CLEARANCE & BACK SONAR-WITH(BACK SONAR) |
8216B-35050 |
— | ||
|
8216B
|
8216B
8216B-35140
Wire, Floor No.8
[08.2012 - 08.2014] GSJ15..ARL |
8216B-35140 |
— | ||
|
8216B
|
8216B
8216B-35160
Wire, Floor No.8
[08.2012 - 08.2014] GSJ15..ARL CLEARANCE & BACK SONAR-WITH(BACK SONAR) |
8216B-35160 |
— | ||
|
82127A
|
82127A
82127-35270 Wire, Differential (To Wire Frame)[11.2010 - 08.2011] GSJ15..MTM..GCC;GSJ15..CHI,GEN,SA; GSJ15..ATM..(ARL,GCC) DIFFERENTIAL LOCK-WITH |
82127-35270 |
US $66.83 |
||
|
82127A
|
82127A
82127-35271 Wire, Differential (To Wire Frame)[08.2011 - 08.2016] GSJ15..ARL DIFFERENTIAL LOCK-WITH |
82127-35271 |
US $58.53 |
||
|
82161
|
82161
82161-35C60 Wire, Floor[11.2010 - 08.2011] GSJ15..ARL,SA; GSJ15..GEN..RHD SRS AIR BAG-WITH(CURTAIN SHIELD) |
82161-35C60 |
US $297.02 |
||
|
82161
|
82161
82161-35E00 Wire, Floor[08.2011 - 08.2012] GSJ15..ARL,SA; GSJ15..GEN..RHD SRS AIR BAG-WITH(CURTAIN SHIELD) |
82161-35E00 |
US $297.02 |
||
|
82161
|
82161
82161-35F00 Wire, Floor[08.2012 - 08.2016] GSJ15..ARL |
82161-35F00 |
US $224.22 |
||
|
82162
|
82162
82162-35E30 Wire, Floor, No.2[11.2010 - 08.2012] GSJ15..ARL |
82162-35E30 |
US $920.19 |
||
|
82162
|
82162
82162-35E40 Wire, Floor, No.2[11.2010 - 08.2012] GSJ15..SA; GSJ15..ARL DIFFERENTIAL LOCK-WITH; GSJ15..GEN..RHD SRS AIR BAG-WITH(CURTAIN SHIELD) |
82162-35E40 |
US $991.54 |
||
|
82162
|
82162
82162-35F80 Wire, Floor, No.2[08.2012 - 08.2014] GSJ15..ARL |
82162-35F80 |
US $716.35 |
||
|
82162
|
82162
82162-35F81 Wire, Floor, No.2[08.2014 - 08.2016] GSJ15..ARL |
82162-35F81 |
US $650.83 |
||
|
82162
|
82162
82162-35F90 Wire, Floor, No.2[08.2012 - 08.2014] GSJ15..SA; GSJ15..ARL DIFFERENTIAL LOCK-WITH |
82162-35F90 |
US $765.86 |
||
|
82162
|
82162
82162-35F91 Wire, Floor, No.2[08.2014 - 08.2016] GSJ15..ARL DIFFERENTIAL LOCK-WITH |
82162-35F91 |
US $695.97 |
||
|
82164
|
82164
82164-35A20 Wire, Frame[11.2010 - 08.2012] GSJ15..ATM..(ARL,GCC) |
82164-35A20 |
US $116.48 |
||
|
82164
|
82164
82164-35A30 Wire, Frame[11.2010 - 08.2012] GSJ15..MTM..GCC;GSJ15..CHI,GEN,SA; GSJ15..ATM..(ARL,GCC) DIFFERENTIAL LOCK-WITH |
82164-35A30 |
US $138.32 |
||
|
82164
|
82164
82164-35A80 Wire, Frame[08.2012 - 08.2016] GSJ15..ARL |
82164-35A80 |
US $87.36 |
||
|
82164
|
82164
82164-35A90 Wire, Frame[08.2012 - 08.2016] GSJ15..ARL DIFFERENTIAL LOCK-WITH |
82164-35A90 |
US $103.38 |
||
|
82171
|
82171
82171-35B90
Wire, Roof, No.1
[11.2010 - 08.2012] GSJ15..ARL,SA; GSJ15..GEN..RHD BACK MONITOR-WITH |
82171-35B90 |
— | ||
|
82171
|
82171
82171-35C90
Wire, Roof, No.1
[08.2012 - 08.2016] GSJ15..ARL |
82171-35C90 |
— | ||
|
82171
|
82171
82171-35D00
Wire, Roof, No.1
[08.2012 - 08.2013] GSJ15..ARL VSC-WITH(A-TRC & CRAWL CONTROL)&BACK MONITOR-WITH |
82171-35D00 |
— | ||
|
82666A
|
82666A
82666-35430 Holder, Connector No.2[11.2010 - 08.2016] GSJ15..ARL |
82666-35430 |
US $30.28 |
||
|
82666B
|
82666B
82666-35440 Holder, Connector No.3[11.2010 - 08.2016] GSJ15..ARL |
82666-35440 |
US $29.99 |
||
|
91621J0614
|
91621J0614
91621-J0614 BOLT W-WASHER |
91621-J0614 |
from US $0.87 |
||
|
91631J0612
|
91631J0612
91631-J0612 BRACKET |
91631-J0612 |
from US $0.70 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.76 |
