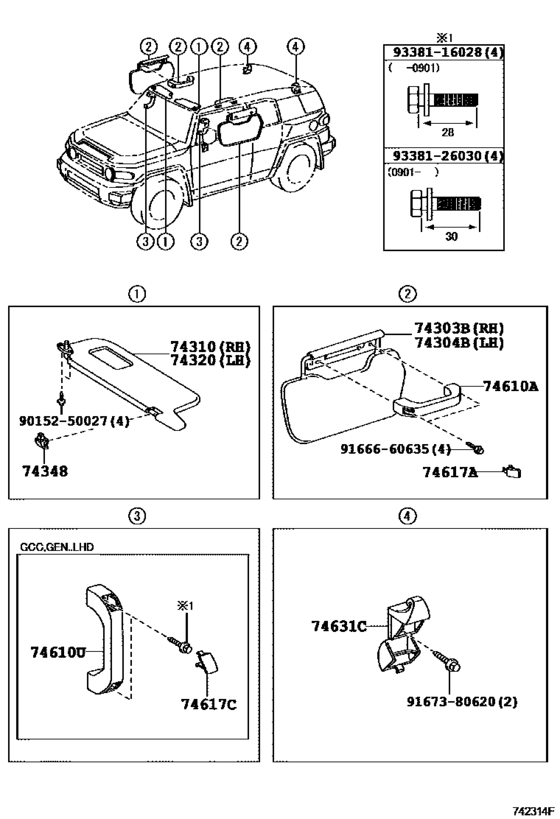

Armrest & Visor ([07.2007 - ] VISOR & ASSIST GRIP (0707- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 11.2010
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74303B
|
74303B
74303-35020-B0 Visor Sub-Assy, RhRH [11.2010 -] GSJ15..CHI,GCC,GEN,SA LT.GRAY,TRIM1# |
74303-35020-B0 |
from US $28.71 |
||
|
74304B
|
74304B
74304-35020-B0 Visor Sub-Assy, LhLH [11.2010 -] GSJ15..CHI,GCC,GEN,SA LT.GRAY,TRIM1# |
74304-35020-B0 |
US $30.41 |
||
|
74310
|
74310
74310-35B40-B0
Visor Assy, Rh
[11.2010 - 06.2012] GSJ15..RHD LT.GRAY,TRIM1# |
74310-35B40-B0 |
— | ||
|
74310
|
74310
74310-35B41-B0
Visor Assy, Rh
[06.2012 -] GSJ15..(GEN,SA)..RHD LT.GRAY,TRIM1# |
74310-35B41-B0 |
— | ||
|
74320
|
74320
74320-35B30-B0
Visor Assy, Lh
[11.2010 - 06.2012] GSJ15..RHD LT.GRAY,TRIM1# |
74320-35B30-B0 |
— | ||
|
74320
|
74320
74320-35B31-B0 Visor Assy, Lh[06.2012 -] GSJ15..(GEN,SA)..RHD LT.GRAY,TRIM1# |
74320-35B31-B0 |
US $39.02 |
||
|
74348
|
74348
74348-12040-B0 Holder, Visor[11.2010 -] GSJ15..CHI,GCC,GEN,SA LT.GRAY,TRIM1# |
74348-12040-B0 |
from US $5.91 |
||
|
74610A
|
74610A
74603-35010-B0 Grip Sub-Assy, AssistASSIST [11.2010 -] GSJ15..CHI,GCC,GEN,SA LT.GRAY,TRIM1# |
74603-35010-B0 |
US $21.67 |
||
|
74617A
|
74617A
74617-35010-B0 Plug, Assist Grip[11.2010 -] GSJ15..CHI,GCC,GEN,SA LT.GRAY,TRIM1# |
74617-35010-B0 |
US $3.40 |
||
|
74631C
|
74631C
74631-35030-B1
Hook, Coat
[11.2010 -] GSJ15..CHI,GCC,GEN,SA LT.GRAY,TRIM1# |
74631-35030-B1 |
— | ||
| replacement | |||||
|
74631C
|
74631C
74631-35031-B1 Hook, Coat[11.2010 -] GSJ15..CHI,GCC,GEN,SA LT.GRAY,TRIM1# |
74631-35031-B1 |
US $6.81 |
||
|
9015250027
|
9015250027
90152-50027 SCREW CROSSRECESS |
90152-50027 |
US $1.97 |
||
|
9166660635
|
9166660635
91666-60635 New Genuine Part |
91666-60635 |
US $1.61 |
||
|
9167380620
|
9167380620
91673-80620 Bolt |
91673-80620 |
US $1.08 |
||
|
9338116028
|
9338116028
93381-16028 SCREW |
93381-16028 |
US $1.43 |
||
|
9338126030
|
9338126030
93381-26030 SCREW WWASHER |
93381-26030 |
US $1.25 |
||
