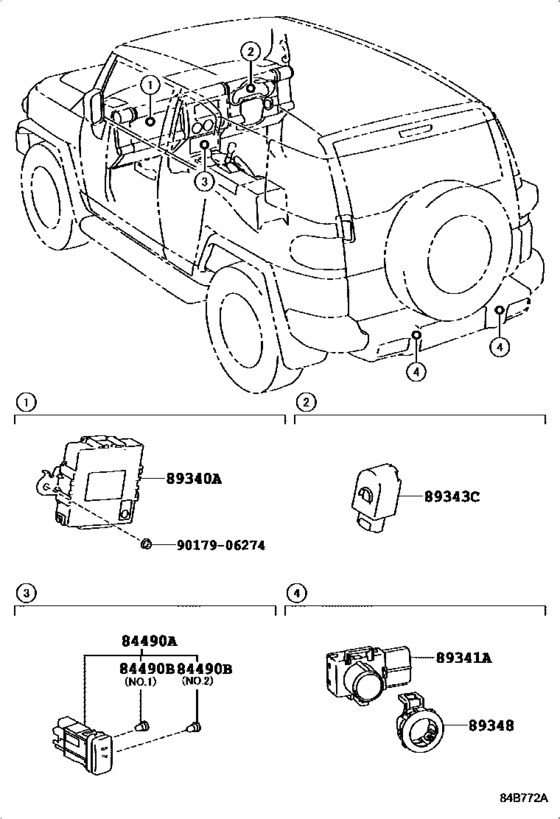

Clearance & Back Sonar ([11.2010 - ] (1011- )RHD) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 11.2010
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84490A
|
84490A
84490-35010 Switch Assy, Back Sonar Or Clearance SonarBACK SONAR OR CLEARANCE SONAR [11.2010 - 01.2017] GSJ15..CHI,GEN,SA; GSJ15..ATM..GCC CLEARANCE & BACK SONAR-WITH |
84490-35010 |
US $56.61 |
||
|
84490A
|
84490A
84490-35040 Switch Assy, Back Sonar Or Clearance Sonar[01.2017 -] GSJ15..GEN,SA; GSJ15..ATM..GCC CLEARANCE & BACK SONAR-WITH |
84490-35040 |
US $40.77 |
||
|
84490B
|
84490B
84999-10310 Bulb, Air Conditioner Control[11.2010 - 01.2017] GSJ15..CHI,GEN,SA 14V 0.91W,NO.1; GSJ15..ATM..GCC 14V 0.91W,CLEARANCE & BACK SONAR-WITH,NO.1 |
84999-10310 |
from US $2.85 |
||
|
84490B
|
84490B
90010-01089 Bulb, Lane Monitoring Main Switch[01.2017 -] GSJ15..GEN,SA 14V 0.63W,W(CAP),NO.1; GSJ15..ATM..GCC 14V 0.63W,W(CAP),CLEARANCE & BACK SONAR-WITH,NO.1 |
90010-01089 |
US $6.45 |
||
|
84490B
|
84490B
90010-01127 Bulb(For Back Sonar Switch)[11.2010 -] GSJ15..CHI,GEN,SA 14V 0.91W,W(CAP),NO.2; GSJ15..ATM..GCC 14V 0.91W,W(CAP),CLEARANCE & BACK SONAR-WITH,NO.2 |
90010-01127 |
US $4.37 |
||
|
89340A
|
89340A
89340-35040 Computer Assy, Clearance Warning[11.2010 - 07.2016] GSJ15..(GEN,SA)..RHD |
89340-35040 |
US $377.10 |
||
| replacement | |||||
|
89340A
|
89340A
89340-35041 Computer Assy, Clearance Warning[11.2010 - 07.2016] GSJ15..(GEN,SA)..RHD |
89340-35041 |
US $342.16 |
||
|
89340A
|
89340A
89340-35041 Computer Assy, Clearance Warning[08.2016 -] GSJ15..(GEN,SA)..RHD |
89340-35041 |
US $342.16 |
||
|
89341A
|
89341A
89341-33130-C0 Sensor, Ultrasonic, No.1ULTRASONIC, NO.1 [11.2010 -] GSJ15..CHI,GEN,SA DUMMY-MAT BLACK; GSJ15..ATM..GCC CLEARANCE & BACK SONAR-WITH,DUMMY-MAT BLACK |
89341-33130-C0 |
from US $115.37 |
||
|
89343C
|
89343C
89747-51010 Buzzer, Clearance Warning, No.1[11.2010 - 04.2015] GSJ15..CHI,GEN,SA; GSJ15..ATM..GCC CLEARANCE & BACK SONAR-WITH |
89747-51010 |
US $34.73 |
||
|
89343C
|
89343C
89747-58010 Buzzer Assy, Vacuum Warning[05.2015 -] GSJ15..CHI,GEN,SA; GSJ15..ATM..GCC CLEARANCE & BACK SONAR-WITH |
89747-58010 |
US $38.23 |
||
|
89348
|
89348
89348-33030-C0 Retainer, Ultrasonic Sensor, No.1ULTRASONIC SENSOR, NO.1 [11.2010 -] GSJ15..CHI,GEN,SA DUMMY-MAT BLACK; GSJ15..ATM..GCC CLEARANCE & BACK SONAR-WITH,DUMMY-MAT BLACK |
89348-33030-C0 |
from US $1.75 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
