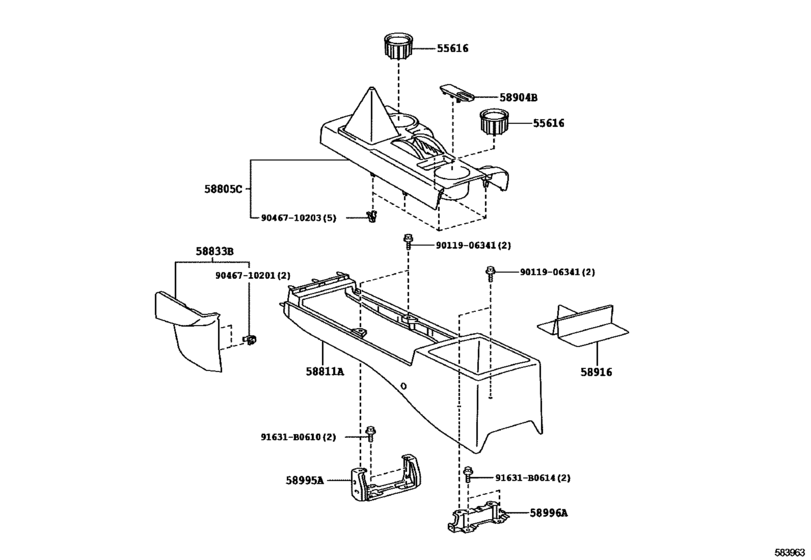

Console Box & Bracket ([11.2010 - ] (1011- )RHD) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 11.2010
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55616
|
55616
55616-35010 Damper, Instrument Panel Cup HolderINSTRUMENT PANEL CUP HOLDER [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
55616-35010 |
from US $18.65 |
||
|
58805C
|
58805C
58805-35130-B0 Panel Sub-Assy, Console, Upper Rear[11.2010 -] GSJ15..(GEN,SA)..RHD DK.GRAY,TRIM1# |
58805-35130-B0 |
US $117.94 |
||
|
58811A
|
58811A
58802-35250-B0 Box, Console, Front[11.2010 -] GSJ15..(GEN,SA)..RHD DK.GRAY,TRIM1# |
58802-35250-B0 |
US $171.81 |
||
|
58833B
|
58833B
58833-35070-B0 Garnish, Console Upper Panel, No.1[11.2010 -] GSJ15..(GEN,SA)..RHD DK.GRAY,TRIM1# |
58833-35070-B0 |
US $22.28 |
||
|
58904B
|
58904B
58904-35060-B0 Cover Sub-Assy, Parking Brake Hole[11.2010 -] GSJ15..(GEN,SA)..RHD DK.GRAY,TRIM1# |
58904-35060-B0 |
US $8.56 |
||
|
58916
|
58916
58916-35050 Mat, Box BottomBOX BOTTOM [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
58916-35050 |
US $30.23 |
||
|
58995A
|
58995A
58995-60060 Bracket, Console Box Mounting, No.1[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
58995-60060 |
US $16.31 |
||
|
58996A
|
58996A
58996-60061
Bracket, Console Box Mounting, No.2
[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
58996-60061 |
— | ||
|
91631B0610
|
91631B0610
91631-B0610 BOLTWWASHER |
91631-B0610 |
from US $0.87 |
||
|
91631B0614
|
91631B0614
91631-B0614 BOLT WWASHER |
91631-B0614 |
from US $0.84 |
||
|
9011906341
|
9011906341
90119-06341 BOLT |
90119-06341 |
US $2.15 |
||
|
9046710201
|
9046710201
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing |
90467-10201 |
from US $0.87 |
||
|
9046710203
|
9046710203
90467-10203 Direct |
90467-10203 |
from US $0.64 |
