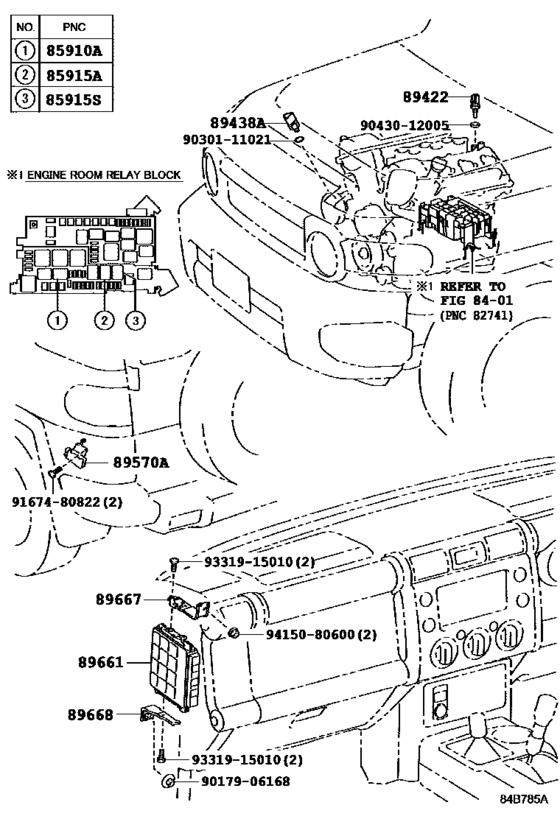

Electronic Fuel Injection System ([11.2010 - ] (1011- )RHD) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 11.2010
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90987-02027 Relay[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90987-02027 |
from US $47.82 |
||
|
85915A
|
85915A
90987-02027 Relay[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90987-02027 |
from US $47.82 |
||
|
85915S
|
85915S
90987-02027 Relay[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90987-02027 |
from US $47.82 |
||
|
89422
|
89422
89422-33030 Sensor, Water Temperature (For E.f.i.)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
89422-33030 |
from US $40.49 |
||
|
89438A
|
89438A
89448-34020 Switch, Power Steering Oil Pressure[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
89448-34020 |
from US $119.72 |
||
|
89570A
|
89570A
89570-35240 Computer Assy, Fuel Pump Control[11.2010 - 08.2012] GSJ15 |
89570-35240 |
US $234.12 |
||
|
89570A
|
89570A
89570-35260 Computer Assy, Fuel Pump Control[08.2012 -] GSJ15..CHI,GCC,GEN,SA |
89570-35260 |
from US $160.74 |
||
|
89661
|
89661
89661-35G90
Computer, Engine Control
[11.2010 - 08.2011] GSJ15..ATM..(GCC,GEN,SA); GSJ15..ARL FIJI SPEC; GSJ15..ARL PAPUA NEW GUINEA SPEC |
89661-35G90 |
— | ||
|
89661
|
89661
89661-35K30
Computer, Engine Control
[08.2011 - 08.2012] GSJ15..ATM..(GCC,GEN,SA); GSJ15..ARL FIJI SPEC; GSJ15..ARL PAPUA NEW GUINEA SPEC |
89661-35K30 |
— | ||
|
89661
|
89661
89661-35L00
Computer, Engine Control
[08.2012 -] GSJ15..ATM..(GEN,SA) |
89661-35L00 |
— | ||
|
89667
|
89667
89667-35140 Bracket, Engine Control Computer[11.2010 -] GSJ15..(GEN,SA)..RHD |
89667-35140 |
US $8.74 |
||
|
89668
|
89668
89668-35170 Bracket, Engine Control Computer, No.2ENGINE CONTROL COMPUTER, NO.2 [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
89668-35170 |
US $14.56 |
||
|
9017906168
|
9017906168
90179-06168 Nut & Washer Assy |
90179-06168 |
from US $0.97 |
||
|
9030111021
|
9030111021
90301-11021 RING O |
90301-11021 |
from US $2.11 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.67 |
||
|
9167480822
|
9167480822
91674-80822 BOLT FLANGE |
91674-80822 |
from US $0.78 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.65 |
