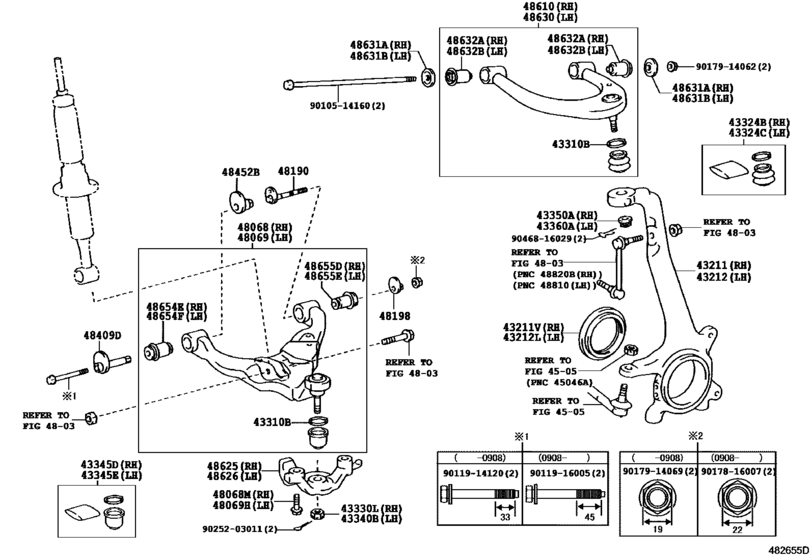

Front Axle Arm & Steering Knuckle ([07.2007 - ] (0707- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 11.2010
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43211-60200 Knuckle, Steering, RhSTEERING, RH [11.2010 - 05.2015] GSJ15 |
43211-60200 |
from US $332.98 |
||
|
43211
|
43211
43211-60240 Knuckle, Steering, Rh[05.2015 -] GSJ15..CHI,GCC,GEN,SA |
43211-60240 |
from US $308.24 |
||
|
43211V
|
43211V
90316-72001 Seal, Oil (For Steering Knuckle Rh)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90316-72001 |
from US $19.49 |
||
|
43212
|
43212
43212-60200 Knuckle, Steering, LhSTEERING, LH [11.2010 - 05.2015] GSJ15 |
43212-60200 |
from US $339.66 |
||
|
43212
|
43212
43212-60240 Knuckle, Steering, Lh[05.2015 -] GSJ15..CHI,GCC,GEN,SA |
43212-60240 |
from US $310.99 |
||
|
43212L
|
43212L
90316-72001 Seal, Oil (For Steering Knuckle Rh)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90316-72001 |
from US $19.49 |
||
|
43310B
|
43310B
90580-10001 Ring, Set (For Dust Cover)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90580-10001 |
US $1.79 |
||
|
43324B
|
43324B
43324-69085 Cover, Front Upper Ball Joint Dust[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
43324-69085 |
from US $7.30 |
||
|
43324C
|
43324C
43324-69085 Cover, Front Upper Ball Joint Dust[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
43324-69085 |
from US $7.30 |
||
|
43330L
|
43330L
90171-16050 Nut, Castle (For Front Lower Ball Joint Setting)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90171-16050 |
from US $2.79 |
||
|
43340B
|
43340B
90171-16050 Nut, Castle (For Front Lower Ball Joint Setting)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90171-16050 |
from US $2.79 |
||
|
43345D
|
43345D
43345-69025 Cover, Lower Ball Joint Dust, Rh[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
43345-69025 |
from US $19.11 |
||
|
43345E
|
43345E
43345-69025 Cover, Lower Ball Joint Dust, Rh[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
43345-69025 |
from US $19.11 |
||
|
43350A
|
43350A
90171-14011 Nut, Castle (For Front Lower Ball Joint Setting)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90171-14011 |
from US $1.16 |
||
|
43360A
|
43360A
90171-14011 Nut, Castle (For Front Lower Ball Joint Setting)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90171-14011 |
from US $1.16 |
||
|
48068
|
48068
48068-60040 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
48068-60040 |
from US $355.68 |
||
|
48068M
|
48068M
90105-16053 Bolt(For Front Suspension Lower Arm)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90105-16053 |
from US $2.53 |
||
|
48069
|
48069
48069-60040 Arm Sub-Assy, Front Suspension, Lower No.1 Lh[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
48069-60040 |
from US $355.68 |
||
|
48069H
|
48069H
90105-16053 Bolt(For Front Suspension Lower Arm)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90105-16053 |
from US $2.53 |
||
|
48190
|
48190
48190-60040
Cam Assy, Camber Adjust
[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
48190-60040 |
— | ||
| replacements | |||||
|
48190
|
48190
48190-60041 CAM ASSY CAMBER[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
48190-60041 |
from US $11.65 |
||
|
48190
|
48190
48198-60021 CAM CAMBER ADJUST[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
48198-60021 |
from US $11.15 |
||
|
48198
|
48198
48198-60020 Cam, Front Suspension Camber Adjust, No.2[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
48198-60020 |
from US $13.07 |
||
|
48409D
|
48409D
48409-60040 Cam Sub-Assy, Front Suspension Toe AdjustFRONT SUSPENSION TOE ADJUST [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
48409-60040 |
from US $12.54 |
||
|
48452B
|
48452B
48452-60020 Plate, Front Suspension Toe Adjust, No.2FRONT SUSPENSION TOE ADJUST, NO.2 [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
48452-60020 |
from US $14.33 |
||
|
48610
|
48610
48610-60070 Arm Assy, Front Suspension Upper, Rh[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
48610-60070 |
from US $235.20 |
||
|
48625
|
48625
48625-60010 Attachment, Front Lower Ball Joint, Rh[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
48625-60010 |
from US $55.61 |
||
|
48626
|
48626
48626-60010 Attachment, Front Lower Ball Joint, Lh[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
48626-60010 |
from US $57.13 |
||
|
48630
|
48630
48630-60040 Arm Assy, Front Suspension, Upper Lh[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
48630-60040 |
from US $235.20 |
||
|
48631A
|
48631A
90948-02177 Retainer, Cushion(For Front Suspension Upper Arm Rh)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90948-02177 |
from US $10.21 |
||
|
48631B
|
48631B
90948-02177 Retainer, Cushion(For Front Suspension Upper Arm Rh)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90948-02177 |
from US $10.21 |
||
|
48632A
|
48632A
48632-60040 Bush, Front Suspension Upper Arm, RH, LH[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
48632-60040 |
from US $22.68 |
||
|
48632B
|
48632B
48632-60040 Bush, Front Suspension Upper Arm, RH, LH[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
48632-60040 |
from US $22.68 |
||
|
48654E
|
48654E
48654-60050 Bush, Front Lower Arm, No.1[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
48654-60050 |
from US $30.07 |
||
|
48654F
|
48654F
48654-60050 Bush, Front Lower Arm, No.1[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
48654-60050 |
from US $30.07 |
||
|
48655D
|
48655D
48655-60050 Bush, Front Lower Arm, No.2[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
48655-60050 |
from US $39.98 |
||
|
48655E
|
48655E
48655-60050 Bush, Front Lower Arm, No.2[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
48655-60050 |
from US $39.98 |
||
|
9010514160
|
9010514160
90105-14160 Bolt(For Front Suspension Upper Arm Rh) |
90105-14160 |
from US $8.15 |
||
|
9011914120
|
9011914120
90119-14120 Bolt arm low front |
90119-14120 |
from US $4.43 |
||
|
9011916005
|
9011916005
90119-16005 BOLT WWASHER |
90119-16005 |
from US $5.66 |
||
|
9017816007
|
9017816007
90178-16007 Nut |
90178-16007 |
from US $1.25 |
||
|
9017914062
|
9017914062
90179-14062 Nut (For Steering Knuckle Rh) |
90179-14062 |
from US $1.27 |
||
|
9017914069
|
9017914069
90179-14069 Nut |
90179-14069 |
from US $1.10 |
||
|
9025203011
|
9025203011
90252-03011 PIN |
90252-03011 |
US $1.25 |
||
|
9046816029
|
9046816029
90468-16029 CLIP |
90468-16029 |
from US $0.64 |
||
