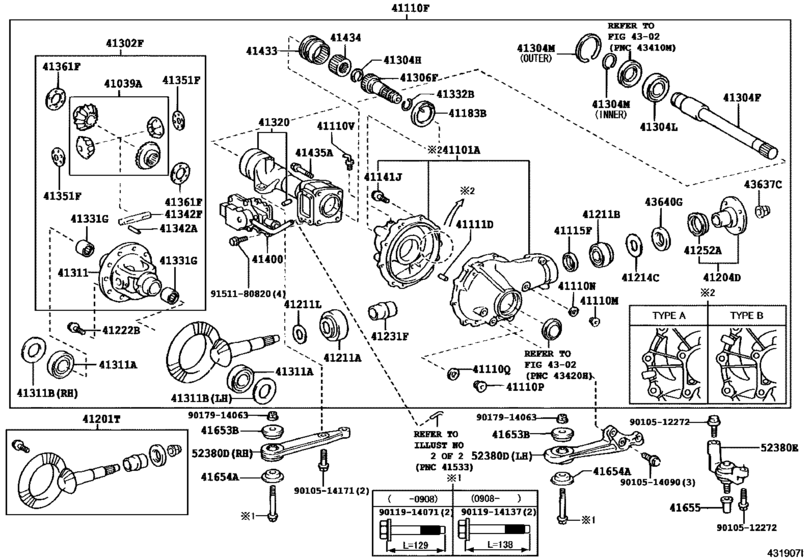

Front Axle Housing & Differential ([07.2007 - ] (0707- )ATM) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 11.2010
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41039A
|
41039A
41039-35010 Gear Kit, Differential[04.2011 -] GSJ15..ATM..(CHI,GCC,GEN,SA) |
41039-35010 |
from US $132.84 |
||
|
41039A
|
41039A
41039-71020 Gear Kit, DifferentialDIFFERENTIAL [11.2010 - 04.2011] GSJ15 |
41039-71020 |
from US $141.52 |
||
|
41101A
|
41101A
41101-35160 Carrier Sub-Assy, Differential, Front[04.2011 - 08.2015] GSJ15..ATM TYPE B:REFER ILLUST. |
41101-35160 |
US $432.43 |
||
| replacement | |||||
|
41101A
|
41101A
41101-35220 Carrier Sub-Assy, Differential, Front[04.2011 - 08.2015] GSJ15..ATM TYPE B:REFER ILLUST. |
41101-35220 |
US $393.12 |
||
|
41101A
|
41101A
41101-35220 Carrier Sub-Assy, Differential, Front[08.2015 -] GSJ15..ATM..(CHI,GCC,GEN,SA) TYPE B:REFER ILLUST. |
41101-35220 |
US $393.12 |
||
|
41101A
|
41101A
41101-71010 Carrier Sub-Assy, Differential, FrontDIFFERENTIAL, FRONT [11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) TYPE A:REFER ILLUST. |
41101-71010 |
US $454.27 |
||
|
41110F
|
41110F
41110-35A10 Carrier Assy, Differential, FrontDIFFERENTIAL, FRONT [11.2010 - 04.2011] GSJ15..ATM *FGR=41:11=3.727 |
41110-35A10 |
US $2,169.44 |
||
| replacement | |||||
|
41110F
|
41110F
41110-35A11 Carrier Assy, Differential, Front[11.2010 - 04.2011] GSJ15..ATM *FGR=41:11=3.727 |
41110-35A11 |
US $1,965.60 |
||
|
41110F
|
41110F
41110-35A11 Carrier Assy, Differential, Front[05.2015 -] GSJ15..ATM..(CHI,GCC,GEN,SA) *FGR=41:11=3.727,PNC 41101A=TYPE A |
41110-35A11 |
US $1,965.60 |
||
|
41110M
|
41110M
90341-18032 Plug Sub-Assy, Drain(Mtm)No magnet [12.2011 -] GSJ15..CHI,GCC,GEN,SA |
90341-18032 |
from US $3.76 |
||
|
41110M
|
41110M
90341-18066
Plug (For Rear Differential Filler)
[11.2010 - 12.2011] GSJ15 |
90341-18066 |
— | ||
| replacement | |||||
|
41110M
|
41110M
90341-18032 Plug Sub-Assy, Drain(Mtm)No magnet [11.2010 - 12.2011] GSJ15 |
90341-18032 |
from US $3.76 |
||
|
41110N
|
41110N
12157-10010 Gasket (For Drain Plug)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
12157-10010 |
from US $0.72 |
||
|
41110P
|
41110P
90341-24014 Plug, Front Differential Drain[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90341-24014 |
from US $5.56 |
||
|
41110Q
|
41110Q
90430-24003
Gasket(For Oil Filter Bracket Union)
[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90430-24003 |
— | ||
| replacement | |||||
|
41110Q
|
41110Q
90430-24017 Gasket[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90430-24017 |
from US $0.89 |
||
|
41110V
|
41110V
90404-08004 Union (For Front Differential)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90404-08004 |
US $2.62 |
||
|
41111D
|
41111D
90250-10017 Pin, Straight(For Clutch Housing Set)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90250-10017 |
from US $1.41 |
||
|
41115F
|
41115F
41115-35010 Ring, Differential Oil Storage[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
41115-35010 |
from US $3 |
||
|
41141J
|
41141J
90105-10391 Bolt(For Front Differential Side Bearing Retainer)[11.2010 -] GSJ15..MTM *10-1.25PX24.5-18,(J); GSJ15..ATM..(ARL,GCC,GEN,SA) *10-1.25PX24.5-18,(J),PNC 41101A=T/P A |
90105-10391 |
US $1.49 |
||
|
41141J
|
41141J
90105-T0101
Bolt(For Front Differential Side Bearing Retainer)
[05.2011 -] GSJ15..MTM *10-1.25PX24.5-18,(L); GSJ15..ATM..(ARL,GCC,GEN,SA) *10-1.25PX24.5-18,(L),PNC 41101A=T/P A |
90105-T0101 |
— | ||
|
41183B
|
41183B
41183-35040 Deflector, Front Differential Side Bearing Retainer[11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) |
41183-35040 |
US $2.77 |
||
|
41201T
|
41201T
41201-80327 Final Gear Kit, Differential, FrontFRONT [11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) *FGR=41:11=3.727 |
41201-80327 |
US $625.50 |
||
|
41204D
|
41204D
41204-35110 Flange Sub-Assy, Front Drive Pinion Companion, Front[11.2010 - 05.2015] GSJ15 |
41204-35110 |
from US $68.14 |
||
|
41204D
|
41204D
41204-71030 Flange Sub-Assy, Front Drive Pinion Companion, Front[05.2015 -] GSJ15..CHI,GCC,GEN,SA |
41204-71030 |
US $78.46 |
||
|
41211A
|
41211A
90366-35087 Bearing , Tapered Roller (for front drive pinion)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90366-35087 |
from US $58.80 |
||
|
41211B
|
41211B
90366-30067 Bearing (For Rear Drive Pinion Front)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90366-30067 |
from US $44.56 |
||
|
41211L
|
41211L
90201-35497 Washer, Plate (For Rear Differential Drive Pinion)[07.2015 -] GSJ15..ATM T=1.70,*422,OD=47; GSJ15..MTM T=1.70,OD=47 |
90201-35497 |
from US $2.76 |
||
|
41211L
|
41211L
90201-35498 Washer, Plate (For Rear Differential Drive Pinion)[07.2015 -] GSJ15..ATM T=1.73,*422,OD=47; GSJ15..MTM T=1.73,OD=47 |
90201-35498 |
from US $2.74 |
||
|
41211L
|
41211L
90201-35499 Washer, Plate (For Rear Differential Drive Pinion)[07.2015 -] GSJ15..ATM T=1.76,*422,OD=47; GSJ15..MTM T=1.76,OD=47 |
90201-35499 |
from US $2.72 |
||
|
41211L
|
41211L
90201-35500 Washer, Plate (For Rear Differential Drive Pinion)[07.2015 -] GSJ15..ATM T=1.79,*422,OD=47; GSJ15..MTM T=1.79,OD=47 |
90201-35500 |
from US $2.74 |
||
|
41211L
|
41211L
90201-35501 Washer, Plate (For Rear Differential Drive Pinion)[07.2015 -] GSJ15..ATM T=1.82,*422,OD=47; GSJ15..MTM T=1.82,OD=47 |
90201-35501 |
from US $2.74 |
||
|
41211L
|
41211L
90201-35502 Washer, Plate (For Rear Differential Drive Pinion)[07.2015 -] GSJ15..ATM T=1.85,*422,OD=47; GSJ15..MTM T=1.85,OD=47 |
90201-35502 |
from US $3.02 |
||
|
41211L
|
41211L
90201-35503 Washer, Plate (For Rear Differential Drive Pinion)[07.2015 -] GSJ15..ATM T=1.88,*422,OD=47; GSJ15..MTM T=1.88,OD=47 |
90201-35503 |
from US $2.85 |
||
|
41211L
|
41211L
90201-35504 Washer, Plate (For Rear Differential Drive Pinion)[07.2015 -] GSJ15..ATM T=1.91,*422,OD=47; GSJ15..MTM T=1.91,OD=47 |
90201-35504 |
US $3.23 |
||
|
41211L
|
41211L
90201-35505 Washer, Plate (For Rear Differential Drive Pinion)[07.2015 -] GSJ15..ATM T=1.94,*422,OD=47; GSJ15..MTM T=1.94,OD=47 |
90201-35505 |
US $3.23 |
||
|
41211L
|
41211L
90201-35506 Washer, Plate (For Rear Differential Drive Pinion)[07.2015 -] GSJ15..ATM T=1.97,*422,OD=47; GSJ15..MTM T=1.97,OD=47 |
90201-35506 |
US $3.23 |
||
|
41211L
|
41211L
90201-35507 Washer, Plate (For Rear Differential Drive Pinion)[07.2015 -] GSJ15..ATM T=2.00,*422,OD=47; GSJ15..MTM T=2.00,OD=47 |
90201-35507 |
from US $2.81 |
||
|
41211L
|
41211L
90201-35508 Washer, Plate (For Rear Differential Drive Pinion)[07.2015 -] GSJ15..ATM T=2.03,*422,OD=47; GSJ15..MTM T=2.03,OD=47 |
90201-35508 |
from US $2.85 |
||
|
41211L
|
41211L
90201-35509 Washer, Plate (For Rear Differential Drive Pinion)[07.2015 -] GSJ15..ATM T=2.06,*422,OD=47; GSJ15..MTM T=2.06,OD=47 |
90201-35509 |
from US $2.83 |
||
|
41211L
|
41211L
90201-35510 Washer, Plate (For Rear Differential Drive Pinion)[07.2015 -] GSJ15..ATM T=2.09,*422,OD=47; GSJ15..MTM T=2.09,OD=47 |
90201-35510 |
from US $3.23 |
||
|
41211L
|
41211L
90201-35511 Washer, Plate (For Rear Differential Drive Pinion)[07.2015 -] GSJ15..ATM T=2.12,*422,OD=47; GSJ15..MTM T=2.12,OD=47 |
90201-35511 |
from US $2.83 |
||
|
41211L
|
41211L
90201-35512 Washer, Plate (For Rear Differential Drive Pinion)[07.2015 -] GSJ15..ATM T=2.15,*422,OD=47; GSJ15..MTM T=2.15,OD=47 |
90201-35512 |
US $3.23 |
||
|
41211L
|
41211L
90201-35513 Washer, Plate (For Rear Differential Drive Pinion)[07.2015 -] GSJ15..ATM T=2.18,*422,OD=47; GSJ15..MTM T=2.18,OD=47 |
90201-35513 |
from US $3.08 |
||
|
41211L
|
41211L
90201-35514 Washer, Plate (For Rear Differential Drive Pinion)[07.2015 -] GSJ15..ATM T=2.21,*422,OD=47; GSJ15..MTM T=2.21,OD=47 |
90201-35514 |
from US $3.23 |
||
|
41211L
|
41211L
90201-35515 Washer, Plate (For Rear Differential Drive Pinion)[07.2015 -] GSJ15..ATM T=2.24,MARK 01,*422,OD=47; GSJ15..MTM T=2.24,MARK 01,OD=47 |
90201-35515 |
US $2.15 |
||
|
41211L
|
41211L
90201-35516 Washer, Plate (For Rear Differential Drive Pinion)[07.2015 -] GSJ15..ATM T=2.27,MARK 02,*422,OD=47; GSJ15..MTM T=2.27,MARK 02,OD=47 |
90201-35516 |
from US $2.15 |
||
|
41211L
|
41211L
90201-35517 Washer, Plate (For Rear Differential Drive Pinion)[07.2015 -] GSJ15..ATM T=2.30,MARK 03,*422,OD=47; GSJ15..MTM T=2.30,MARK 03,OD=47 |
90201-35517 |
from US $2.15 |
||
|
41211L
|
41211L
90201-35518 Washer, Plate (For Rear Differential Drive Pinion)[07.2015 -] GSJ15..ATM T=2.33,MARK 04,*422,OD=47; GSJ15..MTM T=2.33,MARK 04,OD=47 |
90201-35518 |
from US $2.15 |
||
|
41211L
|
41211L
90564-35109 Gear, Differential Ring[11.2010 -] GSJ15..ATM T=1.70,*422,OD=52 |
90564-35109 |
from US $1.05 |
||
|
41211L
|
41211L
90564-35110 Gear, Differential Ring[11.2010 -] GSJ15..ATM T=1.73,*422,OD=52 |
90564-35110 |
from US $1.05 |
||
|
41211L
|
41211L
90564-35111 Gear, Differential Ring[11.2010 -] GSJ15..ATM T=1.76,*422,OD=52 |
90564-35111 |
US $1.05 |
||
|
41211L
|
41211L
90564-35112
Gear, Differential Ring
[11.2010 -] GSJ15..ATM T=1.79,*422,OD=52 |
90564-35112 |
— | ||
|
41211L
|
41211L
90564-35113 Gear, Differential Ring[11.2010 -] GSJ15..ATM T=1.82,*422,OD=52 |
90564-35113 |
US $1.05 |
||
|
41211L
|
41211L
90564-35114 Gear, Differential Ring[11.2010 -] GSJ15..ATM T=1.85,*422,OD=52 |
90564-35114 |
US $1.05 |
||
|
41211L
|
41211L
90564-35115 Gear, Differential Ring[11.2010 -] GSJ15..ATM T=1.88,*422,OD=52 |
90564-35115 |
US $1.05 |
||
|
41211L
|
41211L
90564-35116 Gear, Differential Ring[11.2010 -] GSJ15..ATM T=1.91,*422,OD=52 |
90564-35116 |
US $1.05 |
||
|
41211L
|
41211L
90564-35117 Gear, Differential Ring[11.2010 -] GSJ15..ATM T=1.94,*422,OD=52 |
90564-35117 |
US $1.05 |
||
|
41211L
|
41211L
90564-35118 Gear, Differential Ring[11.2010 -] GSJ15..ATM T=1.97,*422,OD=52 |
90564-35118 |
US $1.05 |
||
|
41211L
|
41211L
90564-35119 Gear, Differential Ring[11.2010 -] GSJ15..ATM T=2.00,*422,OD=52 |
90564-35119 |
from US $1.05 |
||
|
41211L
|
41211L
90564-35120 Gear, Differential Ring[11.2010 -] GSJ15..ATM T=2.03,*422,OD=52 |
90564-35120 |
US $1.51 |
||
|
41211L
|
41211L
90564-35121 Gear, Differential Ring[11.2010 -] GSJ15..ATM T=2.06,*422,OD=52 |
90564-35121 |
US $1.05 |
||
|
41211L
|
41211L
90564-35123 Gear, Differential Ring[11.2010 -] GSJ15..ATM T=2.09,*422,OD=52 |
90564-35123 |
US $1.05 |
||
|
41211L
|
41211L
90564-35124 Gear, Differential Ring[11.2010 -] GSJ15..ATM T=2.12,*422,OD=52 |
90564-35124 |
US $1.05 |
||
|
41211L
|
41211L
90564-35125 Gear, Differential Ring[11.2010 -] GSJ15..ATM T=2.15,*422,OD=52 |
90564-35125 |
US $1.05 |
||
|
41211L
|
41211L
90564-35126 Gear, Differential Ring[11.2010 -] GSJ15..ATM T=2.18,*422,OD=52 |
90564-35126 |
US $1.05 |
||
|
41211L
|
41211L
90564-35127 Gear, Differential Ring[11.2010 -] GSJ15..ATM T=2.21,*422,OD=52 |
90564-35127 |
US $1.05 |
||
|
41211L
|
41211L
90564-35128 Gear, Differential Ring[11.2010 -] GSJ15..ATM T=2.24,*422,OD=52 |
90564-35128 |
US $1.05 |
||
|
41211L
|
41211L
90564-35129 Gear, Differential Ring[11.2010 -] GSJ15..ATM T=2.27,*422,OD=52 |
90564-35129 |
US $1.05 |
||
|
41211L
|
41211L
90564-35130 Gear, Differential Ring[11.2010 -] GSJ15..ATM T=2.30,*422,OD=52 |
90564-35130 |
US $1.05 |
||
|
41211L
|
41211L
90564-35131 Gear, Differential Ring[11.2010 -] GSJ15..ATM T=2.33,*422,OD=52 |
90564-35131 |
US $1.05 |
||
|
41214C
|
41214C
41214-26011 Slinger, Rear Differential Drive Pinion Oil[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
41214-26011 |
from US $4.39 |
||
|
41222B
|
41222B
90901-05002 Bolt (For Rear Differential Ring Gear Set)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90901-05002 |
from US $3.23 |
||
|
41231F
|
41231F
41231-35040 Spacer, Front Differential Drive Pinion Bearing[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
41231-35040 |
from US $9.03 |
||
|
41252A
|
41252A
41252-35050 Deflector, Dust (For Front Differential)[11.2010 - 05.2015] GSJ15 |
41252-35050 |
from US $4.88 |
||
|
41252A
|
41252A
41252-71030 Deflector, Dust (For Front Differential)[05.2015 -] GSJ15..CHI,GCC,GEN,SA |
41252-71030 |
US $3.86 |
||
|
41302F
|
41302F
41301-71010 Case Sub-Assy, Front DifferentialFRONT DIFFERENTIAL [11.2010 - 05.2015] GSJ15..ATM PNC 41101A=TYPE A |
41301-71010 |
US $480.48 |
||
| replacement | |||||
|
41302F
|
41302F
41301-71011 Case Sub-Assy, Front Differential[11.2010 - 05.2015] GSJ15..ATM PNC 41101A=TYPE A |
41301-71011 |
US $436.80 |
||
|
41302F
|
41302F
41301-71011 Case Sub-Assy, Front Differential[05.2015 -] GSJ15..ATM..(CHI,GCC,GEN,SA) PNC 41101A=TYPE A |
41301-71011 |
US $436.80 |
||
|
41304F
|
41304F
41337-35060 Shaft Sub-Assy, Differential Side Gear, Rh[11.2010 -] GSJ15..ATM |
41337-35060 |
from US $94.35 |
||
|
41304H
|
41304H
90520-31011 Ring, Shaft Snap (For Transfer Input Gear Stopper)[11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) |
90520-31011 |
US $0.87 |
||
|
41304L
|
41304L
90363-43001 Bearing (For Front Differntial Side Gear Shaft Rh)[04.2011 -] GSJ15..ATM..(CHI,GCC,GEN,SA) PNC 41101A=TYPE B |
90363-43001 |
from US $15.05 |
||
|
41304L
|
41304L
90363-T0014 Bearing (For Front Differntial Side Gear Shaft Rh)[11.2010 -] GSJ15..MTM; GSJ15..ATM..(CHI,GCC,GEN,SA) PNC 41101A=TYPE A |
90363-T0014 |
from US $18.43 |
||
|
41304M
|
41304M
90520-41014 Ring, Shaft Snap (For Differential Side Gear Shaft Rh)[11.2010 -] GSJ15..CHI,GCC,GEN,SA INNER |
90520-41014 |
from US $2.81 |
||
|
41304M
|
41304M
90520-75002 Ring, Shaft Snap (For Differential Side Gear Shaft Rh)[11.2010 -] GSJ15..CHI,GCC,GEN,SA OUTER |
90520-75002 |
from US $2.61 |
||
|
41306F
|
41306F
41306-35050
Shaft Sub-Assy, Differential Side Gear Inter
[11.2010 - 08.2015] GSJ15..ATM |
41306-35050 |
— | ||
| replacement | |||||
|
41306F
|
41306F
41306-35060 Shaft Sub-Assy, Differential Side Gear Inter[11.2010 - 08.2015] GSJ15..ATM |
41306-35060 |
US $89.11 |
||
|
41306F
|
41306F
41306-35060 Shaft Sub-Assy, Differential Side Gear Inter[08.2015 -] GSJ15..ATM..(CHI,GCC,GEN,SA) |
41306-35060 |
US $89.11 |
||
|
41311
|
41311
41311-35120 Case, Front Differential[04.2011 -] GSJ15..ATM..(CHI,GCC,GEN,SA) PNC 41101A=TYPE B |
41311-35120 |
US $240.24 |
||
|
41311
|
41311
41311-71010 Case, Front DifferentialFRONT DIFFERENTIAL [11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) PNC 41101A=TYPE A |
41311-71010 |
US $240.24 |
||
|
41311A
|
41311A
90366-53001 Bearing (For Front Differential Case)[04.2011 -] GSJ15..ATM..(CHI,GCC,GEN,SA) PNC 41101A=TYPE B |
90366-53001 |
from US $45.18 |
||
|
41311A
|
41311A
90366-53004 Bearing (For Front Differential Case)[11.2010 -] GSJ15..MTM; GSJ15..ATM..(CHI,GCC,GEN,SA) PNC 41101A=TYPE A |
90366-53004 |
from US $43.43 |
||
|
41311B
|
41311B
90564-50124 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.60,LH |
90564-50124 |
from US $3.14 |
||
|
41311B
|
41311B
90564-50126 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.66,LH |
90564-50126 |
US $3.14 |
||
|
41311B
|
41311B
90564-50128 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.72,LH |
90564-50128 |
US $3.14 |
||
|
41311B
|
41311B
90564-50130 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.78,LH |
90564-50130 |
US $3.14 |
||
|
41311B
|
41311B
90564-50132 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.84,LH |
90564-50132 |
US $3.14 |
||
|
41311B
|
41311B
90564-50134 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.90,LH |
90564-50134 |
US $4.08 |
||
|
41311B
|
41311B
90564-50136 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.96,LH |
90564-50136 |
US $4.02 |
||
|
41311B
|
41311B
90564-50138 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.02,LH |
90564-50138 |
US $4.02 |
||
|
41311B
|
41311B
90564-50140 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.08,LH |
90564-50140 |
US $4.08 |
||
|
41311B
|
41311B
90564-50142 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.14,LH |
90564-50142 |
US $4.08 |
||
|
41311B
|
41311B
90564-50154 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.60,RH |
90564-50154 |
US $3.14 |
||
|
41311B
|
41311B
90564-50156 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.66,RH |
90564-50156 |
US $3.14 |
||
|
41311B
|
41311B
90564-50158 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.72,RH |
90564-50158 |
US $3.14 |
||
|
41311B
|
41311B
90564-50160 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.78,RH |
90564-50160 |
US $3.20 |
||
|
41311B
|
41311B
90564-50162 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.84,RH |
90564-50162 |
US $3.14 |
||
|
41311B
|
41311B
90564-50164 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.90,RH |
90564-50164 |
from US $3.14 |
||
|
41311B
|
41311B
90564-50166 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.96,RH |
90564-50166 |
US $3.20 |
||
|
41311B
|
41311B
90564-50168 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.02,RH |
90564-50168 |
US $3.20 |
||
|
41311B
|
41311B
90564-50170 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.08,RH |
90564-50170 |
US $4.08 |
||
|
41311B
|
41311B
90564-50172 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.14,RH |
90564-50172 |
US $4.08 |
||
|
41311B
|
41311B
90564-50184 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.58,LH |
90564-50184 |
US $4.08 |
||
|
41311B
|
41311B
90564-50185 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.62,LH |
90564-50185 |
US $3.14 |
||
|
41311B
|
41311B
90564-50186 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.64,LH |
90564-50186 |
US $3.14 |
||
|
41311B
|
41311B
90564-50187 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.68,LH |
90564-50187 |
US $4.02 |
||
|
41311B
|
41311B
90564-50188 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.70,LH |
90564-50188 |
US $3.14 |
||
|
41311B
|
41311B
90564-50189 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.74,LH |
90564-50189 |
US $3.14 |
||
|
41311B
|
41311B
90564-50190 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.76,LH |
90564-50190 |
US $4.02 |
||
|
41311B
|
41311B
90564-50191 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.80,LH |
90564-50191 |
US $4.08 |
||
|
41311B
|
41311B
90564-50192 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.82,LH |
90564-50192 |
US $4.02 |
||
|
41311B
|
41311B
90564-50193 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.86,LH |
90564-50193 |
US $4.02 |
||
|
41311B
|
41311B
90564-50194 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.88,LH |
90564-50194 |
US $4.02 |
||
|
41311B
|
41311B
90564-50195 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.92,LH |
90564-50195 |
US $4.02 |
||
|
41311B
|
41311B
90564-50196 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.94,LH |
90564-50196 |
US $4.02 |
||
|
41311B
|
41311B
90564-50197 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.98,LH |
90564-50197 |
US $4.02 |
||
|
41311B
|
41311B
90564-50198 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.00,LH |
90564-50198 |
US $4.02 |
||
|
41311B
|
41311B
90564-50199 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.04,LH |
90564-50199 |
US $4.02 |
||
|
41311B
|
41311B
90564-50200 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.06,LH |
90564-50200 |
US $4.08 |
||
|
41311B
|
41311B
90564-50201 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.10,LH |
90564-50201 |
US $4.08 |
||
|
41311B
|
41311B
90564-50202 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.12,LH |
90564-50202 |
US $4.08 |
||
|
41311B
|
41311B
90564-50203 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.16,LH |
90564-50203 |
US $4.02 |
||
|
41311B
|
41311B
90564-50204 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.58,RH |
90564-50204 |
US $3.14 |
||
|
41311B
|
41311B
90564-50205 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.62,RH |
90564-50205 |
US $3.14 |
||
|
41311B
|
41311B
90564-50206 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.64,RH |
90564-50206 |
US $3.14 |
||
|
41311B
|
41311B
90564-50207 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.68,RH |
90564-50207 |
US $3.14 |
||
|
41311B
|
41311B
90564-50208 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.70,RH |
90564-50208 |
US $3.14 |
||
|
41311B
|
41311B
90564-50209 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.74,RH |
90564-50209 |
US $3.14 |
||
|
41311B
|
41311B
90564-50210 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.76,RH |
90564-50210 |
US $3.20 |
||
|
41311B
|
41311B
90564-50211 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.80,RH |
90564-50211 |
US $4.02 |
||
|
41311B
|
41311B
90564-50212 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.82,RH |
90564-50212 |
US $3.14 |
||
|
41311B
|
41311B
90564-50213 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.86,RH |
90564-50213 |
US $3.14 |
||
|
41311B
|
41311B
90564-50214 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.88,RH |
90564-50214 |
US $4.02 |
||
|
41311B
|
41311B
90564-50215 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.92,RH |
90564-50215 |
US $4.02 |
||
|
41311B
|
41311B
90564-50216 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.94,RH |
90564-50216 |
US $4.02 |
||
|
41311B
|
41311B
90564-50217 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.98,RH |
90564-50217 |
US $4.08 |
||
|
41311B
|
41311B
90564-50218 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.00,RH |
90564-50218 |
US $4.08 |
||
|
41311B
|
41311B
90564-50219 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.04,RH |
90564-50219 |
US $4.08 |
||
|
41311B
|
41311B
90564-50220 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.06,RH |
90564-50220 |
US $4.08 |
||
|
41311B
|
41311B
90564-50221 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.10,RH |
90564-50221 |
US $4.08 |
||
|
41311B
|
41311B
90564-50222 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.12,RH |
90564-50222 |
US $4.02 |
||
|
41311B
|
41311B
90564-50223 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.16,RH |
90564-50223 |
US $4.37 |
||
|
41311B
|
41311B
90564-50224 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.44,RH |
90564-50224 |
US $3.20 |
||
|
41311B
|
41311B
90564-50225 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.46,RH |
90564-50225 |
US $3.20 |
||
|
41311B
|
41311B
90564-50226 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.48,RH |
90564-50226 |
US $3.20 |
||
|
41311B
|
41311B
90564-50227 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.50,RH |
90564-50227 |
US $3.20 |
||
|
41311B
|
41311B
90564-50228 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.52,RH |
90564-50228 |
US $3.14 |
||
|
41311B
|
41311B
90564-50229 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.54,RH |
90564-50229 |
US $3.14 |
||
|
41311B
|
41311B
90564-50230 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.56,RH |
90564-50230 |
US $3.14 |
||
|
41311B
|
41311B
90564-50231 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.18,LH |
90564-50231 |
US $4.02 |
||
|
41311B
|
41311B
90564-50232 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.20,LH |
90564-50232 |
US $4.02 |
||
|
41311B
|
41311B
90564-50233 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.22,LH |
90564-50233 |
US $4.02 |
||
|
41311B
|
41311B
90564-50234 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.24,LH |
90564-50234 |
US $4.02 |
||
|
41311B
|
41311B
90564-50235 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.26,LH |
90564-50235 |
US $4.02 |
||
|
41311B
|
41311B
90564-50236 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.28,LH |
90564-50236 |
US $4.08 |
||
|
41311B
|
41311B
90564-50237 Washer, Plate (For Front Differential Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.30,LH |
90564-50237 |
US $4.08 |
||
|
41320
|
41320
41320-35050
Tube Assy, Front Differential
[11.2010 - 08.2015] GSJ15..ATM |
41320-35050 |
— | ||
|
41320
|
41320
41320-35080
Tube Assy, Front Differential
[08.2015 -] GSJ15..ATM PNC 41101A=TYPE B |
41320-35080 |
— | ||
|
41331G
|
41331G
90364-35008 Bearing, Needle Roller(For Front Differential Side Gear)[04.2011 -] GSJ15..ATM..(CHI,GCC,GEN,SA) PNC 41101A=TYPE B |
90364-35008 |
from US $13.57 |
||
|
41331G
|
41331G
90364-35010 Bearing, Needle Roller(For Front Differential Side Gear)NEEDLE ROLLER(FOR FRONT DIFFERENTIAL SIDE GEAR) [11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) PNC 41101A=TYPE A |
90364-35010 |
US $16.07 |
||
|
41332B
|
41332B
90521-34003 Ring, Hole Snap (For Diff Side Gear Intermeddiate Shaft)[11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) |
90521-34003 |
from US $1.75 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90250-06058 |
from US $2.03 |
||
|
41342F
|
41342F
41342-35020
Shaft, Front Differential Pinion, No.1
[11.2010 - 05.2015] GSJ15 |
41342-35020 |
— | ||
| replacement | |||||
|
41342F
|
41342F
41342-53020 Shaft, Front Differential Pinion, No.1[11.2010 - 05.2015] GSJ15 |
41342-53020 |
US $18.17 |
||
|
41342F
|
41342F
41342-53020 Shaft, Front Differential Pinion, No.1[06.2015 -] GSJ15..MTM; GSJ15..ATM..(CHI,GCC,GEN,SA) PNC 41101A=TYPE A |
41342-53020 |
US $18.17 |
||
|
41351F
|
41351F
41351-35030 Washer, Front Differential Pinion Thrust[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
41351-35030 |
from US $1.50 |
||
|
41361F
|
41361F
41361-34010 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.50 |
41361-34010 |
from US $3.67 |
||
|
41361F
|
41361F
41361-34020 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.55 |
41361-34020 |
US $3.49 |
||
|
41361F
|
41361F
41361-34030 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.60 |
41361-34030 |
US $3.19 |
||
|
41361F
|
41361F
41361-34040 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.65 |
41361-34040 |
US $3.19 |
||
|
41361F
|
41361F
41361-34050 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.70 |
41361-34050 |
US $3.32 |
||
|
41361F
|
41361F
41361-34060 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.75 |
41361-34060 |
US $4.66 |
||
|
41361F
|
41361F
41361-34070 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.80 |
41361-34070 |
US $4.66 |
||
|
41361F
|
41361F
41361-34080 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.85 |
41361-34080 |
US $3.35 |
||
|
41361F
|
41361F
41361-34090 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.90 |
41361-34090 |
US $3.67 |
||
|
41400
|
41400
41400-35031
Actuator Assy, Differential Vacuum
[11.2010 - 12.2011] GSJ15..ATM |
41400-35031 |
— | ||
| replacements | |||||
|
41400
|
41400
41400-35033
Actuator Assy, Differential Vacuum
[11.2010 - 12.2011] GSJ15..ATM |
41400-35033 |
— | ||
| replacement | |||||
|
41400
|
41400
41400-35034 Actuator Assy, Differential Vacuum[11.2010 - 12.2011] GSJ15..ATM |
41400-35034 |
from US $248.77 |
||
|
41400
|
41400
41400-35034 Actuator Assy, Differential Vacuum[11.2010 - 12.2011] GSJ15..ATM |
41400-35034 |
from US $248.77 |
||
|
41400
|
41400
41400-35032
Actuator Assy, Differential Vacuum
[12.2011 - 05.2014] GSJ15..ATM |
41400-35032 |
— | ||
| replacements | |||||
|
41400
|
41400
41400-35033
Actuator Assy, Differential Vacuum
[12.2011 - 05.2014] GSJ15..ATM |
41400-35033 |
— | ||
| replacement | |||||
|
41400
|
41400
41400-35034 Actuator Assy, Differential Vacuum[12.2011 - 05.2014] GSJ15..ATM |
41400-35034 |
from US $248.77 |
||
|
41400
|
41400
41400-35034 Actuator Assy, Differential Vacuum[12.2011 - 05.2014] GSJ15..ATM |
41400-35034 |
from US $248.77 |
||
|
41400
|
41400
41400-35033
Actuator Assy, Differential Vacuum
[05.2014 - 06.2017] GSJ15..ATM |
41400-35033 |
— | ||
| replacement | |||||
|
41400
|
41400
41400-35034 Actuator Assy, Differential Vacuum[05.2014 - 06.2017] GSJ15..ATM |
41400-35034 |
from US $248.77 |
||
|
41433
|
41433
41433-35010 Sleeve, Differential Clutch[11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) |
41433-35010 |
US $64.82 |
||
|
41434
|
41434
41434-35030 Hub, Differential Clutch[11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) |
41434-35030 |
US $16.07 |
||
|
41435A
|
41435A
90107-12002 Bolt (For Differential Clutch Case Setting)[11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) *12-1.25PX78-30 |
90107-12002 |
US $3.20 |
||
|
41653B
|
41653B
41653-60030 Stopper, Differential Mount, Upper[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
41653-60030 |
from US $12.52 |
||
|
41654A
|
41654A
41654-60010 Stopper, Differential Mount, Lower[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
41654-60010 |
from US $7.98 |
||
|
41655
|
41655
41655-60020 Nut, Front Differential Mount, No.1FRONT DIFFERENTIAL MOUNT, NO.1 [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
41655-60020 |
US $5.82 |
||
|
43637C
|
43637C
90177-22003 Nut (For Rear Drive Pinion)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90177-22003 |
from US $2.28 |
||
|
43640G
|
43640G
90311-41009 Seal, Oil (For Front Differential Carrier)[11.2010 - 05.2015] GSJ15 |
90311-41009 |
from US $10.93 |
||
|
43640G
|
43640G
90311-41015 Seal, Oil (For Front Differential Carrier)[05.2015 -] GSJ15..CHI,GCC,GEN,SA |
90311-41015 |
from US $10.93 |
||
|
52380D
|
52380D
52380-60100 Support Assy, Front DifferentialFRONT DIFFERENTIAL [11.2010 -] GSJ15..CHI,GCC,GEN,SA LH |
52380-60100 |
from US $130.55 |
||
|
52380D
|
52380D
52380-60110 Support Assy, Front DifferentialFRONT DIFFERENTIAL [11.2010 -] GSJ15..CHI,GCC,GEN,SA RH |
52380-60110 |
from US $95.04 |
||
|
52380E
|
52380E
52380-60120 Support Assy, DifferentialDIFFERENTIAL [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
52380-60120 |
from US $75.73 |
||
|
9010512272
|
9010512272
90105-12272
BOLT WASHER BASED
|
90105-12272 |
— | ||
| replacement | |||||
|
9010512272
|
9010512272
90105-12411 9010512411 |
90105-12411 |
from US $1.37 |
||
|
9010514090
|
9010514090
90105-14090 BOLT WASHER BASED |
90105-14090 |
US $2.77 |
||
|
9010514171
|
9010514171
90105-14171 BOLTFLANGE |
90105-14171 |
US $4.84 |
||
|
9011914071
|
9011914071
90119-14071 BOLT WWASHER |
90119-14071 |
from US $4.77 |
||
|
9011914137
|
9011914137
90119-14137 Bolt |
90119-14137 |
US $6.47 |
||
|
9017914063
|
9017914063
90179-14063 NUT |
90179-14063 |
from US $1.25 |
||
|
9151180820
|
9151180820
91511-80820 BOLT FLANGE |
91511-80820 |
from US $0.78 |
||
