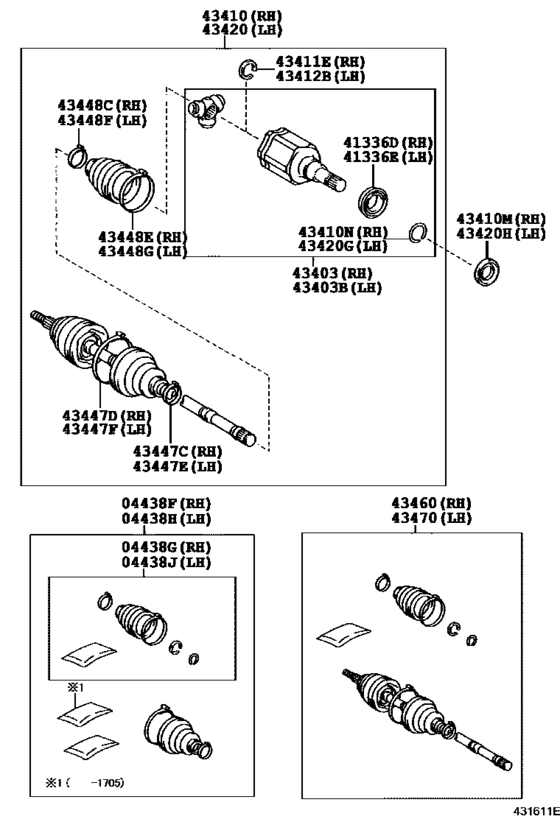

Front Drive Shaft ([07.2007 - ] (0707- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 11.2010
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04427-60130
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[11.2010 - 05.2017] GSJ15 |
04427-60130 |
— | ||
| replacement | |||||
|
04438F
|
04438F
04427-60133 BOOT KIT, FR DRIVESHAFT (IN&OUT)[11.2010 - 05.2017] GSJ15 |
04427-60133 |
from US $109.88 |
||
|
04438G
|
04438G
04437-60090 Boot Kit, Front Drive Shaft Inboard Joint, RhFRONT DRIVE SHAFT INBOARD JOINT, RH [11.2010 -] GSJ15 |
04437-60090 |
US $54.82 |
||
|
04438H
|
04438H
04427-60130
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[11.2010 - 05.2017] GSJ15 |
04427-60130 |
— | ||
| replacement | |||||
|
04438H
|
04438H
04427-60133 BOOT KIT, FR DRIVESHAFT (IN&OUT)[11.2010 - 05.2017] GSJ15 |
04427-60133 |
from US $109.88 |
||
|
04438J
|
04438J
04437-60090 Boot Kit, Front Drive Shaft Inboard Joint, RhFRONT DRIVE SHAFT INBOARD JOINT, RH [11.2010 -] GSJ15 |
04437-60090 |
US $54.82 |
||
|
41336D
|
41336D
41336-35020 Cover, Dust(For Front Drive Shaft)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
41336-35020 |
from US $4.94 |
||
|
41336E
|
41336E
41336-35020 Cover, Dust(For Front Drive Shaft)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
41336-35020 |
from US $4.94 |
||
|
43403
|
43403
43403-60040 Joint Set, Front Axle Inboard, RhFRONT AXLE INBOARD, RH [11.2010 -] GSJ15 |
43403-60040 |
from US $276.64 |
||
|
43403B
|
43403B
43403-60040 Joint Set, Front Axle Inboard, RhFRONT AXLE INBOARD, RH [11.2010 -] GSJ15 |
43403-60040 |
from US $276.64 |
||
|
43410
|
43410
43430-60081 Shaft Assy, Front Drive, Rh[11.2010 - 09.2011] GSJ15 |
43430-60081 |
US $799.34 |
||
| replacement | |||||
|
43410
|
43410
43430-60082 Shaft Assy, Front Drive[11.2010 - 09.2011] GSJ15 |
43430-60082 |
US $628.83 |
||
|
43410
|
43410
43430-60082 Shaft Assy, Front Drive[10.2011 -] GSJ15..CHI,GCC,GEN,SA |
43430-60082 |
US $628.83 |
||
|
43410M
|
43410M
90311-47013 Oil Seal, Front Drive Shaft, Rh[04.2011 - 08.2013] GSJ15..ATM *337 |
90311-47013 |
from US $10.39 |
||
|
43410M
|
43410M
90311-47021
Oil Seal, Front Drive Shaft, Rh
[11.2010 - 08.2013] GSJ15..ATM *336 |
90311-47021 |
— | ||
| replacement | |||||
|
43410M
|
43410M
90311-47026 Oil Seal, Front Drive Shaft, Rh[11.2010 - 08.2013] GSJ15..ATM *336 |
90311-47026 |
from US $13.80 |
||
|
43410M
|
43410M
90311-47026 Oil Seal, Front Drive Shaft, Rh[08.2013 -] GSJ15..ATM..(CHI,GCC,GEN,SA) *337 |
90311-47026 |
from US $13.80 |
||
|
43410N
|
43410N
90521-34003 Ring, Hole Snap (For Diff Side Gear Intermeddiate Shaft)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90521-34003 |
from US $1.75 |
||
|
43411E
|
43411E
90520-26028 Ring, Snap (For Rear Drive Shaft)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90520-26028 |
from US $1.97 |
||
|
43412B
|
43412B
90520-26028 Ring, Snap (For Rear Drive Shaft)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90520-26028 |
from US $1.97 |
||
|
43420
|
43420
43430-60081 Shaft Assy, Front Drive, Rh[11.2010 - 09.2011] GSJ15 |
43430-60081 |
US $799.34 |
||
| replacement | |||||
|
43420
|
43420
43430-60082 Shaft Assy, Front Drive[11.2010 - 09.2011] GSJ15 |
43430-60082 |
US $628.83 |
||
|
43420
|
43420
43430-60082 Shaft Assy, Front Drive[10.2011 -] GSJ15..CHI,GCC,GEN,SA |
43430-60082 |
US $628.83 |
||
|
43420G
|
43420G
90521-34003 Ring, Hole Snap (For Diff Side Gear Intermeddiate Shaft)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90521-34003 |
from US $1.75 |
||
|
43420H
|
43420H
90311-47012
Oil Seal, Front Drive Shaft
[04.2011 - 08.2013] GSJ15..ATM *337 |
90311-47012 |
— | ||
| replacement | |||||
|
43420H
|
43420H
90311-47027 Oil Seal, Front Drive Shaft, Lh[04.2011 - 08.2013] GSJ15..ATM *337 |
90311-47027 |
from US $9.68 |
||
|
43420H
|
43420H
90311-47020 Oil Seal, Front Drive Shaft, LhOIL (FOR DIFFERENTIAL SIDE GEAR SHAFT) [11.2010 - 08.2013] GSJ15..ATM *336 |
90311-47020 |
US $7.86 |
||
| replacement | |||||
|
43420H
|
43420H
90311-47027 Oil Seal, Front Drive Shaft, Lh[11.2010 - 08.2013] GSJ15..ATM *336 |
90311-47027 |
from US $9.68 |
||
|
43420H
|
43420H
90311-47027 Oil Seal, Front Drive Shaft, Lh[08.2013 -] GSJ15..ATM..(CHI,GCC,GEN,SA) *337 |
90311-47027 |
from US $9.68 |
||
|
43447C
|
43447C
42345-60160 Clamp (For Front Axle Outboard Joint Boot Rh)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
42345-60160 |
US $3.30 |
||
|
43447D
|
43447D
42345-60120 Clamp, No.1 (For Front Axle Outboard Joint Boot Setting)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
42345-60120 |
US $3.16 |
||
|
43447E
|
43447E
42345-60160 Clamp (For Front Axle Outboard Joint Boot Rh)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
42345-60160 |
US $3.30 |
||
|
43447F
|
43447F
42345-60120 Clamp, No.1 (For Front Axle Outboard Joint Boot Setting)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
42345-60120 |
US $3.16 |
||
|
43448C
|
43448C
42345-60160 Clamp (For Front Axle Outboard Joint Boot Rh)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
42345-60160 |
US $3.30 |
||
|
43448E
|
43448E
42345-60170 Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
42345-60170 |
US $8.06 |
||
|
43448F
|
43448F
42345-60160 Clamp (For Front Axle Outboard Joint Boot Rh)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
42345-60160 |
US $3.30 |
||
|
43448G
|
43448G
42345-60170 Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
42345-60170 |
US $8.06 |
||
|
43460
|
43460
43460-69195 Shaft Assy, Front Drive Outboard Joint, Rh[11.2010 - 10.2011] GSJ15 |
43460-69195 |
US $570.75 |
||
| replacement | |||||
|
43460
|
43460
43460-69215
Shaft Assy, Front Drive Outboard Joint, Rh
[11.2010 - 10.2011] GSJ15 |
43460-69215 |
— | ||
|
43460
|
43460
43460-69215
Shaft Assy, Front Drive Outboard Joint, Rh
[10.2011 -] GSJ15 |
43460-69215 |
— | ||
|
43470
|
43470
43460-69195 Shaft Assy, Front Drive Outboard Joint, Rh[11.2010 - 10.2011] GSJ15 |
43460-69195 |
US $570.75 |
||
| replacement | |||||
|
43470
|
43470
43460-69215
Shaft Assy, Front Drive Outboard Joint, Rh
[11.2010 - 10.2011] GSJ15 |
43460-69215 |
— | ||
|
43470
|
43470
43460-69215
Shaft Assy, Front Drive Outboard Joint, Rh
[10.2011 -] GSJ15 |
43460-69215 |
— | ||
