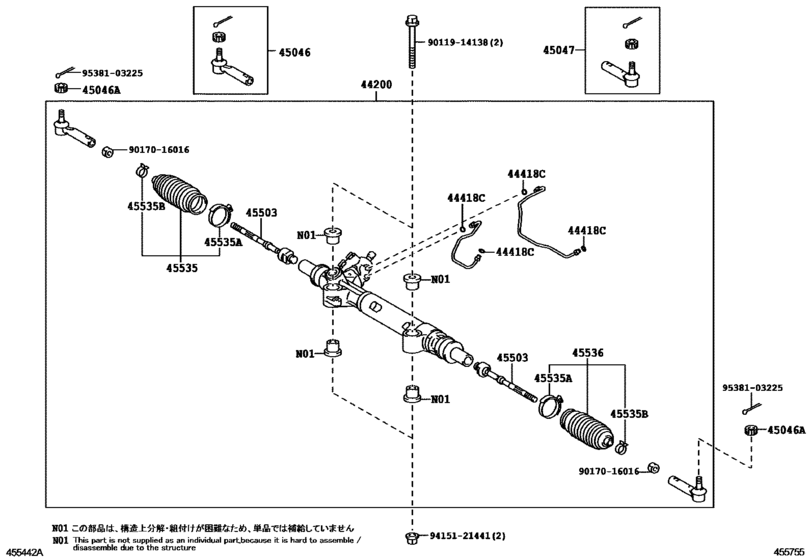

Front Steering Gear & Link ([11.2010 - ] (1011- )RHD) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 11.2010
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44200
|
44200
44200-35110
Link Assy, Power Steering
[11.2010 - 02.2013] GSJ15..RHD |
44200-35110 |
— | ||
| replacement | |||||
|
44200
|
44200
44200-35113 Link Assy, Power Steering[11.2010 - 02.2013] GSJ15..RHD |
44200-35113 |
US $1,001.15 |
||
|
44200
|
44200
44200-35111
Link Assy, Power Steering
[03.2013 - 02.2014] GSJ15..RHD |
44200-35111 |
— | ||
| replacement | |||||
|
44200
|
44200
44200-35113 Link Assy, Power Steering[03.2013 - 02.2014] GSJ15..RHD |
44200-35113 |
US $1,001.15 |
||
|
44200
|
44200
44200-35112
Link Assy, Power Steering
[03.2014 - 05.2015] GSJ15..RHD |
44200-35112 |
— | ||
| replacement | |||||
|
44200
|
44200
44200-35113 Link Assy, Power Steering[03.2014 - 05.2015] GSJ15..RHD |
44200-35113 |
US $1,001.15 |
||
|
44200
|
44200
44200-35113 Link Assy, Power Steering[06.2015 -] GSJ15..(GEN,SA)..RHD |
44200-35113 |
US $1,001.15 |
||
|
44418C
|
44418C
90301-03001 Seat, Union(For Steering Turn Pressure Tube)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90301-03001 |
US $3.23 |
||
|
45046
|
45046
45046-69245 End Sub-Assy, Tie RodTIE ROD, RH [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
45046-69245 |
from US $37.32 |
||
|
45046A
|
45046A
90171-14042 Nut, Castle(For Pitman Arm)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90171-14042 |
from US $2.09 |
||
|
45047
|
45047
45046-69245 End Sub-Assy, Tie RodTIE ROD, RH [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
45046-69245 |
from US $37.32 |
||
|
45503
|
45503
45503-35070 End Sub-Assy, Steering RackSTEERING RACK [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
45503-35070 |
from US $111.52 |
||
|
45535
|
45535
45535-69025 Boot, Steering Rack, No.1STEERING RACK, NO.1 [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
45535-69025 |
from US $13.87 |
||
|
45535A
|
45535A
90460-60008 Clamp(For Steering Rack Boot)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90460-60008 |
from US $2.64 |
||
|
45535B
|
45535B
90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90467-19021 |
from US $1.31 |
||
|
45536
|
45536
45535-69015 Boot, Steering Rack, No.2STEERING RACK, NO.2 [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
45535-69015 |
from US $13.85 |
||
|
9011914138
|
9011914138
90119-14138 BOLT WWASHER |
90119-14138 |
US $9.68 |
||
|
9017016016
|
9017016016
90170-16016 NUT HEXAGON |
90170-16016 |
US $2.33 |
||
|
9415121441
|
9415121441
94151-21441 NUT FLANGE |
94151-21441 |
from US $1.12 |
||
|
9538103225
|
9538103225
95381-03225 PIN COTTER |
95381-03225 |
from US $0.68 |
||
