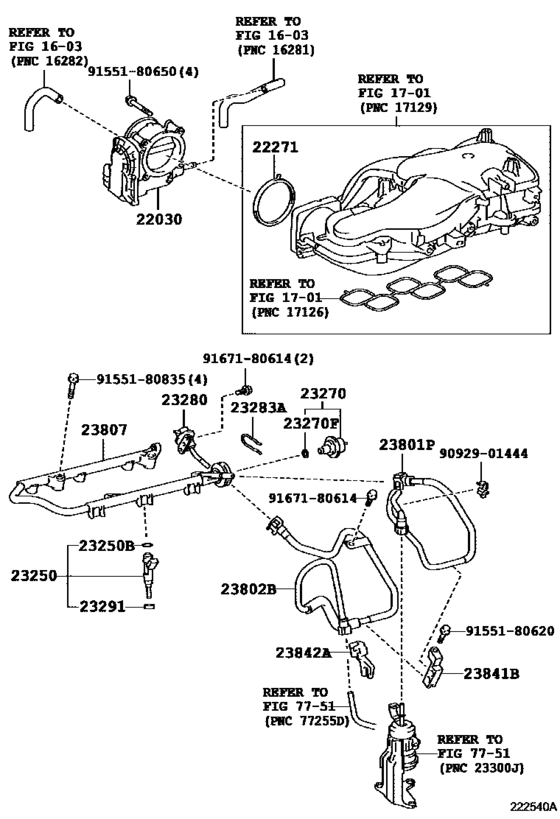

Fuel Injection System ([08.2009 - ] (0908- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 11.2010
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22030
|
22030
22030-31060 Body Assy, Throttle W/motorTHROTTLE W/MOTOR [11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
22030-31060 |
from US $690.14 |
||
|
22271
|
22271
22271-31040 Gasket, Throttle Body[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
22271-31040 |
from US $3.55 |
||
|
23250
|
23250
23209-39215
Injector Assy, Fuel
[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
23209-39215 |
— | ||
| replacement | |||||
|
23250
|
23250
23209-39445 Injector Set Fuel[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
23209-39445 |
from US $169.06 |
||
|
23250B
|
23250B
90301-07033 Ring, O(For Fuel Injector)[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
90301-07033 |
from US $2.13 |
||
|
23270
|
23270
23270-31080
Damper Assy, Fuel Pressure Pulsation
[11.2010 - 01.2012] 1GRFE..GSJ15 |
23270-31080 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-31140 Damper Assy, Fuel Pressure Pulsation[11.2010 - 01.2012] 1GRFE..GSJ15 |
23270-31140 |
from US $48.05 |
||
|
23270
|
23270
23270-31140 Damper Assy, Fuel Pressure Pulsation[01.2012 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
23270-31140 |
from US $48.05 |
||
|
23270F
|
23270F
90301-07033 Ring, O(For Fuel Injector)[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
90301-07033 |
from US $2.13 |
||
|
23280
|
23280
23280-31050 Regulator Assy, Fuel PressureFUEL PRESSURE [11.2010 - 01.2012] 1GRFE..GSJ15 |
23280-31050 |
US $107.74 |
||
| replacement | |||||
|
23280
|
23280
23280-31051 Regulator Assy, Fuel Pressure[11.2010 - 01.2012] 1GRFE..GSJ15 |
23280-31051 |
from US $60.82 |
||
|
23280
|
23280
23280-31051 Regulator Assy, Fuel Pressure[01.2012 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
23280-31051 |
from US $60.82 |
||
|
23283A
|
23283A
23283-31010 Holder, Fuel Pressure Regulator[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
23283-31010 |
US $2.27 |
||
|
23291
|
23291
23291-23010 Insulator, Injector Vibration[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
23291-23010 |
from US $2.51 |
||
|
23801P
|
23801P
23801-31160 Pipe Sub-Assy, Fuel, No.1FUEL, NO.1 [11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
23801-31160 |
from US $29.26 |
||
|
23802B
|
23802B
23802-31110 Pipe Sub-Assy, Fuel, No.2FUEL, NO.2 [11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
23802-31110 |
from US $36.69 |
||
|
23807
|
23807
23807-31120 Pipe Sub-Assy, Fuel DeliveryFUEL DELIVERY [11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
23807-31120 |
from US $43.51 |
||
|
23841B
|
23841B
23841-31080 Clamp, Fuel Pipe, No.1(For Efi)FUEL PIPE, NO.1(FOR EFI) [11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
23841-31080 |
US $2.62 |
||
|
23842A
|
23842A
23842-50010 Clamp, Fuel Pipe, No.2(For Efi)FUEL PIPE, NO.2(FOR EFI) [11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
23842-50010 |
US $6.87 |
||
|
9092901444
|
9092901444
90929-01444 Clamp Or Clip, Fuel Hose(For Efi) |
90929-01444 |
from US $1.77 |
||
|
9155180620
|
9155180620
91551-80620 Bolt |
91551-80620 |
from US $0.63 |
||
|
9155180650
|
9155180650
91551-80650 BOLT FLANGE |
91551-80650 |
from US $0.78 |
||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $0.78 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
