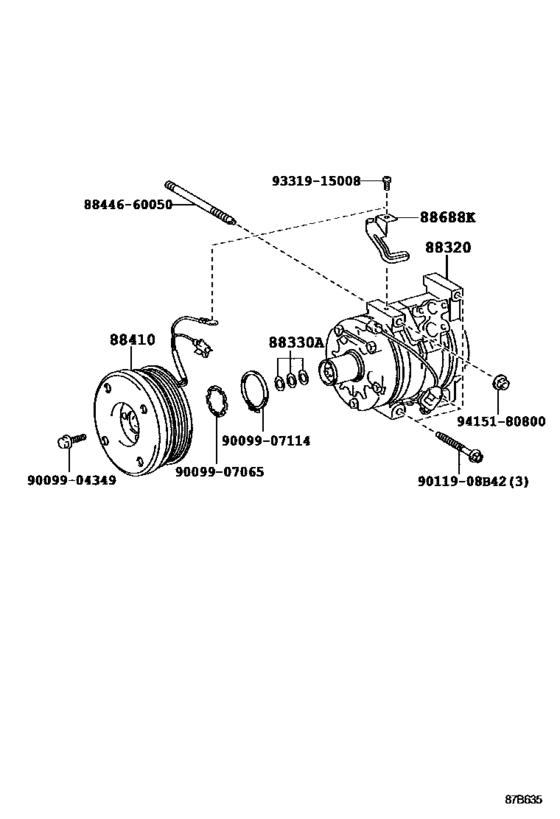

Heating & Air Conditioning - Compressor ([08.2009 - ] (0908- )ARL,CHI,GEN,SA) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 11.2010
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-6A540
Compressor Assy, Cooler
[11.2010 -] GSJ15..CHI,GEN,SA |
88320-6A540 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
88335-14020 |
from US $1.24 |
||
|
88410
|
88410
88410-2F010 Clutch Assy, Magnet[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
88410-2F010 |
from US $366.91 |
||
|
88688K
|
88688K
88688-6B260 Bracket, Cooler CompressorCOOLER COMPRESSOR [11.2010 -] GSJ15..CHI,GEN,SA |
88688-6B260 |
US $6.08 |
||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.12 |
||
|
8844660050
|
8844660050
88446-60050 Bolt, Idle Pulley |
88446-60050 |
US $11.97 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.10 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.03 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
