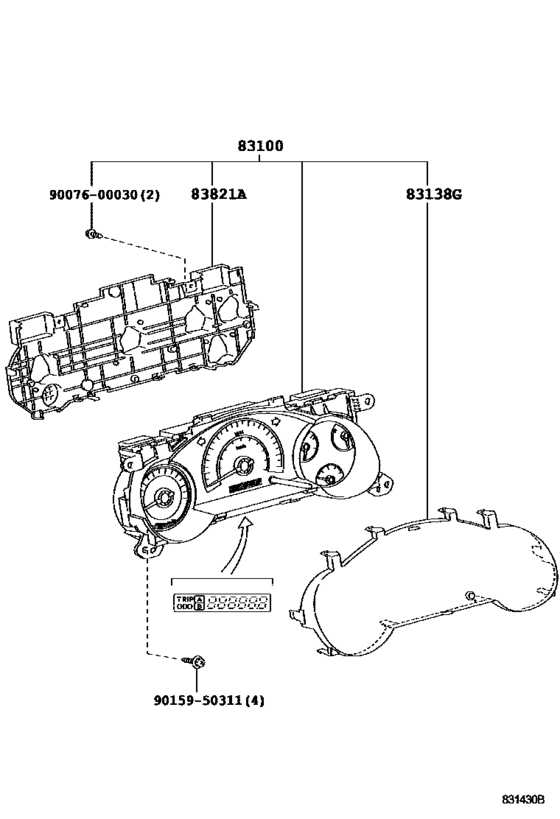

Meter ([07.2007 - ] COMBINATION METER (0707- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 11.2010
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100
|
83100
83800-35M50
Meter Assy, Combination
[11.2010 - 08.2011] GSJ15..GEN..RHD |
83800-35M50 |
— | ||
|
83100
|
83100
83800-35P50
Meter Assy, Combination
[08.2011 - 08.2012] GSJ15..GEN..RHD |
83800-35P50 |
— | ||
|
83100
|
83100
83800-35P51
Meter Assy, Combination
[08.2012 - 08.2014] GSJ15..GEN..RHD |
83800-35P51 |
— | ||
|
83100
|
83100
83800-35R10
Meter Assy, Combination
[08.2014 - 06.2015] GSJ15..GEN..RHD |
83800-35R10 |
— | ||
| replacement | |||||
|
83100
|
83100
83800-35R11
Meter Assy, Combination
[08.2014 - 06.2015] GSJ15..GEN..RHD |
83800-35R11 |
— | ||
|
83100
|
83100
83800-35R11
Meter Assy, Combination
[07.2015 - 08.2016] GSJ15..GEN..RHD |
83800-35R11 |
— | ||
|
83100
|
83100
83800-35R12
Meter Assy, Combination
[08.2016 -] GSJ15..GEN..RHD |
83800-35R12 |
— | ||
|
83138G
|
83138G
83852-35G20 Glass, Combination MeterCOMBINATION METER [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
83852-35G20 |
from US $21.14 |
||
|
83821A
|
83821A
83821-35G20 Cover, Combination Meter, No.1COMBINATION METER, NO.1 [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
83821-35G20 |
US $21.55 |
||
|
9007600030
|
9007600030
90076-00030 New Genuine Part |
90076-00030 |
US $0.44 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.70 |
||
