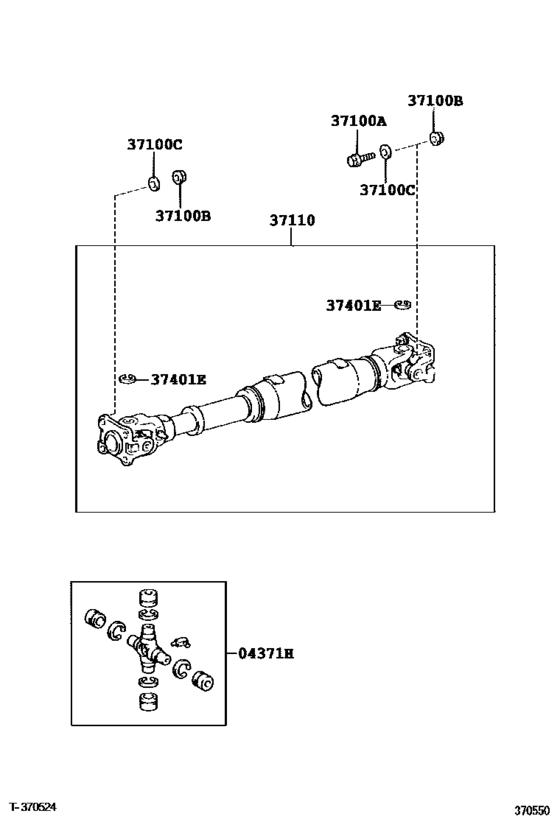

Propeller Shaft & Universal Joint ([07.2007 - ] REAR (0707- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 11.2010
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04371H
|
04371H
04371-60070 Spider Kit, Propeller Shaft Universal Joint[11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) |
04371-60070 |
from US $49.25 |
||
|
37100A
|
37100A
90105-11044 Bolt, No.1 (For Propeller Shaft & Differential Setting)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90105-11044 |
from US $1.10 |
||
|
37100B
|
37100B
90178-11001 Nut, No.1 (For Propeller Shaft & Differential Setting)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90178-11001 |
from US $0.89 |
||
|
37100C
|
37100C
90201-11013 Washer, No.1 (For Propeller Shaft & Differential Setting)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90201-11013 |
from US $0.67 |
||
|
37110
|
37110
37110-35A00 Shaft Assy, PropellerPROPELLER [11.2010 - 10.2012] GSJ15 |
37110-35A00 |
from US $675.60 |
||
|
37110
|
37110
37110-35B00 Shaft Assy, Propeller[11.2012 -] GSJ15..ATM..(CHI,GCC,GEN,SA) |
37110-35B00 |
from US $686.05 |
||
|
37401E
|
37401E
90520-25039 Ring, Hole Snap (For Spider Bearing)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.29,MARK 1 |
90520-25039 |
US $1.61 |
||
|
37401E
|
37401E
90520-25040 Ring, Hole Snap (For Spider Bearing)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.31,MARK 2 |
90520-25040 |
US $1.16 |
||
|
37401E
|
37401E
90520-25041 Ring, Hole Snap (For Spider Bearing)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.33,NO MARK |
90520-25041 |
US $1.10 |
||
|
37401E
|
37401E
90520-25042 Ring, Hole Snap (For Spider Bearing)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.35,BROWN |
90520-25042 |
US $1.61 |
||
|
37401E
|
37401E
90520-25043 Ring, Hole Snap (For Spider Bearing)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.37,BLUE |
90520-25043 |
US $1.61 |
||
|
37401E
|
37401E
90520-25044 Ring, Hole Snap (For Spider Bearing)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.39,MARK 6 |
90520-25044 |
US $1.16 |
||
|
37401E
|
37401E
90520-25045 Ring, Hole Snap (For Spider Bearing)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.41,MARK 7 |
90520-25045 |
US $1.61 |
||
|
37401E
|
37401E
90520-25046 Ring, Hole Snap (For Spider Bearing)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.43,MARK 8 |
90520-25046 |
US $1.61 |
||
|
37401E
|
37401E
90520-25047 Ring, Hole Snap (For Spider Bearing)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.45,MARK 9 |
90520-25047 |
US $1.61 |
||
|
37401E
|
37401E
90520-25048 Ring, Hole Snap (For Spider Bearing)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.47,MARK 10 |
90520-25048 |
US $1.16 |
||
|
37401E
|
37401E
90520-25049 Ring, Hole Snap (For Spider Bearing)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.49,MARK A |
90520-25049 |
US $1.16 |
||
|
37401E
|
37401E
90520-25050 Ring, Hole Snap (For Spider Bearing)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.51,MARK B |
90520-25050 |
US $1.61 |
||
|
37401E
|
37401E
90520-25051 Ring, Hole Snap (For Spider Bearing)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.53,MARK C |
90520-25051 |
US $1.16 |
||
|
37401E
|
37401E
90520-25052 Ring, Hole Snap (For Spider Bearing)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.55,MARK D |
90520-25052 |
US $1.61 |
||
|
37401E
|
37401E
90520-25053 Ring, Hole Snap (For Spider Bearing)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.57,MARK E |
90520-25053 |
US $1.61 |
||
|
37401E
|
37401E
90520-25054 Ring, Hole Snap (For Spider Bearing)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.19,MARK D |
90520-25054 |
US $0.44 |
||
|
37401E
|
37401E
90520-25055 Ring, Hole Snap (For Spider Bearing)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.21,MARK E |
90520-25055 |
US $0.73 |
||
|
37401E
|
37401E
90520-25056 Ring, Hole Snap (For Spider Bearing)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.23,MARK F |
90520-25056 |
US $0.69 |
||
|
37401E
|
37401E
90520-25057 Ring, Hole Snap (For Spider Bearing)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.25,MARK G |
90520-25057 |
US $0.69 |
||
|
37401E
|
37401E
90520-25058 Ring, Hole Snap (For Spider Bearing)[11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.27,MARK H |
90520-25058 |
US $0.69 |
