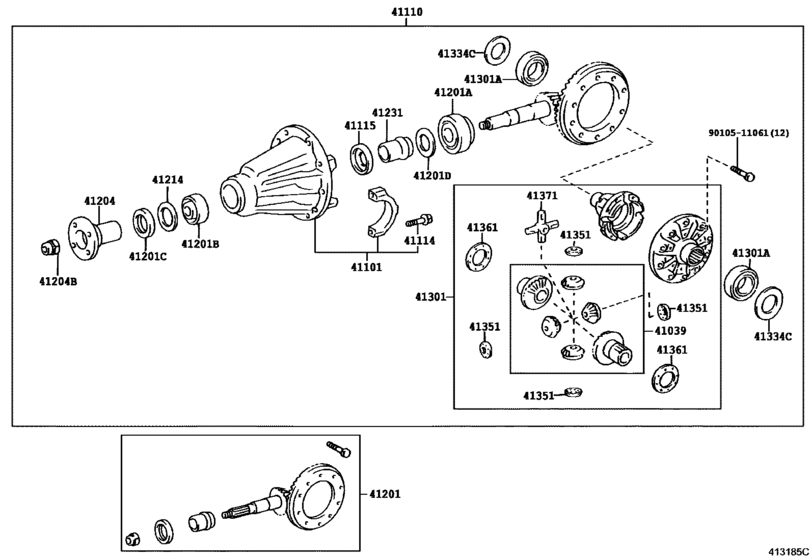

Rear Axle Housing & Differential ([08.2009 - ] (0908- )ATM..GCC ; (0908- )ARL,CHI,GEN) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 11.2010
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41039
|
41039
41039-34060 Gear Kit, Differential, Rear[11.2010 -] GSJ15..MTM..GCC;GSJ15..CHI,GEN,SA; GSJ15..ATM..GCC DIFFERENTIAL LOCK-WITH |
41039-34060 |
from US $333.34 |
||
|
41101
|
41101
41101-35190 Carrier Sub-Assy, Differential, RearDIFFERENTIAL, REAR [11.2010 -] GSJ15..MTM..GCC;GSJ15..CHI,GEN,SA; GSJ15..ATM..GCC DIFFERENTIAL LOCK-WITH |
41101-35190 |
US $413.50 |
||
|
41110
|
41110
41110-35D30 Carrier Assy, Differential, RearDIFFERENTIAL, REAR [11.2010 -] GSJ15..ATM..(CHI,GEN,SA) *FGR=41:11=3.727; GSJ15..ATM..GCC *FGR=41:11=3.727,DIFFERENTIAL LOCK-WITH |
41110-35D30 |
from US $1,563.83 |
||
|
41114
|
41114
41114-60020 Bolt, Rear Differential Bearing Cap[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
41114-60020 |
US $3.49 |
||
|
41115
|
41115
41115-35020 Ring, Differential Oil StorageDIFFERENTIAL OIL STORAGE [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
41115-35020 |
US $2.62 |
||
|
41201
|
41201
41201-80566 Final Gear Kit, Differential, RearDIFFERENTIAL, REAR [11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) *FGR=41:11=3.727 |
41201-80566 |
US $567.84 |
||
|
41201A
|
41201A
90366-40132 Bearing (For Rear Drive Pinion Rear)TAPERED ROLLER (FOR REAR DRIVE PINION REAR) [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90366-40132 |
from US $61.32 |
||
|
41201B
|
41201B
90366-35157 Bearing (For Rear Drive Pinion Front)TAPERED ROLLER (FOR REAR DRIVE PINION FRONT) [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90366-35157 |
from US $27.96 |
||
|
41201C
|
41201C
90311-44008 Seal, Oil (For Rear Differential Carrier)OIL (FOR REAR DIFFERENTIAL CARRIER) [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90311-44008 |
from US $12.19 |
||
|
41201D
|
41201D
90564-64062 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.85 |
90564-64062 |
US $4.02 |
||
|
41201D
|
41201D
90564-64063 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 - 08.2011] GSJ15 T=1.86 |
90564-64063 |
US $5.53 |
||
|
41201D
|
41201D
90564-64064 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.87 |
90564-64064 |
US $4.08 |
||
|
41201D
|
41201D
90564-64065 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 - 08.2011] GSJ15 T=1.88 |
90564-64065 |
US $5.53 |
||
|
41201D
|
41201D
90564-64066 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.89 |
90564-64066 |
US $4.02 |
||
|
41201D
|
41201D
90564-64067 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 - 08.2011] GSJ15 T=1.90 |
90564-64067 |
US $5.53 |
||
|
41201D
|
41201D
90564-64068 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.91 |
90564-64068 |
US $4.08 |
||
|
41201D
|
41201D
90564-64069 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 - 08.2011] GSJ15 T=1.92 |
90564-64069 |
US $5.53 |
||
|
41201D
|
41201D
90564-64070 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.93 |
90564-64070 |
US $4.02 |
||
|
41201D
|
41201D
90564-64071 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 - 08.2011] GSJ15 T=1.94 |
90564-64071 |
US $5.53 |
||
|
41201D
|
41201D
90564-64072 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.95 |
90564-64072 |
US $4.08 |
||
|
41201D
|
41201D
90564-64073 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 - 08.2011] GSJ15 T=1.96 |
90564-64073 |
US $5.53 |
||
|
41201D
|
41201D
90564-64074 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.97 |
90564-64074 |
US $4.02 |
||
|
41201D
|
41201D
90564-64075 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 - 08.2011] GSJ15 T=1.98 |
90564-64075 |
US $5.53 |
||
|
41201D
|
41201D
90564-64076 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 -] GSJ15..CHI,GCC,GEN,SA T=1.99 |
90564-64076 |
US $4.08 |
||
|
41201D
|
41201D
90564-64077 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 - 08.2011] GSJ15 T=2.00 |
90564-64077 |
US $5.53 |
||
|
41201D
|
41201D
90564-64078 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.01 |
90564-64078 |
US $4.08 |
||
|
41201D
|
41201D
90564-64079 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 - 08.2011] GSJ15 T=2.02 |
90564-64079 |
US $5.53 |
||
|
41201D
|
41201D
90564-64080 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.03 |
90564-64080 |
US $4.08 |
||
|
41201D
|
41201D
90564-64081 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 - 08.2011] GSJ15 T=2.04 |
90564-64081 |
US $5.53 |
||
|
41201D
|
41201D
90564-64082 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.05 |
90564-64082 |
US $4.08 |
||
|
41201D
|
41201D
90564-64083 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 - 08.2011] GSJ15 T=2.06 |
90564-64083 |
US $5.53 |
||
|
41201D
|
41201D
90564-64084 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.07 |
90564-64084 |
US $4.08 |
||
|
41201D
|
41201D
90564-64085 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 - 08.2011] GSJ15 T=2.08 |
90564-64085 |
US $5.53 |
||
|
41201D
|
41201D
90564-64086 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.09 |
90564-64086 |
US $4.08 |
||
|
41201D
|
41201D
90564-64087 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 - 08.2011] GSJ15 T=2.10 |
90564-64087 |
US $5.53 |
||
|
41201D
|
41201D
90564-64088 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.11 |
90564-64088 |
US $4.08 |
||
|
41201D
|
41201D
90564-64089 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 - 08.2011] GSJ15 T=2.12 |
90564-64089 |
US $5.53 |
||
|
41201D
|
41201D
90564-64090 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.13 |
90564-64090 |
US $4.08 |
||
|
41201D
|
41201D
90564-64091 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 - 08.2011] GSJ15 T=2.14 |
90564-64091 |
US $5.53 |
||
|
41201D
|
41201D
90564-64092 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.15 |
90564-64092 |
US $4.08 |
||
|
41201D
|
41201D
90564-64093 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 - 08.2011] GSJ15 T=2.16 |
90564-64093 |
US $5.53 |
||
|
41201D
|
41201D
90564-64094 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.17 |
90564-64094 |
US $4.08 |
||
|
41201D
|
41201D
90564-64095 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 - 08.2011] GSJ15 T=2.18 |
90564-64095 |
US $5.53 |
||
|
41201D
|
41201D
90564-64096 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.19 |
90564-64096 |
US $4.08 |
||
|
41201D
|
41201D
90564-64097 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 - 08.2011] GSJ15 T=2.20 |
90564-64097 |
US $5.53 |
||
|
41201D
|
41201D
90564-64098 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.21 |
90564-64098 |
US $4.08 |
||
|
41201D
|
41201D
90564-64099 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 - 08.2011] GSJ15 T=2.22 |
90564-64099 |
US $5.53 |
||
|
41201D
|
41201D
90564-64100 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.23 |
90564-64100 |
US $4.08 |
||
|
41201D
|
41201D
90564-64101 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 - 08.2011] GSJ15 T=2.24 |
90564-64101 |
US $5.53 |
||
|
41201D
|
41201D
90564-64102 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.25 |
90564-64102 |
US $4.08 |
||
|
41201D
|
41201D
90564-64103 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 - 08.2011] GSJ15 T=2.26 |
90564-64103 |
US $5.53 |
||
|
41201D
|
41201D
90564-64104 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.27 |
90564-64104 |
US $4.08 |
||
|
41201D
|
41201D
90564-64105 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 - 08.2011] GSJ15 T=2.28 |
90564-64105 |
US $5.53 |
||
|
41201D
|
41201D
90564-64106 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.29 |
90564-64106 |
US $4.08 |
||
|
41201D
|
41201D
90564-64107 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 - 08.2011] GSJ15 T=2.30 |
90564-64107 |
US $5.53 |
||
|
41201D
|
41201D
90564-64108 Washer, Plate (For Rear Differential Drive Pinion)PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) [11.2010 -] GSJ15..CHI,GCC,GEN,SA T=2.31 |
90564-64108 |
US $4.08 |
||
|
41204
|
41204
41204-35120 Flange Sub-Assy, Rear Drive Pinion Companion, RearREAR DRIVE PINION COMPANION, REAR [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
41204-35120 |
US $57.08 |
||
|
41204B
|
41204B
90179-22029 Nut (For Rear Drive Pinion)[11.2010 -] GSJ15..CHI,GCC,GEN,SA OD=43 |
90179-22029 |
from US $2.74 |
||
|
41214
|
41214
41214-35030 Slinger, Rear Differential Drive Pinion OilREAR DIFFERENTIAL DRIVE PINION OIL [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
41214-35030 |
US $4.08 |
||
|
41231
|
41231
41231-35050 Spacer, Rear Differential Drive Pinion BearingREAR DIFFERENTIAL DRIVE PINION BEARING [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
41231-35050 |
from US $10.74 |
||
|
41301
|
41301
41301-35200 Case Sub-Assy, Rear DifferentialREAR DIFFERENTIAL [11.2010 -] GSJ15..MTM..GCC;GSJ15..CHI,GEN,SA; GSJ15..ATM..GCC DIFFERENTIAL LOCK-WITH |
41301-35200 |
US $405.35 |
||
|
41301A
|
41301A
90366-50007 Bearing(For Rear Differential Case)[11.2010 -] GSJ15..MTM..GCC;GSJ15..CHI,GEN,SA RH; GSJ15..ATM..GCC DIFFERENTIAL LOCK-WITH,RH |
90366-50007 |
from US $43.26 |
||
|
41301A
|
41301A
90366-75001 Bearing(For Rear Differential Case)[11.2010 -] GSJ15..MTM..GCC;GSJ15..CHI,GEN,SA LH; GSJ15..ATM..GCC DIFFERENTIAL LOCK-WITH,LH |
90366-75001 |
from US $26.71 |
||
|
41351
|
41351
41351-30060 Washer, Rear Differential Pinion Thrust[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
41351-30060 |
from US $2.01 |
||
|
41361
|
41361
41361-35310 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 -] GSJ15..MTM..GCC;GSJ15..CHI,GEN,SA T=0.9,RH,ID=46; GSJ15..ATM..GCC T=0.9,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
41361-35310 |
from US $3.32 |
||
|
41361
|
41361
41361-35320 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 -] GSJ15..MTM..GCC;GSJ15..CHI,GEN,SA T=1.0,RH,ID=46; GSJ15..ATM..GCC T=1.0,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
41361-35320 |
US $3.32 |
||
|
41361
|
41361
41361-35330 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 -] GSJ15..MTM..GCC;GSJ15..CHI,GEN,SA T=1.1,RH,ID=46; GSJ15..ATM..GCC T=1.1,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
41361-35330 |
from US $3.49 |
||
|
41361
|
41361
41361-35340 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 -] GSJ15..MTM..GCC;GSJ15..CHI,GEN,SA T=1.2,RH,ID=46; GSJ15..ATM..GCC T=1.2,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
41361-35340 |
US $4.02 |
||
|
41361
|
41361
41361-35350 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 -] GSJ15..MTM..GCC;GSJ15..CHI,GEN,SA T=1.3,RH,ID=46; GSJ15..ATM..GCC T=1.3,DIFFERENTIAL LOCK-WITH,RH,ID=46 |
41361-35350 |
US $4.72 |
||
|
41361
|
41361
41361-60290 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 -] GSJ15..MTM..GCC;GSJ15..CHI,GEN,SA T=0.90,RH & LH,ID=54; GSJ15..ATM..(ARL,GCC) T=0.90,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
41361-60290 |
US $3.30 |
||
|
41361
|
41361
41361-60300 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 -] GSJ15..MTM..GCC;GSJ15..CHI,GEN,SA T=1.00,RH & LH,ID=54; GSJ15..ATM..(ARL,GCC) T=1.00,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
41361-60300 |
from US $4.54 |
||
|
41361
|
41361
41361-60310 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 -] GSJ15..MTM..GCC;GSJ15..CHI,GEN,SA T=1.10,RH & LH,ID=54; GSJ15..ATM..(ARL,GCC) T=1.10,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
41361-60310 |
from US $3.30 |
||
|
41361
|
41361
41361-60320 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 -] GSJ15..MTM..GCC;GSJ15..CHI,GEN,SA T=1.20,RH & LH,ID=54; GSJ15..ATM..(ARL,GCC) T=1.20,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
41361-60320 |
from US $5.11 |
||
|
41361
|
41361
41361-60330 Washer, Rear Differential Side Gear Thrust, No.1[11.2010 -] GSJ15..MTM..GCC;GSJ15..CHI,GEN,SA T=1.30,RH & LH,ID=54; GSJ15..ATM..(ARL,GCC) T=1.30,DIFFERENTIAL LOCK-WITH,RH & LH,ID=54 |
41361-60330 |
from US $3.99 |
||
|
41371
|
41371
41371-35040 Spider, Rear DifferentialREAR DIFFERENTIAL [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
41371-35040 |
US $25.04 |
||
|
9010511061
|
9010511061
90105-11061 New Genuine Part |
90105-11061 |
US $2.51 |
