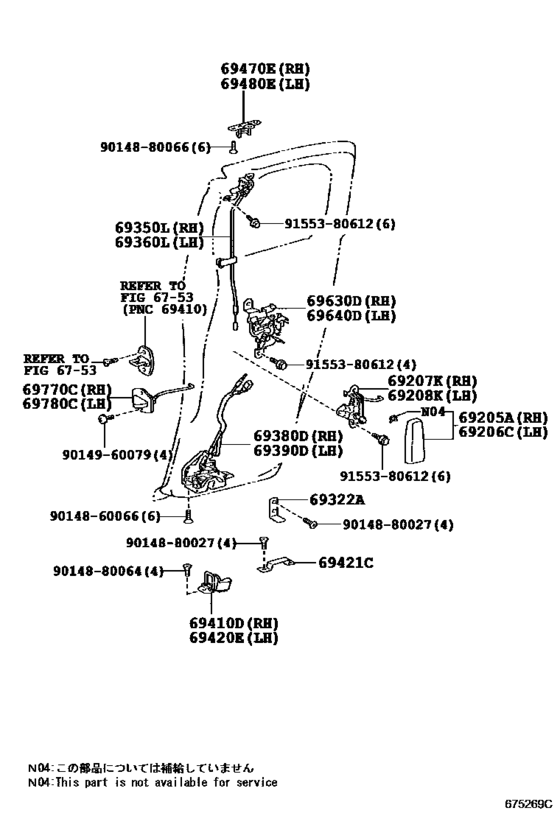

Rear Door Lock & Handle ([07.2007 - ] (0707- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 11.2010
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69205A
|
69205A
69205-35010-B0 Handle Sub-Assy, Rear Door Inside, RhREAR DOOR INSIDE, RH [11.2010 -] GSJ15..GCC,GEN DK.GRAY,TRIM1# |
69205-35010-B0 |
from US $16.59 |
||
|
69206C
|
69206C
69205-35010-B0 Handle Sub-Assy, Rear Door Inside, RhREAR DOOR INSIDE, RH [11.2010 -] GSJ15..GCC,GEN DK.GRAY,TRIM1# |
69205-35010-B0 |
from US $16.59 |
||
|
69207K
|
69207K
69207-35010 Handle Sub-Assy, Access Panel Inside, RhACCESS PANEL INSIDE, RH [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
69207-35010 |
US $27.37 |
||
|
69208K
|
69208K
69208-35010 Handle Sub-Assy, Access Panel Inside, LhACCESS PANEL INSIDE, LH [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
69208-35010 |
US $27.37 |
||
|
69322A
|
69322A
69322-35010 Stop, Access Panel Lower LockACCESS PANEL LOWER LOCK [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
69322-35010 |
US $8.88 |
||
|
69350L
|
69350L
69350-35030 Lock Assy, Access Panel, Upper RhACCESS PANEL, UPPER RH [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
69350-35030 |
US $81.54 |
||
|
69360L
|
69360L
69360-35010 Lock Assy, Access Panel, Upper LhACCESS PANEL, UPPER LH [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
69360-35010 |
US $81.54 |
||
|
69380D
|
69380D
69380-35020 Lock Assy, Access Panel, Lower RhACCESS PANEL, LOWER RH [11.2010 - 02.2013] GSJ15 |
69380-35020 |
US $109.20 |
||
| replacement | |||||
|
69380D
|
69380D
69380-35021 Lock Assy, Access Panel, Lower Rh[11.2010 - 02.2013] GSJ15 |
69380-35021 |
US $81.54 |
||
|
69380D
|
69380D
69380-35021 Lock Assy, Access Panel, Lower Rh[03.2013 -] GSJ15..CHI,GCC,GEN,SA |
69380-35021 |
US $81.54 |
||
|
69390D
|
69390D
69390-35040 Lock Assy, Access Panel, Lower LhACCESS PANEL, LOWER LH [11.2010 - 02.2013] GSJ15 |
69390-35040 |
US $109.20 |
||
| replacement | |||||
|
69390D
|
69390D
69390-35041 Lock Assy, Access Panel, Lower Lh[11.2010 - 02.2013] GSJ15 |
69390-35041 |
from US $81.54 |
||
|
69390D
|
69390D
69390-35041 Lock Assy, Access Panel, Lower Lh[03.2013 -] GSJ15..CHI,GCC,GEN,SA |
69390-35041 |
from US $81.54 |
||
|
69410D
|
69410D
69410-35050 Plate Assy, Access Panel Lock StrikerACCESS PANEL LOCK STRIKER [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
69410-35050 |
from US $29.01 |
||
|
69420E
|
69420E
69420-35040 Spacer, Rear Door Look StrikerREAR DOOR LOOK STRIKER [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
69420-35040 |
from US $29.01 |
||
|
69421C
|
69421C
69421-35010 Catch, Door Lock Striker PlateDOOR LOCK STRIKER PLATE [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
69421-35010 |
US $8.39 |
||
|
69470E
|
69470E
69470-35020 Striker Assy, Access Panel Upper Lock, RhACCESS PANEL UPPER LOCK, RH [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
69470-35020 |
US $18.93 |
||
|
69480E
|
69480E
69480-35020 Striker Assy, Access Panel Upper Lock, LhACCESS PANEL UPPER LOCK, LH [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
69480-35020 |
US $18.93 |
||
|
69630D
|
69630D
69630-35010 Control Assy, Access Panel Lock Remote, RhACCESS PANEL LOCK REMOTE, RH [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
69630-35010 |
US $50.23 |
||
|
69640D
|
69640D
69640-35010 Control Assy, Access Panel Lock Remote, LhACCESS PANEL LOCK REMOTE, LH [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
69640-35010 |
US $50.23 |
||
|
69770C
|
69770C
69770-35020 Lever Assy, Access Panel Lock Cancel, RhACCESS PANEL LOCK CANCEL, RH [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
69770-35020 |
US $9.90 |
||
|
69780C
|
69780C
69780-35010
Lever Assy, Access Panel Lock Cancel, Lh
[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
69780-35010 |
— | ||
|
9014860066
|
9014860066
90148-60066 New Genuine Part |
90148-60066 |
US $0.52 |
||
|
9014880027
|
9014880027
90148-80027 Screw Hex Lobular |
90148-80027 |
US $8.06 |
||
|
9014880064
|
9014880064
90148-80064 SCREW HEXALOBULAR |
90148-80064 |
US $0.96 |
||
|
9014880066
|
9014880066
90148-80066 SCREW HEXALOBULAR |
90148-80066 |
from US $0.65 |
||
|
9014960079
|
9014960079
90149-60079 SCREW |
90149-60079 |
US $1.61 |
||
|
9155380612
|
9155380612
91553-80612 BOLT FLANGE |
91553-80612 |
from US $0.61 |
||
