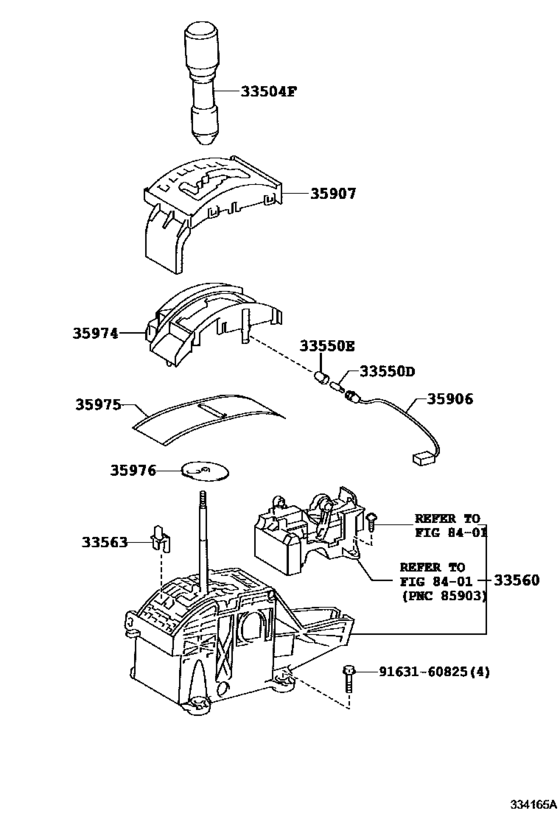

Shift Lever & Retainer ([11.2010 - ] (1011- )RHD) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 11.2010
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-35091-B0 Knob Sub-Assy, Shift Lever[11.2010 - 02.2011] GSJ15..ATM..(ARL,GCC,GEN) DK.GRAY,TRIM1#; GSJ15..CHI WITHOUT(COLOR PACKAGE),DK.GRAY,TRIM1# |
33504-35091-B0 |
US $40.48 |
||
| replacement | |||||
|
33504F
|
33504F
33504-35093-B0 Knob Sub-Assy, Shift Lever[11.2010 - 02.2011] GSJ15..ATM..(ARL,GCC,GEN) DK.GRAY,TRIM1#; GSJ15..CHI WITHOUT(COLOR PACKAGE),DK.GRAY,TRIM1# |
33504-35093-B0 |
US $42 |
||
|
33504F
|
33504F
33504-35093-B0 Knob Sub-Assy, Shift Lever[02.2011 -] GSJ15..ATM..(GCC,GEN) DK.GRAY,TRIM1# |
33504-35093-B0 |
US $42 |
||
|
33504F
|
33504F
33504-35101-B0 Knob Sub-Assy, Shift Lever[11.2010 - 02.2011] GSJ15..CHI,SA DK.GRAY,TRIM1#; GSJ15..ATM..(ARL,GCC,GEN) IMAGE PACKAGE,DK.GRAY,TRIM1#; GSJ15..ATM..GCC COLOR PACKAGE(FOR GCC),DK.GRAY,TRIM1# |
33504-35101-B0 |
US $40.48 |
||
| replacement | |||||
|
33504F
|
33504F
33504-35103-B0 Knob Sub-Assy, Shift Lever[11.2010 - 02.2011] GSJ15..CHI,SA DK.GRAY,TRIM1#; GSJ15..ATM..(ARL,GCC,GEN) IMAGE PACKAGE,DK.GRAY,TRIM1#; GSJ15..ATM..GCC COLOR PACKAGE(FOR GCC),DK.GRAY,TRIM1# |
33504-35103-B0 |
from US $42 |
||
|
33504F
|
33504F
33504-35103-B0 Knob Sub-Assy, Shift Lever[02.2011 -] GSJ15..CHI,SA DK.GRAY,TRIM1#; GSJ15..ATM..(GCC,GEN) IMAGE PACKAGE,DK.GRAY,TRIM1#; GSJ15..ATM..GCC COLOR PACKAGE(FOR GCC),DK.GRAY,TRIM1# |
33504-35103-B0 |
from US $42 |
||
|
33550D
|
33550D
90981-11018 Bulb, Position Indicator Lamp[11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.01 |
||
|
33550E
|
33550E
35956-35020 Cap, Position Indicator LampPOSITION INDICATOR LAMP [11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) |
35956-35020 |
US $2.27 |
||
|
33560
|
33560
33560-35060 Unit Assy, Shift Lock Control[11.2010 -] GSJ15..(GEN,SA)..RHD |
33560-35060 |
US $247.52 |
||
|
33563
|
33563
33563-35140 Button, Shift Lock Release[11.2010 -] GSJ15..(GEN,SA)..RHD |
33563-35140 |
US $2.62 |
||
|
35906
|
35906
35906-35120 Wire Sub-Assy, Indicator LampINDICATOR LAMP [11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) |
35906-35120 |
US $9.09 |
||
|
35907
|
35907
35907-35310 Housing Sub-Assy, Position Indicator (For Floor Shift)[11.2010 -] GSJ15..(GEN,SA)..RHD |
35907-35310 |
US $70.62 |
||
|
35974
|
35974
35974-35200 Housing, Position Indicator, Lower[11.2010 -] GSJ15..(GEN,SA)..RHD |
35974-35200 |
US $24.02 |
||
|
35975
|
35975
35975-35150 Cover, Slide (For Position Indicator)SLIDE (FOR POSITION INDICATOR) [11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) |
35975-35150 |
from US $8.21 |
||
|
35976
|
35976
35976-35100 Cover, Slide, No.2 (For Position Indicator)SLIDE, NO.2 (FOR POSITION INDICATOR) [11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) |
35976-35100 |
US $5.59 |
||
|
9163160825
|
9163160825
91631-60825 BOLT WWASHER |
91631-60825 |
from US $0.78 |
||
