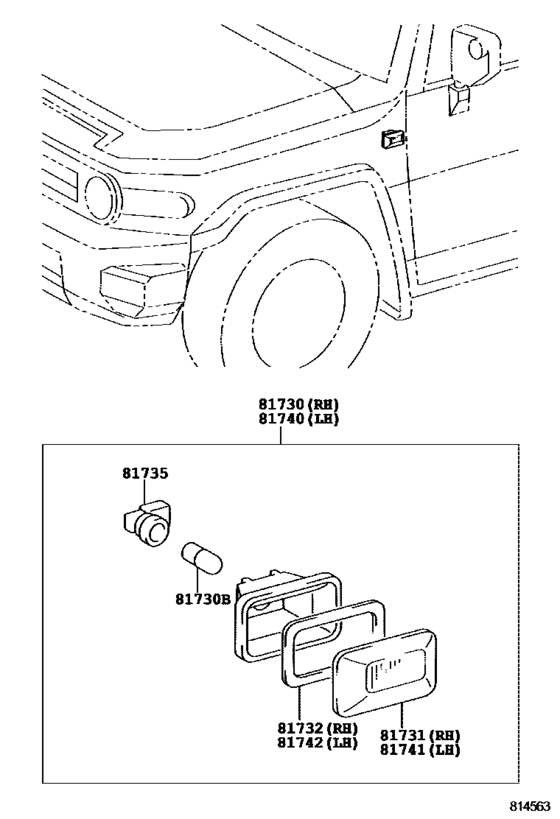

Side Turn Signal Lamp & Outer Mirror Lamp ([08.2009 - ] (0712- )CHI ; (0908- )ARL,GEN,SA) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 11.2010
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81730
|
81730
81730-20192
Lamp Assy, Side Turn Signal
[11.2010 -] GSJ15..CHI;GSJ15..(GEN,SA)..RHD |
81730-20192 |
— | ||
|
81730B
|
81730B
99132-12050 Bulb (12V 5W)[11.2010 -] GSJ15..CHI;GSJ15..(GEN,SA)..RHD 12V 5W |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81730B
|
81730B
90080-81053 Bulb(For Clearance Lamp)[11.2010 -] GSJ15..CHI;GSJ15..(GEN,SA)..RHD 12V 5W |
90080-81053 |
US $0.99 |
||
|
81731
|
81731
81731-20192 Lens, Side Turn Signal Lamp[11.2010 -] GSJ15..CHI;GSJ15..(GEN,SA)..RHD |
81731-20192 |
from US $11.19 |
||
|
81732
|
81732
81732-20190 Gasket, Side Turn Signal Lamp Lens[11.2010 -] GSJ15..CHI;GSJ15..(GEN,SA)..RHD |
81732-20190 |
from US $2.24 |
||
|
81735
|
81735
90075-99012 Socket And Wire, License Plate Lamp[11.2010 -] GSJ15..CHI;GSJ15..(GEN,SA)..RHD |
90075-99012 |
from US $5.73 |
||
|
81740
|
81740
81730-20192
Lamp Assy, Side Turn Signal
[11.2010 -] GSJ15..CHI;GSJ15..(GEN,SA)..RHD |
81730-20192 |
— | ||
|
81741
|
81741
81731-20192 Lens, Side Turn Signal Lamp[11.2010 -] GSJ15..CHI;GSJ15..(GEN,SA)..RHD |
81731-20192 |
from US $11.19 |
||
|
81742
|
81742
81732-20190 Gasket, Side Turn Signal Lamp Lens[11.2010 -] GSJ15..CHI;GSJ15..(GEN,SA)..RHD |
81732-20190 |
from US $2.24 |
||
