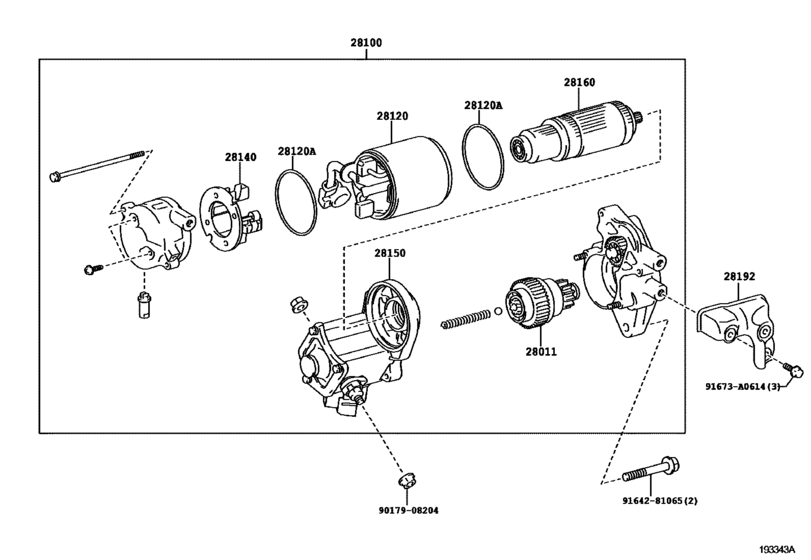

Starter ([08.2009 - ] 12V 1.4KW (0908- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 11.2010
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-66020 Clutch Sub-Assy, Starter[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
28011-66020 |
from US $110.20 |
||
|
28100
|
28100
28100-31131 Starter Assy[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA 12V 1.4KW |
28100-31131 |
from US $463.62 |
||
|
28120
|
28120
28120-66040
Yoke Assy, Starter
[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
28120-66040 |
— | ||
|
28120A
|
28120A
90099-14064 Rubber(For Starter Yoke)[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
90099-14064 |
from US $3.67 |
||
|
28140
|
28140
28140-35060 Holder Assy, Starter Brush[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
28140-35060 |
US $16.89 |
||
|
28150
|
28150
28150-31130 Switch Assy, Magnet StarterMAGNET STARTER [11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
28150-31130 |
from US $113.53 |
||
|
28160
|
28160
28160-74070
Armature Assy, Starter
[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
28160-74070 |
— | ||
|
28192
|
28192
28192-31010 Cover, StarterSTARTER [11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
28192-31010 |
US $21.84 |
||
|
91673A0614
|
91673A0614
91673-A0614 BOLT, FLANGE W-WASER |
91673-A0614 |
from US $0.63 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
|
9164281065
|
9164281065
91642-81065 Bolt(For Alternator) |
91642-81065 |
from US $1.25 |
||
