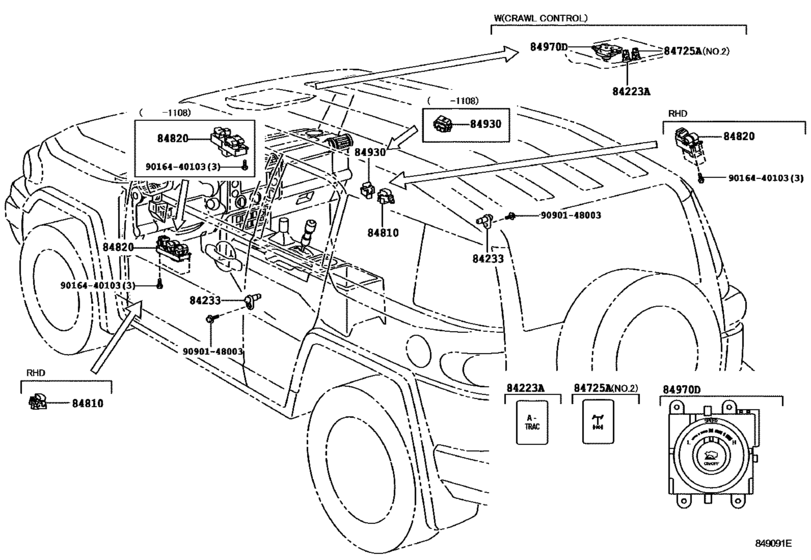

Switch & Relay & Computer ([07.2007 - ] DOOR & ROOF (0707- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 11.2010
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84223A
|
84223A
84223-35050 Switch, Transfer Position[08.2012 - 02.2015] GSJ15..SA; GSJ15..ATM..(CHI,GCC,GEN) VSC-WITH(A-TRC & CRAWL CONTROL); GSJ15..ARL OFF ROAD PACKAGE&VSC-WITH(A-TRC & CRAWL CONTROL) |
84223-35050 |
US $39.60 |
||
| replacement | |||||
|
84223A
|
84223A
84223-35051 Switch, Transfer Position[08.2012 - 02.2015] GSJ15..SA; GSJ15..ATM..(CHI,GCC,GEN) VSC-WITH(A-TRC & CRAWL CONTROL); GSJ15..ARL OFF ROAD PACKAGE&VSC-WITH(A-TRC & CRAWL CONTROL) |
84223-35051 |
US $33.49 |
||
|
84223A
|
84223A
84223-35051 Switch, Transfer Position[03.2015 -] GSJ15..SA; GSJ15..ATM..(CHI,GCC,GEN) VSC-WITH(A-TRC & CRAWL CONTROL) |
84223-35051 |
US $33.49 |
||
|
84233
|
84233
84231-60070 Switch, Courtesy Lamp[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
84231-60070 |
from US $11.83 |
||
|
84725A
|
84725A
84725-35070 Switch, Differential LockDIFFERENTIAL LOCK [11.2010 -] GSJ15..CHI,GEN;GSJ15..MTM..GCC NO.1; GSJ15..ATM..GCC DIFFERENTIAL LOCK-WITH,NO.1 |
84725-35070 |
US $44.93 |
||
|
84725A
|
84725A
84725-35090 Switch, Differential Lock[08.2012 - 02.2015] GSJ15..SA NO.2; GSJ15..ATM..(CHI,GEN) VSC-WITH(A-TRC & CRAWL CONTROL),NO.2; GSJ15..ARL OFF ROAD PACKAGE&DIFFERENTIAL LOCK-WITH&VSC-WITH(A-TRC & CRAWL CONTROL),NO.2; GSJ15..ATM..GCC DIFFERENTIAL LOCK-WITH&VSC-WITH(A-TRC & CRAWL CONTROL) |
84725-35090 |
US $39.60 |
||
| replacement | |||||
|
84725A
|
84725A
84725-35091 Switch, Differential Lock[08.2012 - 02.2015] GSJ15..SA NO.2; GSJ15..ATM..(CHI,GEN) VSC-WITH(A-TRC & CRAWL CONTROL),NO.2; GSJ15..ARL OFF ROAD PACKAGE&DIFFERENTIAL LOCK-WITH&VSC-WITH(A-TRC & CRAWL CONTROL),NO.2; GSJ15..ATM..GCC DIFFERENTIAL LOCK-WITH&VSC-WITH(A-TRC & CRAWL CONTROL) |
84725-35091 |
US $34.94 |
||
|
84725A
|
84725A
84725-35091 Switch, Differential Lock[03.2015 -] GSJ15..SA NO.2; GSJ15..ATM..(CHI,GEN) VSC-WITH(A-TRC & CRAWL CONTROL),NO.2; GSJ15..ATM..GCC DIFFERENTIAL LOCK-WITH&VSC-WITH(A-TRC & CRAWL CONTROL),NO.2 |
84725-35091 |
US $34.94 |
||
|
84810
|
84810
84810-52030 Switch Assy, Power Window Regulator[11.2010 -] GSJ15..(GEN,SA)..RHD |
84810-52030 |
from US $41.17 |
||
|
84820
|
84820
84820-35120 Master Switch Assy, Power Window Regulator[11.2010 -] GSJ15..(GEN,SA)..RHD |
84820-35120 |
US $124.64 |
||
|
84970D
|
84970D
84970-35010 Switch Assy, Crawl Control[08.2012 -] GSJ15..SA; GSJ15..ATM..(CHI,GCC,GEN) VSC-WITH(A-TRC & CRAWL CONTROL) |
84970-35010 |
US $97.12 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.72 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.97 |
||
