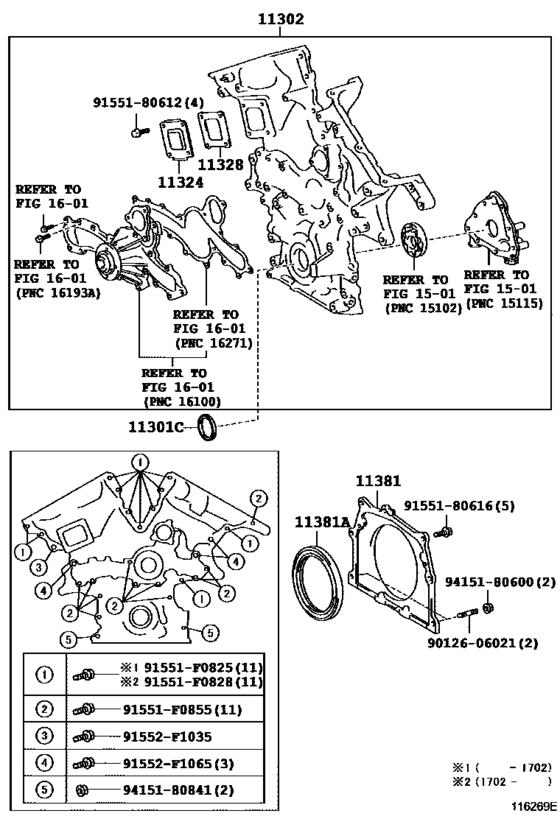

Timing Gear Cover & Rear End Plate ([08.2009 - ] (0908- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 11.2010
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11301C
|
11301C
90311-42045 Seal, Oil(For Timing Gear Case Or Timing Chain Case)OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) [11.2010 - 12.2010] 1GRFE..GSJ15 |
90311-42045 |
from US $9.32 |
||
|
11301C
|
11301C
90311-42048 Seal, Oil(For Timing Gear Case Or Timing Chain Case)[12.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
90311-42048 |
from US $5.68 |
||
|
11302
|
11302
11310-31030 Cover Sub-Assy, Timing Chain Or BeltTIMING CHAIN OR BELT [11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
11310-31030 |
from US $527.28 |
||
|
11324
|
11324
11324-31020 Plate, Timing Chain Cover[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
11324-31020 |
from US $6.04 |
||
|
11328
|
11328
11328-31030 Gasket, Timing Gear Or Chain Cover[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
11328-31030 |
from US $7.17 |
||
|
11381
|
11381
11381-31010 Retainer, Engine Rear Oil Seal[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
11381-31010 |
from US $31.16 |
||
|
11381A
|
11381A
90311-99010 Seal, Engine Rear Oil[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
90311-99010 |
from US $27.72 |
||
| replacement | |||||
|
11381A
|
11381A
90311-A0006 Seal, Engine Rear Oil[11.2010 -] 1GRFE..GSJ15..CHI,GCC,GEN,SA |
90311-A0006 |
US $112.50 |
||
|
91551F0825
|
91551F0825
91551-F0825 BOLT FLANGE |
91551-F0825 |
US $1.43 |
||
|
91551F0828
|
91551F0828
91551-F0828 BOLT FLANGE |
91551-F0828 |
US $1.43 |
||
|
91551F0855
|
91551F0855
91551-F0855 Bolt(For Cylinder Head Set Sub) |
91551-F0855 |
from US $0.91 |
||
|
91552F1035
|
91552F1035
91552-F1035 BOLT FLANGE |
91552-F1035 |
US $0.96 |
||
|
91552F1065
|
91552F1065
91552-F1065 New Genuine Part |
91552-F1065 |
US $2.04 |
||
|
9012606021
|
9012606021
90126-06021 Bolt, Stud(For Oil Strainer) |
90126-06021 |
US $1.43 |
||
|
9155180612
|
9155180612
91551-80612 Bolt (For Front Differential Breather Plug Oil Deflector) |
91551-80612 |
from US $0.63 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.63 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
|
9415180841
|
9415180841
94151-80841 FLANGE NUT |
94151-80841 |
from US $0.76 |
||
