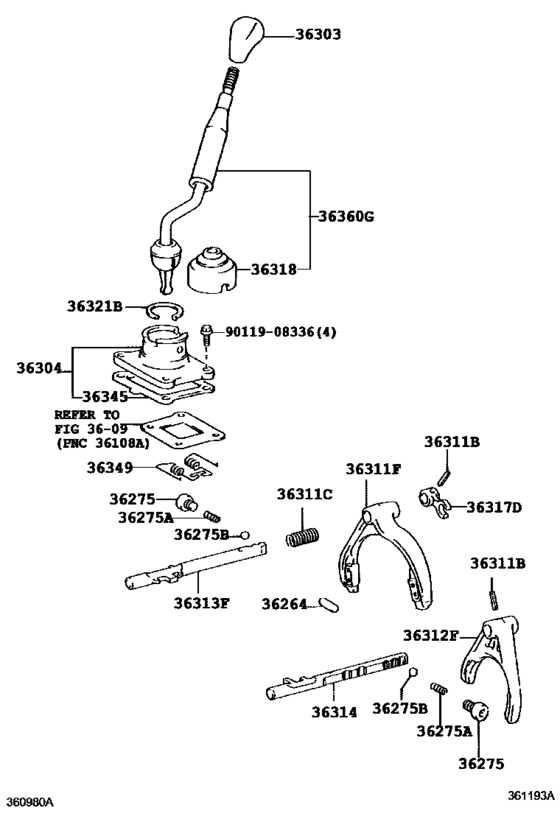

Transfer Lever & Shift Rod ([07.2007 - ] (0707- )ATM) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 11.2010
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36264
|
36264
90250-10020 Pin Or Roller, Shift Inter-Lock[11.2010 -] GSJ15..CHI,GCC,GEN,SA L=25.7,OD=9.53 |
90250-10020 |
US $1.31 |
||
|
36275
|
36275
90341-12014 Plug, W/head Straight Screw, No.1(For Cylinder Block)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90341-12014 |
from US $1.97 |
||
|
36275A
|
36275A
90501-16116 Spring, Compression (For Shift Detent Ball)[11.2010 -] GSJ15..CHI,GCC,GEN,SA L=23 |
90501-16116 |
US $1.10 |
||
|
36275B
|
36275B
90360-10003 Ball(For Transmission Oil Pump Cover)[11.2010 -] GSJ15..CHI,GCC,GEN,SA OD=9.52,STEEL |
90360-10003 |
from US $1.16 |
||
|
36303
|
36303
36303-35200-B0 Knob Sub-Assy, Shift LeverSHIFT LEVER [11.2010 -] GSJ15..ATM..(GCC,GEN) DK.GRAY,TRIM1# |
36303-35200-B0 |
US $27.22 |
||
|
36303
|
36303
36303-35210-B0 Knob Sub-Assy, Shift LeverSHIFT LEVER [11.2010 -] GSJ15..CHI,SA DK.GRAY,TRIM1#; GSJ15..ATM..(GCC,GEN) IMAGE PACKAGE,DK.GRAY,TRIM1#; GSJ15..ATM..GCC COLOR PACKAGE(FOR GCC),DK.GRAY,TRIM1# |
36303-35210-B0 |
from US $27.22 |
||
|
36304
|
36304
36304-35061 Retainer Sub-Assy, Transfer Control Shift Lever[11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) |
36304-35061 |
from US $30.93 |
||
|
36311B
|
36311B
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) L=22 |
90254-05001 |
from US $0.95 |
||
|
36311C
|
36311C
90501-20088 Spring, Compresion (For Shift Fork)[11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) |
90501-20088 |
US $1.31 |
||
|
36311F
|
36311F
36311-35030 Fork, Transfer Gear Shift, No.1[11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) |
36311-35030 |
US $70.76 |
||
|
36312F
|
36312F
36312-35040 Fork, Transfer Gear Shift, No.2[11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) |
36312-35040 |
US $27.96 |
||
|
36313F
|
36313F
36313-35070 Shaft, Transfer Front Drive Shift ForkTRANSFER FRONT DRIVE SHIFT FORK [11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) |
36313-35070 |
US $23.94 |
||
|
36314
|
36314
36314-35140 Shaft, Transfer High And Low Shift ForkTRANSFER HIGH AND LOW SHIFT FORK [11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) |
36314-35140 |
US $22.89 |
||
|
36317D
|
36317D
36317-35030 Stopper, Transfer Shift Shaft[11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) |
36317-35030 |
US $5.59 |
||
|
36318
|
36318
33555-35190 Boot, Transfer Front Drive Shift[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
33555-35190 |
from US $5.20 |
||
|
36321B
|
36321B
90521-49003 Ring, Snap (For Shift Lever Spring Sheet)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90521-49003 |
from US $1.82 |
||
|
36345
|
36345
36345-35050 Gasket, Transfer Control Shift Lever Retainer[11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) |
36345-35050 |
from US $1.18 |
||
|
36349
|
36349
36349-35010 Spring, Transfer Select Return[11.2010 -] GSJ15..ATM..(CHI,GCC,GEN,SA) |
36349-35010 |
US $4.02 |
||
|
36360G
|
36360G
36360-35630 Lever Assy, Transfer High & Low Shift[11.2010 -] GSJ15..(GEN,SA)..RHD |
36360-35630 |
US $120.85 |
||
|
9011908336
|
9011908336
90119-08336 BOLT |
90119-08336 |
US $2.87 |
