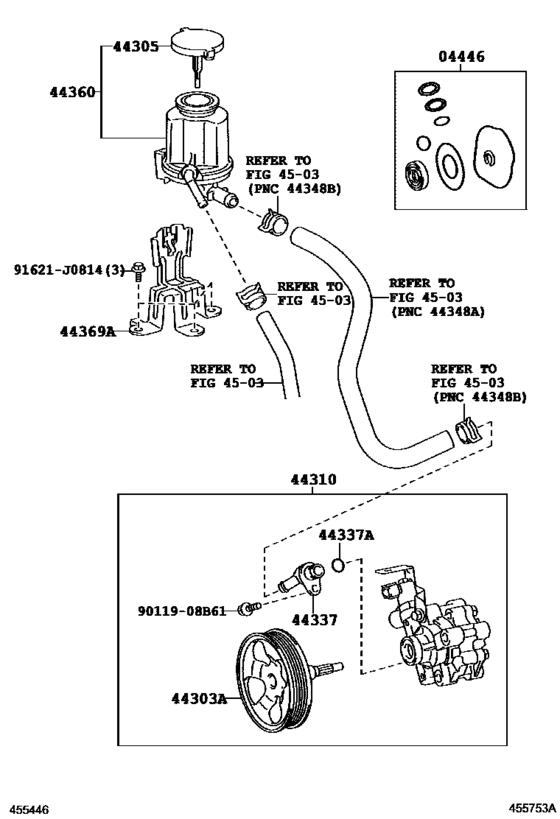

Vane Pump & Reservoir (Power Steering) ([08.2009 - ] (0908- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- General
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- DESTINATION
- GEN
- From
- 11.2010
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04446
|
04446
04446-35080 Gasket Kit, Power Steering PumpPOWER STEERING PUMP [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
04446-35080 |
from US $19.57 |
||
|
44303A
|
44303A
44303-60020 Shaft Sub-Assy, W/pulleyW/PULLEY [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
44303-60020 |
US $72.07 |
||
|
44305
|
44305
44305-28060 Cap Sub-Assy, Vane Pump Oil Reservoir[11.2010 - 07.2012] GSJ15 |
44305-28060 |
US $17.76 |
||
| replacement | |||||
|
44305
|
44305
44305-28061 Cap Sub-Assy, Vane Pump Oil Reservoir[11.2010 - 07.2012] GSJ15 |
44305-28061 |
from US $15.14 |
||
|
44305
|
44305
44305-28061 Cap Sub-Assy, Vane Pump Oil Reservoir[08.2012 -] GSJ15..CHI,GEN,SA |
44305-28061 |
from US $15.14 |
||
|
44310
|
44310
44310-35750 Pump Assy, VaneVANE [11.2010 -] GSJ15..CHI,GEN,SA |
44310-35750 |
from US $589.40 |
||
|
44337
|
44337
44337-60230 Union, Power Steering Suction PortPOWER STEERING SUCTION PORT [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
44337-60230 |
US $15.87 |
||
|
44337A
|
44337A
90301-15025 Ring, O(For Power Steering Suction Port)[11.2010 -] GSJ15..CHI,GCC,GEN,SA |
90301-15025 |
from US $2.13 |
||
|
44360
|
44360
44360-60320 Reservoir Assy, Vane Pump OilVANE PUMP OIL [11.2010 - 07.2012] GSJ15 |
44360-60320 |
US $113.57 |
||
| replacement | |||||
|
44360
|
44360
44360-60321 Reservoir Assy, Vane Pump Oil[11.2010 - 07.2012] GSJ15 |
44360-60321 |
from US $77.88 |
||
|
44360
|
44360
44360-60321 Reservoir Assy, Vane Pump Oil[08.2012 -] GSJ15..CHI,GEN,SA |
44360-60321 |
from US $77.88 |
||
|
44369A
|
44369A
44369-60080 Bracket, Oil Reservoir, No.1OIL RESERVOIR, NO.1 [11.2010 -] GSJ15..CHI,GCC,GEN,SA |
44369-60080 |
US $24.81 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.67 |
||
|
9011908B61
|
9011908B61
90119-08B61 New Genuine Part |
90119-08B61 |
US $0.87 |
||
