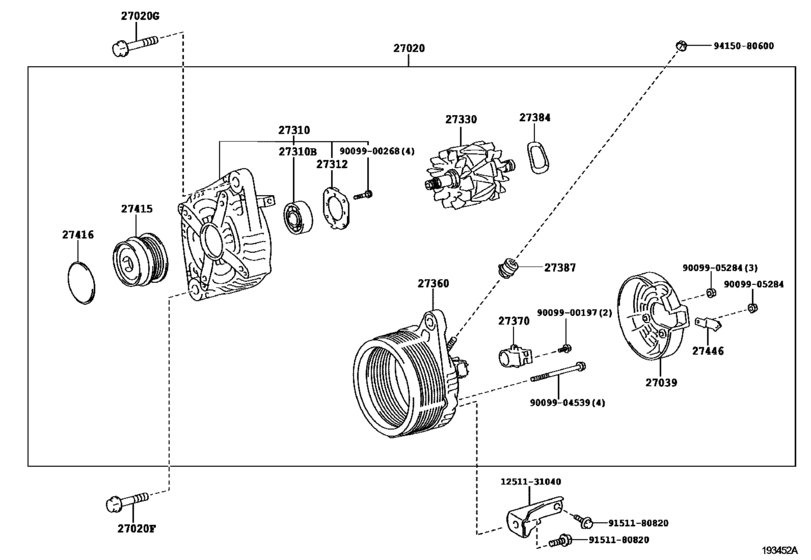

Alternator ([11.2010 - ] 12V 100A (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-31180
Alternator Assy
[11.2010 - 07.2014] 1GRFE..GSJ15 １２Ｖ １００Ａ |
27060-31180 |
— | ||
| replacement | |||||
|
27020
|
27020
27060-31260 Alternator Assy[11.2010 - 07.2014] 1GRFE..GSJ15 １２Ｖ １００Ａ |
27060-31260 |
from US $819.64 |
||
|
27020
|
27020
27060-31260 Alternator Assy[08.2014 -] 1GRFE..GSJ15 １２Ｖ １００Ａ |
27060-31260 |
from US $819.64 |
||
|
27020F
|
27020F
91552-81040 Bolt(For Alternator)[11.2010 -] 1GRFE..GSJ15 |
91552-81040 |
from US $1.08 |
||
|
27020G
|
27020G
91552-81070 Bolt(For Alternator)[11.2010 -] 1GRFE..GSJ15 |
91552-81070 |
from US $1.18 |
||
|
27039
|
27039
27039-31390
Cover, Alternator Rear End
[11.2010 -] 1GRFE..GSJ15 |
27039-31390 |
— | ||
|
27310
|
27310
27310-31430
Frame Assy, Drive End, Alternator
[11.2010 -] 1GRFE..GSJ15 |
27310-31430 |
— | ||
|
27310B
|
27310B
90099-10223 Bearing(For Alternator Drive End Frame)[11.2010 -] 1GRFE..GSJ15 |
90099-10223 |
from US $9.43 |
||
|
27312
|
27312
27312-72100
Plate, Bearing Retainer, Alternator
[11.2010 -] 1GRFE..GSJ15 |
27312-72100 |
— | ||
|
27330
|
27330
27330-30070
Rotor Assy, Alternator
[11.2010 -] 1GRFE..GSJ15 |
27330-30070 |
— | ||
|
27360
|
27360
27360-31390
Coil Assy, Alternator
[11.2010 - 08.2014] 1GRFE..GSJ15 |
27360-31390 |
— | ||
|
27360
|
27360
27360-31520
Coil Assy, Alternator
[08.2014 -] 1GRFE..GSJ15 |
27360-31520 |
— | ||
|
27370
|
27370
27370-31220 Holder Assy, Alternator Brush[11.2010 -] 1GRFE..GSJ15 |
27370-31220 |
from US $16.25 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[11.2010 -] 1GRFE..GSJ15 |
27384-50030 |
from US $2.77 |
||
|
27387
|
27387
27387-20130 Insulator, Terminal[11.2010 -] 1GRFE..GSJ15 |
27387-20130 |
from US $4.02 |
||
|
27415
|
27415
27415-0W130 Pulley, Alternator W/clutch[11.2010 - 06.2013] 1GRFE..GSJ15 |
27415-0W130 |
US $82.99 |
||
| replacement | |||||
|
27415
|
27415
27415-0W131 Pulley, Alternator W/clutch[11.2010 - 06.2013] 1GRFE..GSJ15 |
27415-0W131 |
from US $56.15 |
||
|
27415
|
27415
27415-0W131 Pulley, Alternator W/clutch[07.2013 -] 1GRFE..GSJ15 |
27415-0W131 |
from US $56.15 |
||
|
27416
|
27416
27416-0W050 Cap, Alternator Pulley[11.2010 -] 1GRFE..GSJ15 |
27416-0W050 |
from US $3.59 |
||
|
27446
|
27446
27446-31390
Clip, Alternator Cord
[11.2010 -] 1GRFE..GSJ15 |
27446-31390 |
— | ||
|
1251131040
|
1251131040
12511-31040
Bracket, Alternator, No.1
|
12511-31040 |
— | ||
|
9009900197
|
9009900197
90099-00197 Bearing(For Alternator Rotor) |
90099-00197 |
from US $0.28 |
||
|
9009900268
|
9009900268
90099-00268
Screw(For Alternator Drive End Frame)
|
90099-00268 |
— | ||
|
9009904539
|
9009904539
90099-04539 BOLT |
90099-04539 |
US $1.33 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
||
|
9151180820
|
9151180820
91511-80820 BOLT FLANGE |
91511-80820 |
from US $0.78 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.63 |
||
