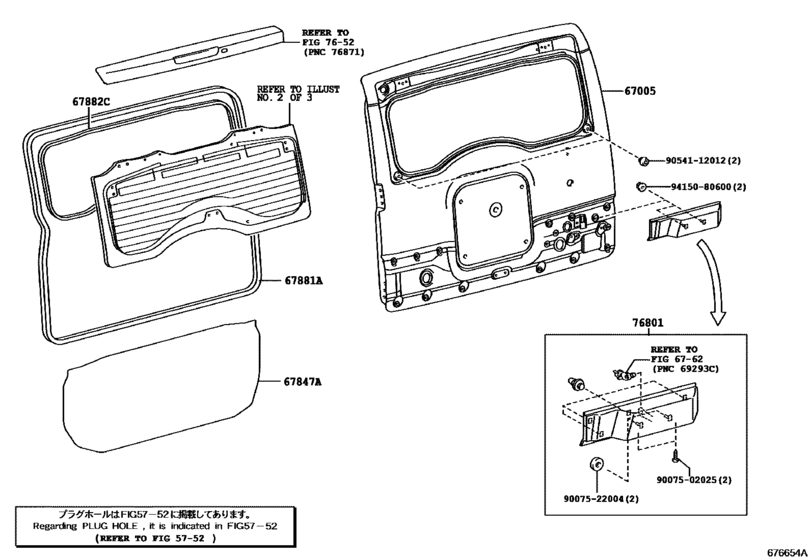

Back Door Panel & Glass ([11.2010 - ] ﾄﾞｱﾊﾟﾈﾙ (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67005
|
67005
67005-35361 Panel Sub-Assy, Back Door[11.2010 - 08.2011] GSJ15 リヤウィンドウワイパ−有り |
67005-35361 |
US $599.58 |
||
|
67005
|
67005
67005-35371 Panel Sub-Assy, Back Door[11.2010 - 08.2011] GSJ15 |
67005-35371 |
US $794.98 |
||
| replacements | |||||
|
67005
|
67005
67005-35372 Panel Sub-Assy, Back Door[11.2010 - 08.2011] GSJ15 |
67005-35372 |
US $601.33 |
||
|
67005
|
67005
90950-01958 Plug, Hole(For Back Door Panel)[11.2010 - 08.2011] GSJ15 |
90950-01958 |
from US $1.51 |
||
|
67005
|
67005
67005-35372 Panel Sub-Assy, Back Door[08.2011 -] GSJ15 |
67005-35372 |
US $601.33 |
||
|
67005
|
67005
67005-35400 Panel Sub-Assy, Back DoorBACK DOOR [08.2011 -] GSJ15 リヤウィンドウワイパ−有り |
67005-35400 |
from US $601.33 |
||
|
67847A
|
67847A
67847-35030 Cover, Back Door Service HoleBACK DOOR SERVICE HOLE [11.2010 -] GSJ15 |
67847-35030 |
US $9.08 |
||
|
67881A
|
67881A
67881-35050 Weatherstrip, Back DoorBACK DOOR [11.2010 - 04.2012] GSJ15 |
67881-35050 |
US $142.69 |
||
| replacement | |||||
|
67881A
|
67881A
67881-35051 Weatherstrip, Back Door[11.2010 - 04.2012] GSJ15 |
67881-35051 |
from US $106.92 |
||
|
67881A
|
67881A
67881-35051 Weatherstrip, Back Door[05.2012 -] GSJ15 |
67881-35051 |
from US $106.92 |
||
|
67882C
|
67882C
67882-35011 Weatherstrip, Back Door, No.2[11.2010 - 03.2012] GSJ15 |
67882-35011 |
US $84.45 |
||
| replacement | |||||
|
67882C
|
67882C
67882-35012 Weatherstrip, Back Door, No.2[11.2010 - 03.2012] GSJ15 |
67882-35012 |
from US $68.32 |
||
|
67882C
|
67882C
67882-35012 Weatherstrip, Back Door, No.2[04.2012 -] GSJ15 |
67882-35012 |
from US $68.32 |
||
|
76801
|
76801
76801-35490
Garnish Sub-Assy, Back Door, Outside
[11.2010 - 05.2014] GSJ15 |
76801-35490 |
— | ||
| replacement | |||||
|
76801
|
76801
76801-35492 Garnish Sub-Assy, Back Door, Outside[11.2010 - 05.2014] GSJ15 |
76801-35492 |
US $112.20 |
||
|
76801
|
76801
76801-35491 Garnish Sub-Assy, Back Door, Outside[06.2014 - 07.2014] GSJ15 |
76801-35491 |
US $123.76 |
||
| replacement | |||||
|
76801
|
76801
76801-35492 Garnish Sub-Assy, Back Door, Outside[06.2014 - 07.2014] GSJ15 |
76801-35492 |
US $112.20 |
||
|
76801
|
76801
76801-35492 Garnish Sub-Assy, Back Door, Outside[08.2014 -] GSJ15 |
76801-35492 |
US $112.20 |
||
|
9007502025
|
9007502025
90075-02025 Screw, Headlamp |
90075-02025 |
US $0.83 |
||
|
9007522004
|
9007522004
90075-22004 WASHER |
90075-22004 |
US $1.93 |
||
|
9054112012
|
9054112012
90541-12012 Cushion(For Back Door Panel) |
90541-12012 |
from US $1.65 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.63 |
||
