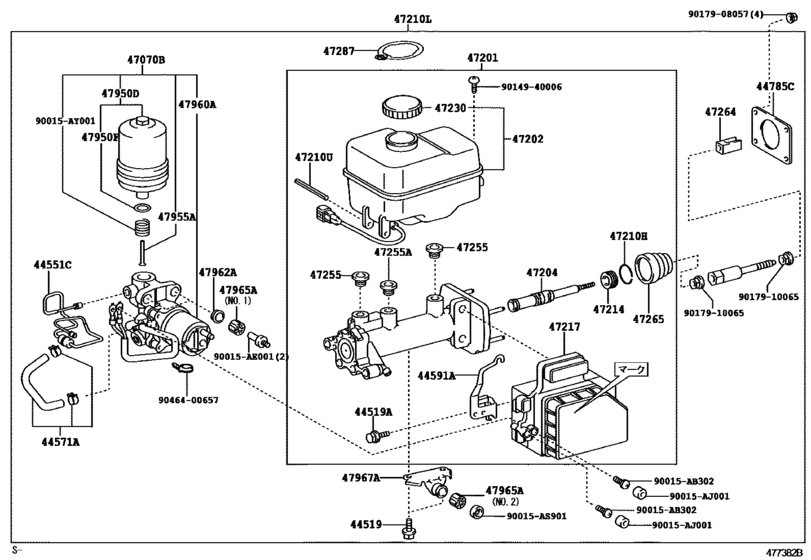

Brake Master Cylinder ([11.2010 - ] (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44519
|
44519
44519-24020 Bolt, Brake Actuator[11.2010 -] GSJ15 |
44519-24020 |
US $0.83 |
||
|
44519A
|
44519A
44519-24020 Bolt, Brake Actuator[11.2010 -] GSJ15 |
44519-24020 |
US $0.83 |
||
|
44551C
|
44551C
44551-60040 Tube, Brake Actuator, No.1[11.2010 -] GSJ15 |
44551-60040 |
US $6.64 |
||
|
44571A
|
44571A
44571-60020 Hose, Brake Actuator, No.1[11.2010 -] GSJ15 |
44571-60020 |
US $7.16 |
||
|
44591A
|
44591A
44591-35070 Bracket, Brake Actuator, No.1BRAKE ACTUATOR, NO.1 [11.2010 -] GSJ15 |
44591-35070 |
US $4.22 |
||
|
44785C
|
44785C
44785-60020 Gasket, Brake Booster[11.2010 -] GSJ15 |
44785-60020 |
US $1.65 |
||
|
47070B
|
47070B
47070-60050 Pump Assy, Brake Booster W/accumulatorBRAKE BOOSTER W/ACCUMULATOR [11.2010 -] GSJ15 |
47070-60050 |
from US $864.13 |
||
|
47201
|
47201
47025-35240 Cylinder Sub-Assy, Brake Master[11.2010 - 08.2011] GSJ15 ＰＮＣ４７２１７参照 |
47025-35240 |
US $1,616.16 |
||
|
47201
|
47201
47025-35241 Cylinder Sub-Assy, Brake Master[08.2011 - 08.2012] GSJ15 ＰＮＣ４７２１７参照 |
47025-35241 |
US $1,616.16 |
||
|
47201
|
47201
47025-35242 Cylinder Sub-Assy, Brake Master[08.2012 -] GSJ15 ＰＮＣ４７２１７参照 |
47025-35242 |
US $1,212.85 |
||
|
47201
|
47201
47025-35260 Cylinder Sub-Assy, Brake Master[08.2012 -] GSJ15 ＶＳＣ−有り（Ａ−ＴＲＣ ＆ クロールコントロール）,ＰＮＣ４７２１７参照 |
47025-35260 |
US $1,212.85 |
||
|
47202
|
47202
47220-60180 Reservoir Sub-Assy, Brake Master Cylinder[11.2010 -] GSJ15 |
47220-60180 |
from US $84.91 |
||
|
47204
|
47204
47026-60090 Piston, Master CylinderMASTER CYLINDER [11.2010 -] GSJ15 |
47026-60090 |
from US $36.03 |
||
|
47210H
|
47210H
90520-32012 Ring, Snap(For Brake Master Cylinder)[11.2010 -] GSJ15 |
90520-32012 |
from US $1.10 |
||
|
47210L
|
47210L
47050-35190 Brake Booster Assy, W/master Cylinder[11.2010 - 08.2011] GSJ15 ＰＮＣ４７２１７参照 |
47050-35190 |
US $2,387.84 |
||
|
47210L
|
47210L
47050-35191 Brake Booster Assy, W/master Cylinder[08.2011 - 08.2012] GSJ15 ＰＮＣ４７２１７参照 |
47050-35191 |
US $2,347.65 |
||
|
47210L
|
47210L
47050-35192 Brake Booster Assy, W/master Cylinder[08.2012 -] GSJ15 ＰＮＣ４７２１７参照 |
47050-35192 |
US $1,805.44 |
||
|
47210L
|
47210L
47050-35200 Brake Booster Assy, W/master Cylinder[08.2012 -] GSJ15 ＶＳＣ−有り（Ａ−ＴＲＣ ＆ クロールコントロール）,ＰＮＣ４７２１７参照 |
47050-35200 |
US $1,805.44 |
||
|
47210U
|
47210U
90029-15803 Ring Pin, Brake Master Cylinder[11.2010 -] GSJ15 |
90029-15803 |
US $1.05 |
||
|
47214
|
47214
47027-60090 Plug, Master CylinderMASTER CYLINDER [11.2010 -] GSJ15 |
47027-60090 |
from US $20.12 |
||
|
47217
|
47217
47217-35210 Solenoid, Master Cylinder[11.2010 - 08.2011] GSJ15 マーク＝８９５４１−３５１１０ |
47217-35210 |
US $1,485.12 |
||
|
47217
|
47217
47217-35211 Solenoid, Master Cylinder[08.2011 - 08.2012] GSJ15 マーク＝８９５４１−３５１１１ |
47217-35211 |
US $1,485.12 |
||
|
47217
|
47217
47217-35212 Solenoid, Master Cylinder[08.2012 -] GSJ15 マーク＝８９５４１−３５１１２ |
47217-35212 |
US $1,121.12 |
||
|
47217
|
47217
47217-35220 Solenoid, Master Cylinder[08.2012 -] GSJ15 O |
47217-35220 |
US $1,121.12 |
||
|
47230
|
47230
47230-47090 Cap Assy, Brake Master Cylinder Reservoir Filler[12.2016 -] GSJ15 |
47230-47090 |
from US $9.77 |
||
|
47230
|
47230
47230-60210
Cap Assy, Brake Master Cylinder Reservoir Filler
[11.2010 - 12.2016] GSJ15 |
47230-60210 |
— | ||
| replacement | |||||
|
47230
|
47230
47230-47090 Cap Assy, Brake Master Cylinder Reservoir Filler[11.2010 - 12.2016] GSJ15 |
47230-47090 |
from US $9.77 |
||
|
47255
|
47255
47255-16010 Grommet, Master Cylinder Reservoir[11.2010 -] GSJ15 |
47255-16010 |
from US $4.54 |
||
|
47255A
|
47255A
31417-35010 Grommet[11.2010 -] GSJ15 |
31417-35010 |
from US $1.65 |
||
|
47264
|
47264
47264-60020 Clevis, Master Cylinder Push Rod[11.2010 -] GSJ15 |
47264-60020 |
US $2.48 |
||
|
47265
|
47265
90029-70001 Boot, Master Cylinder[11.2010 -] GSJ15 |
90029-70001 |
from US $4.24 |
||
|
47287
|
47287
47287-60180 Label, Brake Fluid Information[11.2010 - 02.2012] GSJ15 |
47287-60180 |
US $3.49 |
||
| replacement | |||||
|
47287
|
47287
47287-60181 Label, Brake Fluid Information[11.2010 - 02.2012] GSJ15 |
47287-60181 |
US $3.32 |
||
|
47287
|
47287
47287-60181 Label, Brake Fluid Information[02.2012 - 12.2016] GSJ15 |
47287-60181 |
US $3.32 |
||
|
47950D
|
47950D
47950-60020 Accumulator Assy, Brake Booster[11.2010 -] GSJ15 |
47950-60020 |
US $176.80 |
||
|
47950F
|
47950F
90301-13014 Ring, O(For Brake Booster Accumulator)[11.2010 -] GSJ15 |
90301-13014 |
from US $1.79 |
||
|
47955A
|
47955A
47955-60010 Pipe, Brake Booster Accumulator[11.2010 -] GSJ15 |
47955-60010 |
US $1.38 |
||
|
47960A
|
47960A
47960-60050 Pump Assy, Brake Booster[11.2010 -] GSJ15 |
47960-60050 |
from US $755.42 |
||
|
47962A
|
47962A
47962-60090 Collar, Brake Booster Pump[11.2010 -] GSJ15 |
47962-60090 |
US $0.55 |
||
|
47965A
|
47965A
47965-30010 Bush, Brake Booster Pump[11.2010 -] GSJ15 ＮＯ．１ |
47965-30010 |
US $2.61 |
||
|
47965A
|
47965A
90015-AL001 Bush, Brake Booster Pump[11.2010 -] GSJ15 ＮＯ．２ |
90015-AL001 |
US $2.77 |
||
|
47967A
|
47967A
47967-60090 Bracket, Brake Booster Pump, No.1[11.2010 -] GSJ15 |
47967-60090 |
US $7.28 |
||
|
90015AB302
|
90015AB302
90015-AB302 New Genuine Part |
90015-AB302 |
US $0.87 |
||
|
90015AE001
|
90015AE001
90015-AE001 New Genuine Part |
90015-AE001 |
US $1.22 |
||
|
90015AJ001
|
90015AJ001
90015-AJ001 New Genuine Part |
90015-AJ001 |
US $1.16 |
||
|
90015AS901
|
90015AS901
90015-AS901 CLIP |
90015-AS901 |
US $2.80 |
||
|
90015AY001
|
90015AY001
90015-AY001 SPRING COMPRESSION |
90015-AY001 |
US $0.96 |
||
|
9014940006
|
9014940006
90149-40006 New Genuine Part |
90149-40006 |
US $1.10 |
||
|
9017908057
|
9017908057
90179-08057 NUT |
90179-08057 |
from US $0.70 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.10 |
||
|
9046400657
|
9046400657
90464-00657 CLAMP |
90464-00657 |
US $0.96 |
||
