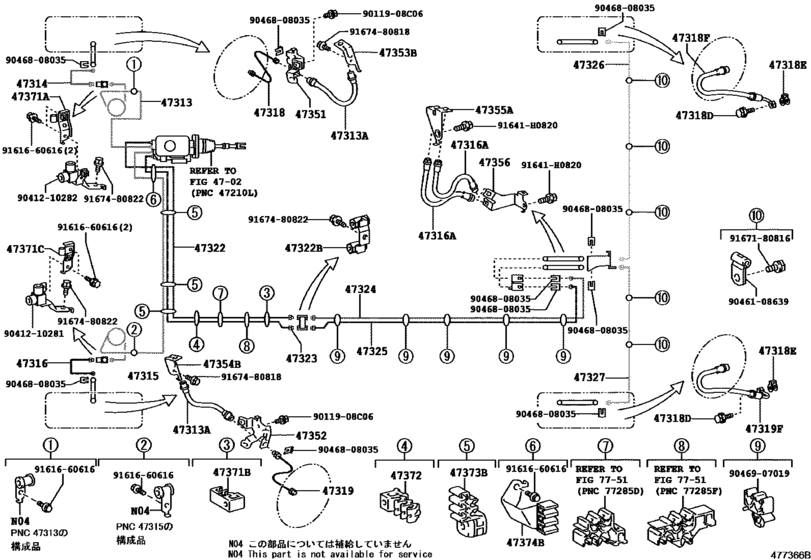

Brake Tube & Clamp ([11.2010 - ] (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47313
|
47313
47313-60460 Tube, Front Brake, No.3FRONT BRAKE, NO.3 [11.2010 - 05.2015] GSJ15 |
47313-60460 |
US $10.19 |
||
|
47313
|
47313
47313-60461 Tube, Front Brake, No.3[05.2015 -] GSJ15 |
47313-60461 |
US $10.92 |
||
|
47313A
|
47313A
90947-02G20 Hose, Flexible, No.1(For Front)FLEXIBLE, NO.1(FOR FRONT) [11.2010 -] GSJ15 |
90947-02G20 |
from US $15.16 |
||
|
47314
|
47314
47314-60300
Tube, Front Brake, No.4
[11.2010 - 05.2015] GSJ15 |
47314-60300 |
— | ||
| replacement | |||||
|
47314
|
47314
47314-60301 Tube, Front Brake, No.4[11.2010 - 05.2015] GSJ15 |
47314-60301 |
US $2.89 |
||
|
47314
|
47314
47314-60301 Tube, Front Brake, No.4[05.2015 -] GSJ15 |
47314-60301 |
US $2.89 |
||
|
47315
|
47315
47315-60550 Tube, Front Brake, No.5FRONT BRAKE, NO.5 [11.2010 - 05.2015] GSJ15 |
47315-60550 |
US $21.99 |
||
|
47315
|
47315
47315-60551 Tube, Front Brake, No.5[05.2015 - 10.2015] GSJ15 |
47315-60551 |
US $23.59 |
||
|
47315
|
47315
47315-60680 Tube, Front Brake, No.5[10.2015 -] GSJ15 |
47315-60680 |
US $21.40 |
||
|
47316
|
47316
47316-60630 Tube, Front Brake, No.6FRONT BRAKE, NO.6 [11.2010 - 05.2015] GSJ15 |
47316-60630 |
US $4.02 |
||
|
47316
|
47316
47316-60631 Tube, Front Brake, No.6[05.2015 -] GSJ15 |
47316-60631 |
from US $2.89 |
||
|
47316A
|
47316A
90947-02G18 Hose, Flexible(For Rear Brake Tube)FLEXIBLE(FOR REAR BRAKE TUBE) [11.2010 - 08.2013] GSJ15 |
90947-02G18 |
US $18.01 |
||
|
47316A
|
47316A
90947-02H20 Hose, Flexible(For Rear Brake Tube)[08.2013 -] GSJ15 |
90947-02H20 |
from US $15.16 |
||
|
47318
|
47318
47314-60310
Tube, Front Brake, No.8
[11.2010 - 06.2015] GSJ15 |
47314-60310 |
— | ||
| replacement | |||||
|
47318
|
47318
47314-60311 Tube, Front Brake, No.8[11.2010 - 06.2015] GSJ15 |
47314-60311 |
from US $3.50 |
||
|
47318
|
47318
47314-60311 Tube, Front Brake, No.8[06.2015 -] GSJ15 |
47314-60311 |
from US $3.50 |
||
|
47318D
|
47318D
90401-10058 Bolt, Union(For Front Flexible Hose)[11.2010 -] GSJ15 |
90401-10058 |
from US $3.03 |
||
|
47318E
|
47318E
47389-50020 Gasket(For Front Flexible Hose)[11.2010 -] GSJ15 |
47389-50020 |
from US $3.85 |
||
|
47318F
|
47318F
90947-02G15 Hose, Flexible(For Rear Rh)FLEXIBLE(FOR REAR RH) [11.2010 - 07.2012] GSJ15 |
90947-02G15 |
US $17.04 |
||
| replacement | |||||
|
47318F
|
47318F
90947-02H00 Hose, Flexible(For Rear Rh)[11.2010 - 07.2012] GSJ15 |
90947-02H00 |
from US $16.72 |
||
|
47318F
|
47318F
90947-02H00 Hose, Flexible(For Rear Rh)[08.2012 - 07.2013] GSJ15 |
90947-02H00 |
from US $16.72 |
||
|
47318F
|
47318F
90947-02H17 Hose, Flexible(For Rear Rh)[08.2013 -] GSJ15 |
90947-02H17 |
US $15.16 |
||
|
47319
|
47319
47317-60130
Tube, Front Brake, No.7
[11.2010 - 06.2015] GSJ15 |
47317-60130 |
— | ||
| replacement | |||||
|
47319
|
47319
47317-60131 Tube, Front Brake, No.7[11.2010 - 06.2015] GSJ15 |
47317-60131 |
from US $3.48 |
||
|
47319
|
47319
47317-60131 Tube, Front Brake, No.7[06.2015 -] GSJ15 |
47317-60131 |
from US $3.48 |
||
|
47319F
|
47319F
90947-02G16 Hose, Flexible(For Rear Lh)FLEXIBLE(FOR REAR LH) [11.2010 - 07.2012] GSJ15 |
90947-02G16 |
US $17.04 |
||
| replacement | |||||
|
47319F
|
47319F
90947-02H01 Hose, Flexible(For Rear Lh)[11.2010 - 07.2012] GSJ15 |
90947-02H01 |
US $16.72 |
||
|
47319F
|
47319F
90947-02H01 Hose, Flexible(For Rear Lh)[08.2012 - 07.2013] GSJ15 |
90947-02H01 |
US $16.72 |
||
|
47319F
|
47319F
90947-02H18 Hose, Flexible(For Rear Lh)[08.2013 -] GSJ15 |
90947-02H18 |
US $15.16 |
||
|
47322
|
47322
47322-60A80 Tube, Rear Brake, No.2REAR BRAKE, NO.2 [11.2010 - 05.2015] GSJ15 |
47322-60A80 |
US $30.28 |
||
|
47322
|
47322
47322-60A81 Tube, Rear Brake, No.2[05.2015 - 10.2015] GSJ15 |
47322-60A81 |
US $32.03 |
||
|
47322
|
47322
47322-60D50 Tube, Rear Brake, No.2[10.2015 -] GSJ15 |
47322-60D50 |
US $29.12 |
||
|
47322B
|
47322B
90412-10283 Way, No.2(For Rear Brake Tube)NO.2(FOR REAR BRAKE TUBE) [11.2010 -] GSJ15 |
90412-10283 |
US $8.15 |
||
|
47323
|
47323
47323-60840 Tube, Rear Brake, No.3REAR BRAKE, NO.3 [11.2010 - 05.2015] GSJ15 |
47323-60840 |
US $30.28 |
||
|
47323
|
47323
47323-60841 Tube, Rear Brake, No.3[05.2015 - 10.2015] GSJ15 |
47323-60841 |
US $30.28 |
||
|
47323
|
47323
47323-60C40 Tube, Rear Brake, No.3[10.2015 -] GSJ15 |
47323-60C40 |
US $29.12 |
||
|
47324
|
47324
47324-35330
Tube, Rear Brake, No.4
[11.2010 - 08.2013] GSJ15 |
47324-35330 |
— | ||
|
47324
|
47324
47324-35340 Tube, Rear Brake, No.4[08.2013 -] GSJ15 |
47324-35340 |
US $18.35 |
||
|
47325
|
47325
47325-35410 Tube, Rear Brake, No.5REAR BRAKE, NO.5 [11.2010 - 07.2013] GSJ15 |
47325-35410 |
US $18.64 |
||
| replacement | |||||
|
47325
|
47325
47325-35420 Tube, Rear Brake, No.5[11.2010 - 07.2013] GSJ15 |
47325-35420 |
US $16.42 |
||
|
47325
|
47325
47325-35420 Tube, Rear Brake, No.5[08.2013 -] GSJ15 |
47325-35420 |
US $16.42 |
||
|
47326
|
47326
47326-60360 Tube, Rear Brake, No.6REAR BRAKE, NO.6 [11.2010 - 07.2013] GSJ15 |
47326-60360 |
US $17.50 |
||
|
47326
|
47326
47326-60370 Tube, Rear Brake, No.6[08.2013 - 05.2015] GSJ15 |
47326-60370 |
US $13.54 |
||
|
47326
|
47326
47326-60371 Tube, Rear Brake, No.6[05.2015 -] GSJ15 |
47326-60371 |
US $11.49 |
||
|
47327
|
47327
47327-60210 Tube, Rear Brake, No.7REAR BRAKE, NO.7 [11.2010 - 07.2013] GSJ15 |
47327-60210 |
US $15.55 |
||
|
47327
|
47327
47327-60230 Tube, Rear Brake, No.7[08.2013 - 05.2015] GSJ15 |
47327-60230 |
US $12.08 |
||
|
47327
|
47327
47327-60231 Tube, Rear Brake, No.7[05.2015 -] GSJ15 |
47327-60231 |
US $10.92 |
||
|
47351
|
47351
47351-35350 Bracket, Flexible Hose(For Front Rh)[11.2010 -] GSJ15 |
47351-35350 |
US $9.96 |
||
|
47352
|
47352
47352-35390 Bracket, Flexible Hose(For Front Lh)[11.2010 -] GSJ15 |
47352-35390 |
US $9.96 |
||
|
47353B
|
47353B
47353-60150 Bracket, Flexible Hose, No.3FLEXIBLE HOSE, NO.3 [11.2010 -] GSJ15 |
47353-60150 |
US $5.10 |
||
|
47354B
|
47354B
47354-60140 Bracket, Flexible Hose, No.4FLEXIBLE HOSE, NO.4 [11.2010 -] GSJ15 |
47354-60140 |
US $5.10 |
||
|
47355A
|
47355A
47355-35130 Bracket, Flexible Hose, No.2(For Front)[11.2010 - 08.2013] GSJ15 |
47355-35130 |
US $13.28 |
||
|
47355A
|
47355A
47355-60200 Bracket, Flexible Hose, No.5[08.2013 -] GSJ15 |
47355-60200 |
US $12.52 |
||
|
47356
|
47356
47356-35010 Bracket, Flexible Hose, No.6[11.2010 - 08.2013] GSJ15 |
47356-35010 |
US $18.70 |
||
|
47356
|
47356
47356-60030 Bracket, Flexible Hose, No.6[08.2013 - 01.2017] GSJ15 |
47356-60030 |
US $16.45 |
||
|
47356
|
47356
47356-60031 Bracket, Flexible Hose, No.6[01.2017 -] GSJ15 |
47356-60031 |
US $16.45 |
||
|
47371A
|
47371A
47371-60170 Clamp, Brake Tube, No.1[11.2010 -] GSJ15 |
47371-60170 |
US $7.34 |
||
|
47371B
|
47371B
77299-32030 Clamp, Brake Tube, No.6[11.2010 -] GSJ15 |
77299-32030 |
US $4.13 |
||
|
47371C
|
47371C
47371-60160 Clamp, Brake Tube, No.6[11.2010 -] GSJ15 |
47371-60160 |
US $7.51 |
||
|
47372
|
47372
90949-01C95 Clamp, Brake Tube, No.8[11.2010 -] GSJ15 |
90949-01C95 |
US $4.13 |
||
|
47373B
|
47373B
90949-01E27 Clamp, Brake Tube, No.3[05.2015 -] GSJ15 |
90949-01E27 |
US $2.77 |
||
|
47373B
|
47373B
90949-04024 Clamp, Brake Tube, No.3[11.2010 - 05.2015] GSJ15 |
90949-04024 |
US $4.89 |
||
|
47374B
|
47374B
90949-04034 Clamp, Brake Tube, No.4[11.2010 - 05.2015] GSJ15 |
90949-04034 |
US $4.80 |
||
|
47374B
|
47374B
90949-04063 Clamp, Brake Tube, No.4[05.2015 -] GSJ15 |
90949-04063 |
US $4.66 |
||
|
91641H0820
|
91641H0820
91641-H0820 Bolt |
91641-H0820 |
from US $0.76 |
||
|
9011908C06
|
9011908C06
90119-08C06 BOLT WWASHER |
90119-08C06 |
US $0.96 |
||
|
9041210281
|
9041210281
90412-10281 Way, No.1(For Front Brake Tube)NO.1(FOR FRONT BRAKE TUBE) |
90412-10281 |
US $8.15 |
||
|
9041210282
|
9041210282
90412-10282 Way, No.2(For Front Brake Tube)NO.2(FOR FRONT BRAKE TUBE) |
90412-10282 |
US $8.15 |
||
|
9046108639
|
9046108639
90461-08639 Clamp, Brake Tube, No.7 |
90461-08639 |
US $1.65 |
||
|
9046808035
|
9046808035
90468-08035 CLIP |
90468-08035 |
from US $1.06 |
||
|
9046907019
|
9046907019
90469-07019 Clamp, Brake Tube, No.1 |
90469-07019 |
US $2.48 |
||
|
9161660616
|
9161660616
91616-60616 BOLT |
91616-60616 |
US $1.10 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.72 |
||
|
9167480818
|
9167480818
91674-80818 BOLT FLANGE |
91674-80818 |
from US $0.76 |
||
|
9167480822
|
9167480822
91674-80822 BOLT FLANGE |
91674-80822 |
from US $0.76 |
||
