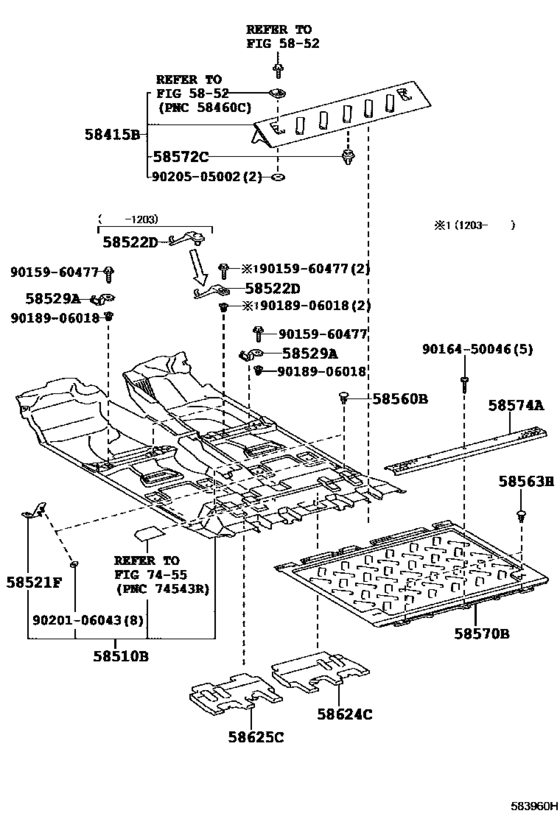

Floor Mat & Silencer Pad ([11.2010 - ] (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58415B
|
58415B
58401-35031-B0 Board, Rear Floor, No.1[11.2010 -] GSJ15 DK.GRAY,TRIM1# |
58401-35031-B0 |
US $113.57 |
||
|
58510B
|
58510B
58510-35A50-B0 Mat, Front Floor, Front[11.2010 - 03.2012] GSJ15 DK.GRAY,TRIM1# |
58510-35A50-B0 |
US $489.22 |
||
|
58510B
|
58510B
58510-35A51-B0 Mat, Front Floor, Front[03.2012 -] GSJ15 DK.GRAY,TRIM1# |
58510-35A51-B0 |
US $369.82 |
||
|
58521F
|
58521F
51965-35090 Hook, Floor Carpet[11.2010 -] GSJ15 |
51965-35090 |
from US $4.13 |
||
|
58522D
|
58522D
58522-35020
Hook, Floor Carpet, No.2
[11.2010 - 12.2010] GSJ15 |
58522-35020 |
— | ||
| replacements | |||||
|
58522D
|
58522D
58522-35022 Hook, Floor Carpet, No.2[11.2010 - 12.2010] GSJ15 |
58522-35022 |
from US $6.99 |
||
|
58522D
|
58522D
90159-60477 SCREW WWASHER[11.2010 - 12.2010] GSJ15 |
90159-60477 |
from US $0.67 |
||
|
58522D
|
58522D
90189-06018 GROMMET[11.2010 - 12.2010] GSJ15 |
90189-06018 |
from US $0.93 |
||
|
58522D
|
58522D
58522-35021 Hook, Floor Carpet, No.2[12.2010 - 03.2012] GSJ15 |
58522-35021 |
US $8.59 |
||
| replacements | |||||
|
58522D
|
58522D
58522-35022 Hook, Floor Carpet, No.2[12.2010 - 03.2012] GSJ15 |
58522-35022 |
from US $6.99 |
||
|
58522D
|
58522D
90159-60477 SCREW WWASHER[12.2010 - 03.2012] GSJ15 |
90159-60477 |
from US $0.67 |
||
|
58522D
|
58522D
90189-06018 GROMMET[12.2010 - 03.2012] GSJ15 |
90189-06018 |
from US $0.93 |
||
|
58522D
|
58522D
58522-35022 Hook, Floor Carpet, No.2[03.2012 -] GSJ15 |
58522-35022 |
from US $6.99 |
||
|
58529A
|
58529A
58529-35060
Hook, Floor Carpet, No.3
[11.2010 - 12.2010] GSJ15 |
58529-35060 |
— | ||
| replacement | |||||
|
58529A
|
58529A
58529-35061 Hook, Floor Carpet, No.3[11.2010 - 12.2010] GSJ15 |
58529-35061 |
US $10.48 |
||
|
58529A
|
58529A
58529-35061 Hook, Floor Carpet, No.3[12.2010 -] GSJ15 |
58529-35061 |
US $10.48 |
||
|
58560B
|
58560B
90467-05164-B2 Clip(For Front Floor Carpet)[11.2010 -] GSJ15 DK.GRAY,TRIM1# |
90467-05164-B2 |
from US $0.67 |
||
|
58563H
|
58563H
90467-05164-B2 Clip(For Front Floor Carpet)[11.2010 -] GSJ15 DK.GRAY,TRIM1# |
90467-05164-B2 |
from US $0.67 |
||
|
58570B
|
58570B
58570-35140-B0 Mat Assy, Rear Floor[04.2012 -] GSJ15 DK.GRAY,TRIM1# |
58570-35140-B0 |
US $242.86 |
||
|
58570B
|
58570B
58570-35170-B0 Mat Assy, Rear Floor[11.2010 - 04.2012] GSJ15 DK.GRAY,TRIM1# |
58570-35170-B0 |
US $460.10 |
||
|
58572C
|
58572C
52425-35020 Clip, Rear Floor Mat Set[11.2010 -] GSJ15 |
52425-35020 |
US $2.20 |
||
|
58574A
|
58574A
58574-35021-B0
Plate, Rear Floor Mat Support, Rear
[11.2010 - 06.2013] GSJ15 DK.GRAY,TRIM1# |
58574-35021-B0 |
— | ||
| replacement | |||||
|
58574A
|
58574A
58574-35022-B0 Plate, Rear Floor Mat Support, Rear[11.2010 - 06.2013] GSJ15 DK.GRAY,TRIM1# |
58574-35022-B0 |
from US $49.10 |
||
|
58574A
|
58574A
58574-35022-B0 Plate, Rear Floor Mat Support, Rear[07.2013 -] GSJ15 DK.GRAY,TRIM1# |
58574-35022-B0 |
from US $49.10 |
||
|
58624C
|
58624C
58624-35021 Pad, Center Floor Silencer, Rh[11.2010 -] GSJ15 |
58624-35021 |
US $52.56 |
||
|
58625C
|
58625C
58625-35021 Pad, Center Floor Silencer, Lh[11.2010 -] GSJ15 |
58625-35021 |
US $51.25 |
||
|
9015960477
|
9015960477
90159-60477 SCREW WWASHER |
90159-60477 |
from US $0.67 |
||
|
9016450046
|
9016450046
90164-50046 SCREW, BINDING |
90164-50046 |
US $0.69 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
from US $0.93 |
||
|
9020106043
|
9020106043
90201-06043 Washer, Plate(For Repair Actuator Set) |
90201-06043 |
US $0.69 |
||
|
9020505002
|
9020505002
90205-05002 New Genuine Part |
90205-05002 |
US $0.79 |
||
