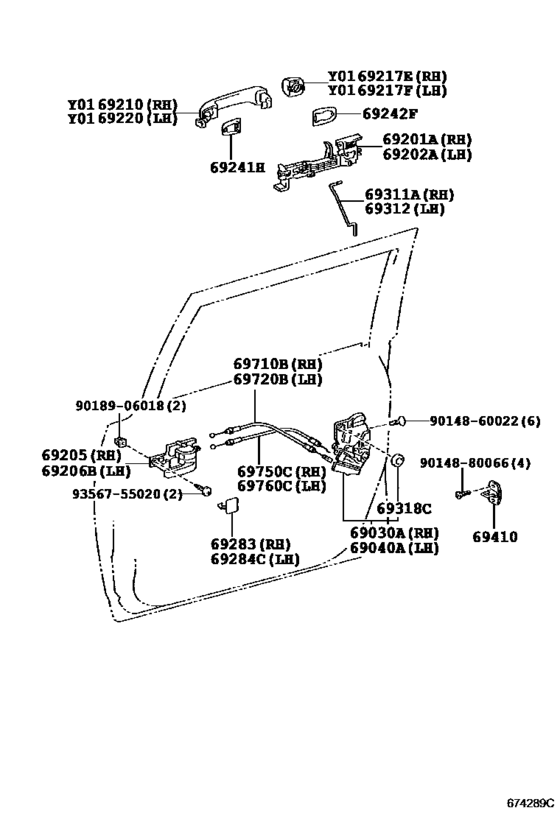

Front Door Lock & Handle ([11.2010 - ] (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69030A
|
69030A
69030-52290 Lock Assy, Front Door W/motor, Rh[11.2010 -] GSJ15 |
69030-52290 |
US $157.76 |
||
|
69040A
|
69040A
69040-35180 Lock Assy, Front Door W/motor, Lh[11.2010 -] GSJ15 |
69040-35180 |
US $162.49 |
||
|
69201A
|
69201A
69201-35010 Frame Sub-Assy, Front Door Outside Handle, RhFRONT DOOR OUTSIDE HANDLE, RH [11.2010 -] GSJ15 |
69201-35010 |
from US $41.88 |
||
|
69202A
|
69202A
69202-35010 Frame Sub-Assy, Front Door Outside Handle, LhFRONT DOOR OUTSIDE HANDLE, LH [11.2010 -] GSJ15 |
69202-35010 |
US $55.02 |
||
|
69205
|
69205
69205-35020-B0 Handle Sub-Assy, Front Door Inside, RhFRONT DOOR INSIDE, RH [11.2010 -] GSJ15 DK.GRAY,TRIM1# |
69205-35020-B0 |
from US $26.47 |
||
|
69206B
|
69206B
69206-35010-B0 Handle Sub-Assy, Front Door Inside, LhFRONT DOOR INSIDE, LH [11.2010 -] GSJ15 DK.GRAY,TRIM1# |
69206-35010-B0 |
from US $26.37 |
||
|
69210
|
69210
69210-35170-B0 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [11.2010 -] GSJ15 SILVER ME.,058 ,2JU ,2JV ,2JX ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS ,3L5 |
69210-35170-B0 |
from US $55.08 |
||
|
69210
|
69210
69210-35170-B1 Handle Assy, Front Door, Outside Rh[12.2011 -] GSJ15 ブラックカラーパッケージ,BLACK,2KC |
69210-35170-B1 |
from US $55.08 |
||
|
69217E
|
69217E
69217-35040-B0 Cover, Front Door Outside Handle, RhFRONT DOOR OUTSIDE HANDLE, RH [11.2010 -] GSJ15 SILVER ME.,058 ,2JU ,2JV ,2JX ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS ,3L5 |
69217-35040-B0 |
from US $17.65 |
||
|
69217E
|
69217E
69217-35040-B1 Cover, Front Door Outside Handle, Rh[12.2011 -] GSJ15 ブラックカラーパッケージ,BLACK,2KC |
69217-35040-B1 |
from US $13.48 |
||
|
69217F
|
69217F
69217-35040-B0 Cover, Front Door Outside Handle, RhFRONT DOOR OUTSIDE HANDLE, RH [11.2010 -] GSJ15 SILVER ME.,058 ,2JU ,2JV ,2JX ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS ,3L5 |
69217-35040-B0 |
from US $17.65 |
||
|
69217F
|
69217F
69217-35040-B1 Cover, Front Door Outside Handle, Rh[12.2011 -] GSJ15 ブラックカラーパッケージ,BLACK,2KC |
69217-35040-B1 |
from US $13.48 |
||
|
69220
|
69220
69210-35170-B0 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [11.2010 -] GSJ15 SILVER ME.,058 ,2JU ,2JV ,2JX ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS ,3L5 |
69210-35170-B0 |
from US $55.08 |
||
|
69220
|
69220
69210-35170-B1 Handle Assy, Front Door, Outside Rh[12.2011 -] GSJ15 ブラックカラーパッケージ,BLACK,2KC |
69210-35170-B1 |
from US $55.08 |
||
|
69241H
|
69241H
69241-35030 Pad, Front Door Outside Handle, FrontFRONT DOOR OUTSIDE HANDLE, FRONT [11.2010 -] GSJ15 |
69241-35030 |
from US $1.27 |
||
|
69242F
|
69242F
69242-35020 Pad, Front Door Outside Handle, RearFRONT DOOR OUTSIDE HANDLE, REAR [11.2010 -] GSJ15 |
69242-35020 |
from US $1.27 |
||
|
69283
|
69283
69283-35010-B0 Plug, Front Door Inside Handle Bezel, RhFRONT DOOR INSIDE HANDLE BEZEL, RH [11.2010 -] GSJ15 DK.GRAY,TRIM1# |
69283-35010-B0 |
from US $0.78 |
||
|
69284C
|
69284C
69283-35010-B0 Plug, Front Door Inside Handle Bezel, RhFRONT DOOR INSIDE HANDLE BEZEL, RH [11.2010 -] GSJ15 DK.GRAY,TRIM1# |
69283-35010-B0 |
from US $0.78 |
||
|
69311A
|
69311A
69311-35060 Rod, Front Door Lock Open, RhFRONT DOOR LOCK OPEN, RH [11.2010 -] GSJ15 |
69311-35060 |
US $5.53 |
||
|
69312
|
69312
69312-35060 Rod, Front Door Lock Open, LhFRONT DOOR LOCK OPEN, LH [11.2010 -] GSJ15 |
69312-35060 |
US $5.53 |
||
|
69318C
|
69318C
69318-47010 Seal, Front Door Lock Hole, Rh[11.2010 -] GSJ15 |
69318-47010 |
US $1.51 |
||
|
69410
|
69410
69410-33010 Plate Assy, Front Door Lock Striker[11.2010 -] GSJ15 |
69410-33010 |
from US $13.87 |
||
|
69710B
|
69710B
69710-35050 Cable Assy, Front Door Lock Remote Control, RhFRONT DOOR LOCK REMOTE CONTROL, RH [11.2010 -] GSJ15 |
69710-35050 |
US $14.12 |
||
|
69720B
|
69720B
69710-35050 Cable Assy, Front Door Lock Remote Control, RhFRONT DOOR LOCK REMOTE CONTROL, RH [11.2010 -] GSJ15 |
69710-35050 |
US $14.12 |
||
|
69750C
|
69750C
69750-35020 Cable Assy, Front Door Inside Locking, RhFRONT DOOR INSIDE LOCKING, RH [11.2010 -] GSJ15 |
69750-35020 |
US $13.34 |
||
|
69760C
|
69760C
69750-35020 Cable Assy, Front Door Inside Locking, RhFRONT DOOR INSIDE LOCKING, RH [11.2010 -] GSJ15 |
69750-35020 |
US $13.34 |
||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.48 |
||
|
9014880066
|
9014880066
90148-80066 SCREW HEXALOBULAR |
90148-80066 |
from US $0.61 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
from US $0.93 |
||
|
9356755020
|
9356755020
93567-55020 SCREW |
93567-55020 |
US $0.83 |
