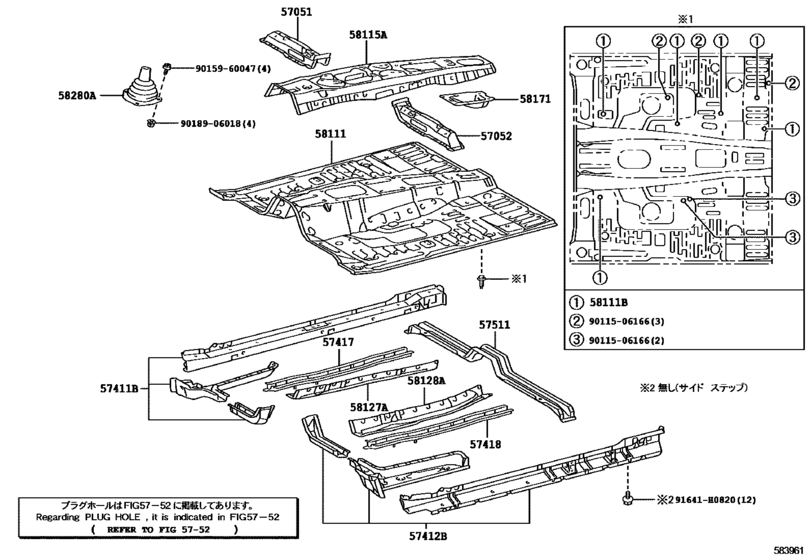

Front Floor Panel & Front Floor Member ([11.2010 - ] (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57051
|
57051
57051-35051 Member Sub-Assy, Front Floor Cross, Rh[11.2010 -] GSJ15 |
57051-35051 |
US $42.37 |
||
|
57052
|
57052
57052-35051 Member Sub-Assy, Front Floor Cross, Lh[11.2010 -] GSJ15 |
57052-35051 |
US $41.35 |
||
|
57411B
|
57411B
57401-35908 Member, Floor Side, Inner Rh[11.2010 - 05.2011] GSJ15 |
57401-35908 |
US $374.19 |
||
| replacement | |||||
|
57411B
|
57411B
57401-35910 Member, Floor Side, Inner Rh[11.2010 - 05.2011] GSJ15 |
57401-35910 |
US $313.45 |
||
|
57411B
|
57411B
57401-35910 Member, Floor Side, Inner Rh[05.2011 -] GSJ15 |
57401-35910 |
US $313.45 |
||
|
57412B
|
57412B
57402-35909 Member, Floor Side, Inner Lh[11.2010 - 05.2011] GSJ15 |
57402-35909 |
US $374.19 |
||
| replacement | |||||
|
57412B
|
57412B
57402-35910 Member, Floor Side, Inner Lh[11.2010 - 05.2011] GSJ15 |
57402-35910 |
US $313.45 |
||
|
57412B
|
57412B
57402-35910 Member, Floor Side, Inner Lh[05.2011 -] GSJ15 |
57402-35910 |
US $313.45 |
||
|
57417
|
57417
57417-35051 Reinforcement, Front Floor Under, Rh[11.2010 -] GSJ15 |
57417-35051 |
from US $36.87 |
||
|
57418
|
57418
57417-35061 Reinforcement, Front Floor Under, Lh[11.2010 -] GSJ15 |
57417-35061 |
US $36.87 |
||
|
57511
|
57511
57509-35010 Reinforcement Sub-Assy, Front Floor, Center[11.2010 -] GSJ15 |
57509-35010 |
US $113.57 |
||
|
58111
|
58111
58111-35441 Pan, Front FloorFRONT FLOOR [11.2010 -] GSJ15 |
58111-35441 |
US $446.99 |
||
|
58111B
|
58111B
90115-06166 Bolt, Weld(For Front Floor Pan)[11.2010 -] GSJ15 |
90115-06166 |
from US $0.89 |
||
|
58115A
|
58115A
58115-60011 Reinforcement, Front Floor Panel[11.2010 -] GSJ15 |
58115-60011 |
US $129.58 |
||
|
58127A
|
58127A
58127-35010 Reinforce, Front Cross To Front Panel Member, Rh[11.2010 -] GSJ15 |
58127-35010 |
from US $32.50 |
||
|
58128A
|
58128A
58128-35011 Reinforcement, Front Cross To Front Panel Member, Lh[11.2010 -] GSJ15 |
58128-35011 |
US $35.47 |
||
|
58171
|
58171
58171-60020 Reinforcement, Parking Brake Base[11.2010 -] GSJ15 |
58171-60020 |
US $36.40 |
||
|
58280A
|
58280A
58280-35350 Boot Assy, Shift Lever[11.2010 -] GSJ15 |
58280-35350 |
US $24.61 |
||
|
91641H0820
|
91641H0820
91641-H0820 Bolt |
91641-H0820 |
from US $0.76 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.89 |
||
|
9015960047
|
9015960047
90159-60047 SCREWWWASHER |
90159-60047 |
from US $1.05 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
from US $0.93 |
||
