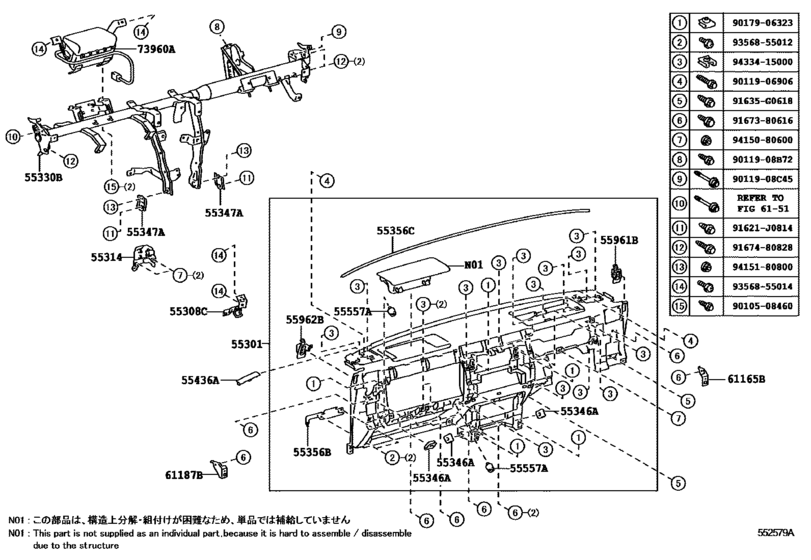

Instrument Panel & Glove Compartment ([11.2010 - ] (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55301
|
55301
55301-35270-B0 Panel Sub-Assy, Instrument[11.2010 -] GSJ15 DK.GRAY,TRIM1# |
55301-35270-B0 |
US $403.31 |
||
|
55308C
|
55308C
55308-35070 Bracket Sub-Assy, Instrument Panel, Center[11.2010 -] GSJ15 |
55308-35070 |
US $8.88 |
||
|
55314
|
55314
55690-35011 Retainer, Instrument Panel Side[11.2010 -] GSJ15 |
55690-35011 |
US $17.47 |
||
|
55330B
|
55330B
55330-35220 Reinforcement Assy, Instrument Panel[11.2010 - 01.2012] GSJ15 |
55330-35220 |
US $267.90 |
||
| replacement | |||||
|
55330B
|
55330B
55330-35221 Reinforcement Assy, Instrument Panel[11.2010 - 01.2012] GSJ15 |
55330-35221 |
US $202.38 |
||
|
55330B
|
55330B
55330-35221 Reinforcement Assy, Instrument Panel[02.2012 -] GSJ15 |
55330-35221 |
US $202.38 |
||
|
55346A
|
55346A
55345-12060 Clip, Instrument Panel, No.1[11.2010 -] GSJ15 |
55345-12060 |
US $1.10 |
||
|
55347A
|
55347A
55347-35050 Bracket, Instrument Panel Brace Mounting, No.1[11.2010 -] GSJ15 |
55347-35050 |
US $3.93 |
||
|
55356B
|
55356B
61191-35010 Plate, Instrument Panel, Lh[11.2010 -] GSJ15 |
61191-35010 |
US $10.19 |
||
|
55356C
|
55356C
55356-35060 Cushion, Instrument Panel, No.2INSTRUMENT PANEL, NO.2 [11.2010 -] GSJ15 |
55356-35060 |
US $7.28 |
||
|
55436A
|
55436A
55436-35020 Panel, Instrument Panel Finish, End LhINSTRUMENT PANEL FINISH, END LH [11.2010 -] GSJ15 |
55436-35020 |
US $4.95 |
||
|
55557A
|
55557A
55557-60050 Cushion, Glove Compartment Door CheckGLOVE COMPARTMENT DOOR CHECK [11.2010 -] GSJ15 |
55557-60050 |
from US $0.69 |
||
|
55961B
|
55961B
55961-35030 Nozzle, Side Defroster, No.1SIDE DEFROSTER, NO.1 [11.2010 -] GSJ15 |
55961-35030 |
US $6.55 |
||
|
55962B
|
55962B
55962-35010 Nozzle, Side Defroster, LhSIDE DEFROSTER, LH [11.2010 -] GSJ15 |
55962-35010 |
US $6.55 |
||
|
61165B
|
61165B
61187-35040 Bracket, Instrument Panel To Cowl Side, Rh[11.2010 -] GSJ15 |
61187-35040 |
US $4.80 |
||
|
61187B
|
61187B
61165-35050 Bracket, Instrument Panel Side, No.4[11.2010 -] GSJ15 |
61165-35050 |
US $4.80 |
||
|
73960A
|
73960A
73960-35100 Air Bag Assy, Instrument Panel Passenger W/o Door[11.2010 -] GSJ15 |
73960-35100 |
US $1,019.20 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.63 |
||
|
91635G0618
|
91635G0618
91635-G0618 BOLT WWASHER |
91635-G0618 |
US $0.87 |
||
|
9011908B72
|
9011908B72
90119-08B72 New Genuine Part |
90119-08B72 |
US $1.16 |
||
|
9011908C45
|
9011908C45
90119-08C45 New Genuine Part |
90119-08C45 |
US $2.91 |
||
|
9010508460
|
9010508460
90105-08460 New Genuine Part |
90105-08460 |
US $1.02 |
||
|
9011906906
|
9011906906
90119-06906 BOLT WWASHER |
90119-06906 |
US $0.70 |
||
|
9017906323
|
9017906323
90179-06323 Nut |
90179-06323 |
US $1.38 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.57 |
||
|
9167480828
|
9167480828
91674-80828 BOLT, FLANGE |
91674-80828 |
US $1.24 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
US $0.69 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.63 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.76 |
||
|
9433415000
|
9433415000
94334-15000 New Genuine Part |
94334-15000 |
US $1.02 |
||
