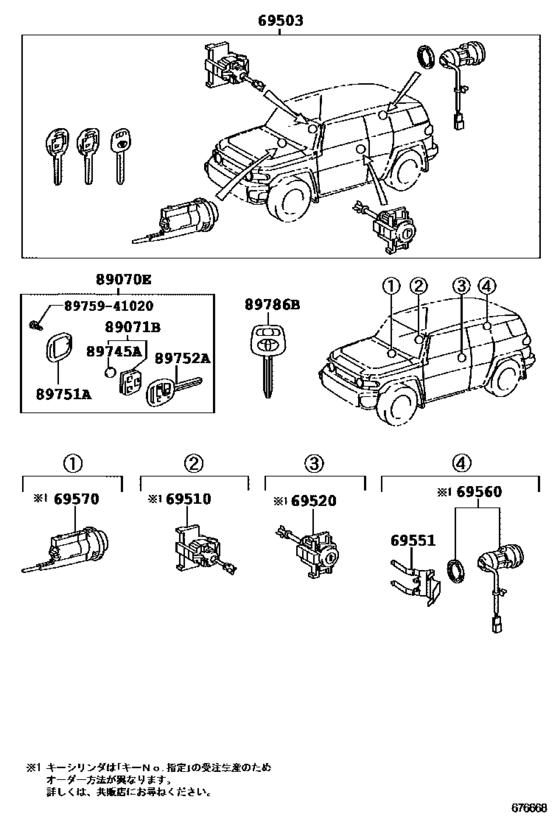

Lock Cylinder Set ([11.2010 - ] (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69503
|
69503
69005-35B80 Cylinder Set, Lock[11.2010 -] GSJ15 |
69005-35B80 |
US $235.87 |
||
|
69510
|
69510
69510-35110 Cylinder Assy, Front Door Lock, Rh[11.2010 -] GSJ15 |
69510-35110 |
US $77.17 |
||
|
69520
|
69520
69520-35090 Cylinder Assy, Front Door Lock, Lh[11.2010 -] GSJ15 |
69520-35090 |
US $77.17 |
||
|
69551
|
69551
69511-16030 Retainer, Front Door Lock Cylinder[11.2010 -] GSJ15 |
69511-16030 |
US $2.52 |
||
|
69560
|
69560
69009-35010 Cylinder Assy, Back Door Lock[11.2010 -] GSJ15 |
69009-35010 |
US $88.82 |
||
|
69570
|
69570
69570-60060 Cylinder Assy, Ignition Switch Lock[11.2010 -] GSJ15 |
69570-60060 |
US $133.95 |
||
|
89070E
|
89070E
89070-35190 Transmitter Assy, Door Control[11.2010 -] GSJ15 ブランク キー |
89070-35190 |
US $202.64 |
||
|
89071B
|
89071B
89071-35160 Module Set, Transmitter Sub-Assy, Door Control[11.2010 -] GSJ15 |
89071-35160 |
US $138.32 |
||
|
89745A
|
89745A
89745-48030 Battery, Transmitter[11.2010 -] GSJ15 |
89745-48030 |
US $5.82 |
||
|
89751A
|
89751A
89751-50011 Cover, Transmitter Housing[11.2010 -] GSJ15 |
89751-50011 |
from US $8.26 |
||
|
89752A
|
89752A
89752-60050 Case, Transmitter HousingTRANSMITTER HOUSING [11.2010 -] GSJ15 ブランク キー |
89752-60050 |
from US $16.93 |
||
|
89786B
|
89786B
89786-60220 Transmitter, Transponder Key SubTRANSPONDER KEY SUB [11.2010 -] GSJ15 ブランクキー |
89786-60220 |
from US $30.84 |
||
|
8975941020
|
8975941020
89759-41020 Screw, Door Control Transmitter |
89759-41020 |
from US $1.05 |
