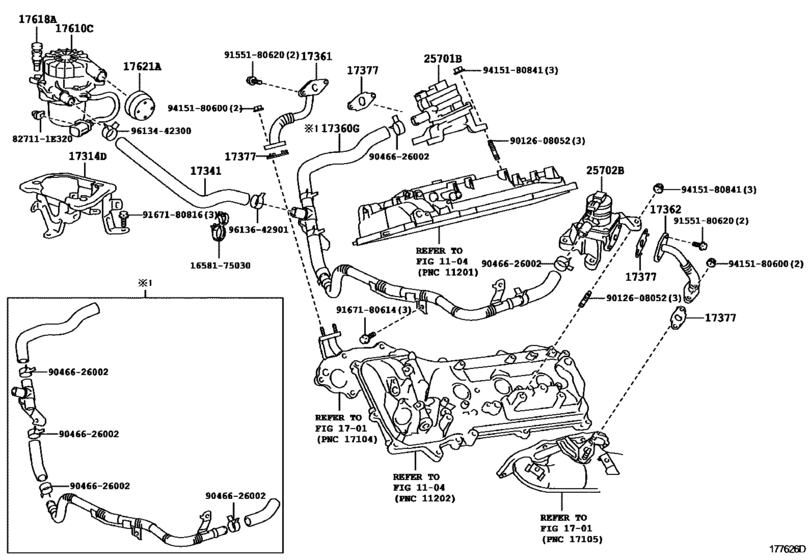

Manifold Air Injection System ([11.2010 - ] (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17314D
|
17314D
17314-0W030 Bracket, Air Pump, No.1AIR PUMP, NO.1 [11.2010 - 04.2012] 1GRFE..GSJ15 |
17314-0W030 |
US $104.83 |
||
| replacement | |||||
|
17314D
|
17314D
17314-0W031 Bracket, Air Pump, No.1[11.2010 - 04.2012] 1GRFE..GSJ15 |
17314-0W031 |
US $76.35 |
||
|
17314D
|
17314D
17314-0W031 Bracket, Air Pump, No.1[05.2012 -] 1GRFE..GSJ15 |
17314-0W031 |
US $76.35 |
||
|
17341
|
17341
17341-31100 Hose, No.1(For Air Injection System)[11.2010 -] 1GRFE..GSJ15 |
17341-31100 |
US $35.78 |
||
|
17360G
|
17360G
17360-31010 Tube Assy, Air[11.2010 -] 1GRFE..GSJ15 |
17360-31010 |
US $108.24 |
||
|
17361
|
17361
17361-31030 Tube, AirAIR [11.2010 -] 1GRFE..GSJ15 |
17361-31030 |
US $53.26 |
||
|
17362
|
17362
17362-31020 Tube, Air, No.2AIR, NO.2 [11.2010 -] 1GRFE..GSJ15 |
17362-31020 |
US $42.66 |
||
|
17377
|
17377
17377-38010 Gasket, Air TubeAIR TUBE, NO.2 [11.2010 -] 1GRFE..GSJ15 |
17377-38010 |
from US $1.65 |
||
|
17610C
|
17610C
17610-0C040 Pump Assy, AirAIR [11.2010 -] 1GRFE..GSJ15 |
17610-0C040 |
from US $396 |
||
|
17618A
|
17618A
17618-0C010 Insulator, Air Pump[11.2010 -] 1GRFE..GSJ15 |
17618-0C010 |
US $13.08 |
||
|
17621A
|
17621A
17621-0C010 Inlet, Air PumpAIR PUMP [11.2010 -] 1GRFE..GSJ15 |
17621-0C010 |
US $56.11 |
||
|
25701B
|
25701B
25701-31010
Valve Set, Emission Control, No.1
[11.2010 - 04.2011] 1GRFE..GSJ15 |
25701-31010 |
— | ||
| replacement | |||||
|
25701B
|
25701B
25701-31014 Valve Set, Emission Control, No.1[11.2010 - 04.2011] 1GRFE..GSJ15 |
25701-31014 |
from US $134.39 |
||
|
25701B
|
25701B
25701-31011
Valve Set, Emission Control, No.1
[05.2011 - 06.2012] 1GRFE..GSJ15 |
25701-31011 |
— | ||
| replacement | |||||
|
25701B
|
25701B
25701-31014 Valve Set, Emission Control, No.1[05.2011 - 06.2012] 1GRFE..GSJ15 |
25701-31014 |
from US $134.39 |
||
|
25701B
|
25701B
25701-31012
Valve Set, Emission Control, No.1
[07.2012 - 03.2013] 1GRFE..GSJ15 |
25701-31012 |
— | ||
| replacement | |||||
|
25701B
|
25701B
25701-31014 Valve Set, Emission Control, No.1[07.2012 - 03.2013] 1GRFE..GSJ15 |
25701-31014 |
from US $134.39 |
||
|
25701B
|
25701B
25701-31013
Valve Set, Emission Control, No.1
[04.2013 - 06.2014] 1GRFE..GSJ15 |
25701-31013 |
— | ||
| replacement | |||||
|
25701B
|
25701B
25701-31014 Valve Set, Emission Control, No.1[04.2013 - 06.2014] 1GRFE..GSJ15 |
25701-31014 |
from US $134.39 |
||
|
25701B
|
25701B
25701-31014 Valve Set, Emission Control, No.1[07.2014 -] 1GRFE..GSJ15 |
25701-31014 |
from US $134.39 |
||
|
25702B
|
25702B
25702-31010
Valve Set, Emission Control, No.2
[11.2010 - 04.2011] 1GRFE..GSJ15 |
25702-31010 |
— | ||
| replacement | |||||
|
25702B
|
25702B
25702-31014 Valve Set, Emission Control, No.2[11.2010 - 04.2011] 1GRFE..GSJ15 |
25702-31014 |
from US $172.44 |
||
|
25702B
|
25702B
25702-31011
Valve Set, Emission Control, No.2
[05.2011 - 06.2012] 1GRFE..GSJ15 |
25702-31011 |
— | ||
| replacement | |||||
|
25702B
|
25702B
25702-31014 Valve Set, Emission Control, No.2[05.2011 - 06.2012] 1GRFE..GSJ15 |
25702-31014 |
from US $172.44 |
||
|
25702B
|
25702B
25702-31012
Valve Set, Emission Control, No.2
[07.2012 - 03.2013] 1GRFE..GSJ15 |
25702-31012 |
— | ||
| replacement | |||||
|
25702B
|
25702B
25702-31014 Valve Set, Emission Control, No.2[07.2012 - 03.2013] 1GRFE..GSJ15 |
25702-31014 |
from US $172.44 |
||
|
25702B
|
25702B
25702-31013
Valve Set, Emission Control, No.2
[04.2013 - 06.2014] 1GRFE..GSJ15 |
25702-31013 |
— | ||
| replacement | |||||
|
25702B
|
25702B
25702-31014 Valve Set, Emission Control, No.2[04.2013 - 06.2014] 1GRFE..GSJ15 |
25702-31014 |
from US $172.44 |
||
|
25702B
|
25702B
25702-31014 Valve Set, Emission Control, No.2[07.2014 -] 1GRFE..GSJ15 |
25702-31014 |
from US $172.44 |
||
|
827111E320
|
827111E320
82711-1E320 Clamp, Wiring Harness |
82711-1E320 |
US $1.25 |
||
|
1658175030
|
1658175030
16581-75030
Clamp, Hose(for Water Hose)
|
16581-75030 |
— | ||
|
9012608052
|
9012608052
90126-08052 Bolt, Stud(For Oil Pan) |
90126-08052 |
from US $0.76 |
||
|
9046626002
|
9046626002
90466-26002 Clamp Or Clip, No.1(For Air Injection System Hose, No.1)NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1) |
90466-26002 |
US $3.23 |
||
|
9155180620
|
9155180620
91551-80620 Bolt |
91551-80620 |
from US $0.63 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.76 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
|
9415180841
|
9415180841
94151-80841 FLANGE NUT |
94151-80841 |
from US $0.76 |
||
|
9613442300
|
9613442300
96134-42300 Clip Or Clamp(For Ventilation Hose) |
96134-42300 |
US $1.61 |
||
|
9613642901
|
9613642901
96136-42901 Clip Or Clamp(For Ventilation Hose) |
96136-42901 |
from US $2.89 |
||
