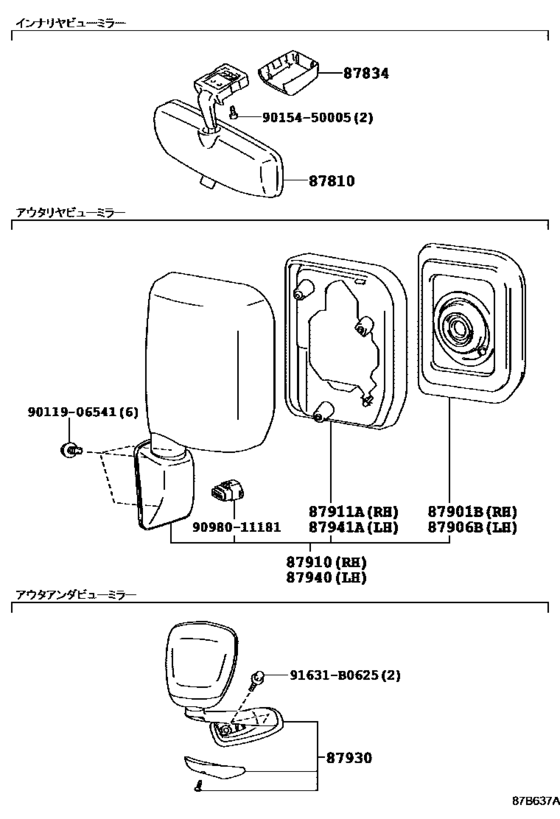

Mirror ([11.2010 - ] (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-52010-B1 Mirror Assy, Inner Rear ViewINNER REAR VIEW [11.2010 -] GSJ15 DK.GRAY,TRIM1# |
87810-52010-B1 |
US $74.95 |
||
|
87834
|
87834
87834-35020 Cover, Inner Rear View Mirror Stay HolderINNER REAR VIEW MIRROR STAY HOLDER [11.2010 -] GSJ15 |
87834-35020 |
US $6.20 |
||
|
87901B
|
87901B
87931-35B40 Mirror Sub-Assy, Outer Rear View, Rh[11.2010 -] GSJ15 アウタミラー−リモコン 有り（ヒータ） |
87931-35B40 |
US $67.32 |
||
|
87901B
|
87901B
87931-35B50 Mirror Sub-Assy, Outer Rear View, Rh[11.2010 -] GSJ15 |
87931-35B50 |
US $33.44 |
||
|
87906B
|
87906B
87961-35B10 Mirror Sub-Assy, Outer Rear View, Lh[11.2010 -] GSJ15 アウタミラー−リモコン 有り（ヒータ） |
87961-35B10 |
US $67.32 |
||
|
87906B
|
87906B
87961-35B20 Mirror Sub-Assy, Outer Rear View, Lh[11.2010 -] GSJ15 |
87961-35B20 |
US $33.44 |
||
|
87910
|
87910
87910-35B40 Mirror Assy, Outer Rear View, Rh[11.2010 -] GSJ15 アウタミラー−リモコン 有り（ヒータ） |
87910-35B40 |
US $240.24 |
||
|
87910
|
87910
87910-35B50 Mirror Assy, Outer Rear View, Rh[11.2010 -] GSJ15 |
87910-35B50 |
US $202.38 |
||
|
87910
|
87910
87910-35B70 Mirror Assy, Outer Rear View, Rh[12.2011 -] GSJ15 アウタミラー−リモコン（黒） |
87910-35B70 |
US $250.24 |
||
|
87910
|
87910
87910-35B80 Mirror Assy, Outer Rear View, Rh[12.2011 -] GSJ15 アウタミラー−リモコン（黒），有り（ヒータ） |
87910-35B80 |
US $301.34 |
||
|
87911A
|
87911A
87911-35040 Visor, Outer Mirror, Rh[11.2010 -] GSJ15 |
87911-35040 |
US $9.09 |
||
|
87930
|
87930
87930-35030-A0 Device Assy, Front Fender Side View, Lh[11.2010 -] GSJ15 WHITE,058 |
87930-35030-A0 |
US $165.98 |
||
|
87930
|
87930
87930-35030-B0 Device Assy, Front Fender Side View, Lh[11.2010 - 08.2012] GSJ15 GRAY ME.,2KB |
87930-35030-B0 |
US $221.31 |
||
|
87930
|
87930
87930-35030-B1 Device Assy, Front Fender Side View, Lh[08.2012 -] GSJ15 CEMENT GRAY ME.,2KY |
87930-35030-B1 |
US $182.41 |
||
|
87930
|
87930
87930-35030-C0 Device Assy, Front Fender Side View, Lh[11.2010 -] GSJ15 BLACK,202 ,2KC |
87930-35030-C0 |
US $206.72 |
||
|
87930
|
87930
87930-35030-D0 Device Assy, Front Fender Side View, Lh[11.2010 - 08.2011] GSJ15 BRICK RED ME.,2JX |
87930-35030-D0 |
US $221.31 |
||
|
87930
|
87930
87930-35030-D1 Device Assy, Front Fender Side View, Lh[08.2011 - 08.2012] GSJ15 RED,3L5 |
87930-35030-D1 |
US $221.25 |
||
|
87930
|
87930
87930-35030-E0 Device Assy, Front Fender Side View, Lh[11.2010 -] GSJ15 BEIGE,2KP |
87930-35030-E0 |
US $165.98 |
||
|
87930
|
87930
87930-35030-E1 Device Assy, Front Fender Side View, Lh[08.2012 - 08.2014] GSJ15 ORANGE,2LF |
87930-35030-E1 |
US $183.46 |
||
|
87930
|
87930
87930-35030-F0 Device Assy, Front Fender Side View, Lh[11.2010 - 08.2012] GSJ15 YELLOW,2JU |
87930-35030-F0 |
US $165.98 |
||
|
87930
|
87930
87930-35030-G0 Device Assy, Front Fender Side View, Lh[11.2010 - 08.2014] GSJ15 DK.GREEN,2KD |
87930-35030-G0 |
US $183.46 |
||
|
87930
|
87930
87930-35030-J0 Device Assy, Front Fender Side View, Lh[11.2010 - 08.2013] GSJ15 GRAYISH BLUE,2KQ |
87930-35030-J0 |
US $183.46 |
||
|
87930
|
87930
87930-35030-J1 Device Assy, Front Fender Side View, Lh[11.2010 - 08.2012] GSJ15 BLUE,2JV |
87930-35030-J1 |
US $221.31 |
||
|
87930
|
87930
87930-35030-J2 Device Assy, Front Fender Side View, Lh[08.2013 -] GSJ15 SMOKY BLUE,2LS |
87930-35030-J2 |
US $223.16 |
||
|
87940
|
87940
87940-35B10 Mirror Assy, Outer Rear View, Lh[11.2010 -] GSJ15 アウタミラー−リモコン 有り（ヒータ） |
87940-35B10 |
US $301.34 |
||
|
87940
|
87940
87940-35B20 Mirror Assy, Outer Rear View, Lh[11.2010 -] GSJ15 |
87940-35B20 |
US $202.38 |
||
|
87940
|
87940
87940-35B40 Mirror Assy, Outer Rear View, Lh[12.2011 -] GSJ15 アウタミラー−リモコン（黒） |
87940-35B40 |
US $202.38 |
||
|
87940
|
87940
87940-35B50 Mirror Assy, Outer Rear View, Lh[12.2011 -] GSJ15 アウタミラー−リモコン（黒），有り（ヒータ） |
87940-35B50 |
US $301.34 |
||
|
87941A
|
87941A
87941-35040 Visor, Outer Mirror, Lh[11.2010 -] GSJ15 |
87941-35040 |
US $9.77 |
||
|
91631B0625
|
91631B0625
91631-B0625 BOLT WWASHER |
91631-B0625 |
from US $0.63 |
||
|
9011906541
|
9011906541
90119-06541 New Genuine Part |
90119-06541 |
US $1.93 |
||
|
9015450005
|
9015450005
90154-50005 SCREW |
90154-50005 |
US $0.70 |
||
|
9098011181
|
9098011181
90980-11181 HOUSING CONNECTOR |
90980-11181 |
from US $2.91 |
