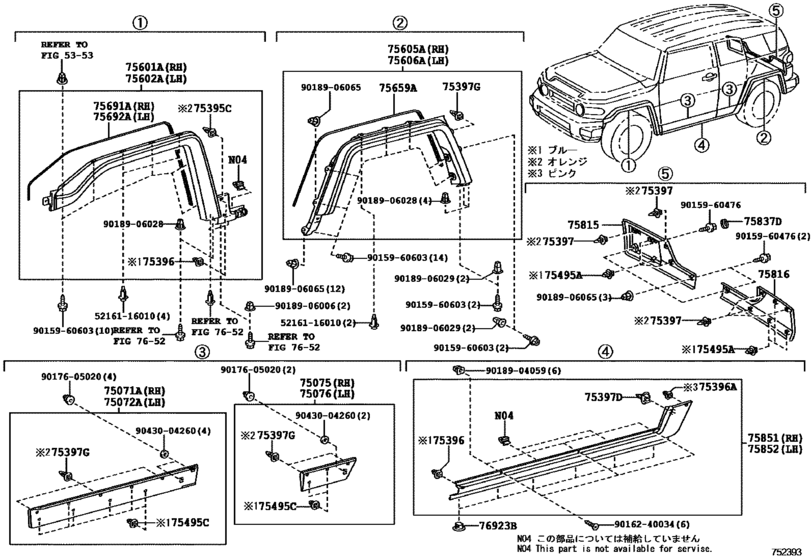

Moulding ([11.2010 - ] (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75071A
|
75071A
75071-35141 Moulding Sub-Assy, Front Door, Outside Rh[11.2010 - 12.2011] GSJ15 |
75071-35141 |
US $164.53 |
||
| replacement | |||||
|
75071A
|
75071A
75071-35142 Moulding Sub-Assy, Front Door, Outside Rh[11.2010 - 12.2011] GSJ15 |
75071-35142 |
from US $124.08 |
||
|
75071A
|
75071A
75071-35142 Moulding Sub-Assy, Front Door, Outside Rh[01.2012 -] GSJ15 |
75071-35142 |
from US $124.08 |
||
|
75072A
|
75072A
75072-35141 Moulding Sub-Assy, Front Door, Outside Lh[11.2010 - 12.2011] GSJ15 |
75072-35141 |
US $164.53 |
||
| replacement | |||||
|
75072A
|
75072A
75072-35142 Moulding Sub-Assy, Front Door, Outside Lh[11.2010 - 12.2011] GSJ15 |
75072-35142 |
from US $124.01 |
||
|
75072A
|
75072A
75072-35142 Moulding Sub-Assy, Front Door, Outside Lh[01.2012 -] GSJ15 |
75072-35142 |
from US $124.01 |
||
|
75075
|
75075
75075-35161 Moulding Sub-Assy, Rear Door, Outside Rh[11.2010 - 12.2011] GSJ15 |
75075-35161 |
US $74.26 |
||
| replacement | |||||
|
75075
|
75075
75075-35162 Moulding Sub-Assy, Rear Door, Outside Rh[11.2010 - 12.2011] GSJ15 |
75075-35162 |
from US $54.56 |
||
|
75075
|
75075
75075-35162 Moulding Sub-Assy, Rear Door, Outside Rh[01.2012 -] GSJ15 |
75075-35162 |
from US $54.56 |
||
|
75076
|
75076
75076-35161 Moulding Sub-Assy, Rear Door, Outside Lh[11.2010 - 12.2011] GSJ15 |
75076-35161 |
US $74.26 |
||
| replacement | |||||
|
75076
|
75076
75076-35162 Moulding Sub-Assy, Rear Door, Outside Lh[11.2010 - 12.2011] GSJ15 |
75076-35162 |
from US $54.56 |
||
|
75076
|
75076
75076-35162 Moulding Sub-Assy, Rear Door, Outside Lh[01.2012 -] GSJ15 |
75076-35162 |
from US $54.56 |
||
|
75395C
|
75395C
75395-35070 Clip, Outside Moulding, No.1[11.2010 -] GSJ15 |
75395-35070 |
from US $1.94 |
||
|
75396
|
75396
75396-35020 Clip, Outside Moulding, No.2[11.2010 -] GSJ15 |
75396-35020 |
from US $0.74 |
||
|
75396A
|
75396A
75396-04010 Clip, Outside Moulding, No.2OUTSIDE MOULDING, NO.2 [11.2010 -] GSJ15 |
75396-04010 |
from US $0.76 |
||
|
75397
|
75397
75397-35010 Clip, Outside Moulding, No.1[11.2010 -] GSJ15 |
75397-35010 |
from US $2.01 |
||
|
75397D
|
75397D
75494-42010 Clip, Outside Moulding, No.3[11.2010 -] GSJ15 |
75494-42010 |
from US $1.22 |
||
|
75397G
|
75397G
75397-35010 Clip, Outside Moulding, No.1[11.2010 -] GSJ15 |
75397-35010 |
from US $2.01 |
||
|
75495A
|
75495A
75495-35010 Clip, Outside Moulding, No.4[11.2010 -] GSJ15 |
75495-35010 |
from US $0.76 |
||
|
75495C
|
75495C
75495-35010 Clip, Outside Moulding, No.4[11.2010 -] GSJ15 |
75495-35010 |
from US $0.76 |
||
|
75601A
|
75601A
53087-35170
Moulding Sub-Assy, Front Fender, Rh
[11.2010 - 12.2011] GSJ15 |
53087-35170 |
— | ||
| replacement | |||||
|
75601A
|
75601A
53087-35171 Moulding Sub-Assy, Front Fender, Rh[11.2010 - 12.2011] GSJ15 |
53087-35171 |
from US $130.68 |
||
|
75601A
|
75601A
53087-35171 Moulding Sub-Assy, Front Fender, Rh[01.2012 -] GSJ15 |
53087-35171 |
from US $130.68 |
||
|
75602A
|
75602A
53088-35170
Moulding Sub-Assy, Front Fender, Lh
[11.2010 - 12.2011] GSJ15 |
53088-35170 |
— | ||
| replacement | |||||
|
75602A
|
75602A
53088-35171 Moulding Sub-Assy, Front Fender, Lh[11.2010 - 12.2011] GSJ15 |
53088-35171 |
from US $130.68 |
||
|
75602A
|
75602A
53088-35171 Moulding Sub-Assy, Front Fender, Lh[01.2012 -] GSJ15 |
53088-35171 |
from US $130.68 |
||
|
75605A
|
75605A
75605-35130
Moulding Sub-Assy, Quarter Outside, Rh
[11.2010 - 12.2011] GSJ15 |
75605-35130 |
— | ||
| replacement | |||||
|
75605A
|
75605A
75605-35131 Moulding Sub-Assy, Quarter Outside, Rh[11.2010 - 12.2011] GSJ15 |
75605-35131 |
US $142.80 |
||
|
75605A
|
75605A
75605-35131 Moulding Sub-Assy, Quarter Outside, Rh[01.2012 -] GSJ15 |
75605-35131 |
US $142.80 |
||
|
75606A
|
75606A
75606-35130
Moulding Sub-Assy, Quarter Outside, Lh
[11.2010 - 12.2011] GSJ15 |
75606-35130 |
— | ||
| replacement | |||||
|
75606A
|
75606A
75606-35131 Moulding Sub-Assy, Quarter Outside, Lh[11.2010 - 12.2011] GSJ15 |
75606-35131 |
US $142.80 |
||
|
75606A
|
75606A
75606-35131 Moulding Sub-Assy, Quarter Outside, Lh[01.2012 -] GSJ15 |
75606-35131 |
US $142.80 |
||
|
75659A
|
75659A
75659-35110 Pad, Quarter Panel Moulding, No.1QUARTER PANEL MOULDING, NO.1 [11.2010 -] GSJ15 |
75659-35110 |
US $8.56 |
||
|
75691A
|
75691A
75691-35040 Pad, Front Fender Outside Moulding, RhFRONT FENDER OUTSIDE MOULDING, RH [11.2010 -] GSJ15 |
75691-35040 |
US $10.48 |
||
|
75692A
|
75692A
75691-35040 Pad, Front Fender Outside Moulding, RhFRONT FENDER OUTSIDE MOULDING, RH [11.2010 -] GSJ15 |
75691-35040 |
US $10.48 |
||
|
75815
|
75815
75815-35020
Moulding, Back Door Outside, Rh
[11.2010 - 12.2011] GSJ15 |
75815-35020 |
— | ||
| replacement | |||||
|
75815
|
75815
75815-35021 Moulding, Back Door Outside, Rh[11.2010 - 12.2011] GSJ15 |
75815-35021 |
US $63.50 |
||
|
75815
|
75815
75815-35021 Moulding, Back Door Outside, Rh[01.2012 -] GSJ15 |
75815-35021 |
US $63.50 |
||
|
75816
|
75816
75816-35011
Moulding, Back Door Outside, Lh
[11.2010 - 12.2011] GSJ15 |
75816-35011 |
— | ||
| replacement | |||||
|
75816
|
75816
75816-35012 Moulding, Back Door Outside, Lh[11.2010 - 12.2011] GSJ15 |
75816-35012 |
from US $91.69 |
||
|
75816
|
75816
75816-35012 Moulding, Back Door Outside, Lh[01.2012 -] GSJ15 |
75816-35012 |
from US $91.69 |
||
|
75837D
|
75837D
75837-35010
Cover, Back Door Finish, Rh
[11.2010 - 12.2011] GSJ15 |
75837-35010 |
— | ||
| replacement | |||||
|
75837D
|
75837D
75837-35011 Cover, Back Door Finish, Rh[11.2010 - 12.2011] GSJ15 |
75837-35011 |
US $2.75 |
||
|
75837D
|
75837D
75837-35011 Cover, Back Door Finish, Rh[01.2012 -] GSJ15 |
75837-35011 |
US $2.75 |
||
|
75851
|
75851
75805-35120 Moulding, Rocker Panel, RhROCKER PANEL, RH [11.2010 - 12.2011] GSJ15 |
75805-35120 |
US $171.81 |
||
| replacement | |||||
|
75851
|
75851
75805-35121 Moulding, Rocker Panel, Rh[11.2010 - 12.2011] GSJ15 |
75805-35121 |
from US $92.17 |
||
|
75851
|
75851
75805-35121 Moulding, Rocker Panel, Rh[01.2012 -] GSJ15 |
75805-35121 |
from US $92.17 |
||
|
75852
|
75852
75806-35090 Moulding, Rocker Panel, LhROCKER PANEL, LH [11.2010 - 12.2011] GSJ15 |
75806-35090 |
US $212.58 |
||
| replacement | |||||
|
75852
|
75852
75806-35091 Moulding, Rocker Panel, Lh[11.2010 - 12.2011] GSJ15 |
75806-35091 |
from US $88.14 |
||
|
75852
|
75852
75806-35091 Moulding, Rocker Panel, Lh[01.2012 -] GSJ15 |
75806-35091 |
from US $88.14 |
||
|
76923B
|
76923B
76924-52021 Retainer, Side Mudguard[11.2010 -] GSJ15 |
76924-52021 |
from US $1.10 |
||
|
5216116010
|
5216116010
52161-16010 Clip |
52161-16010 |
from US $1.51 |
||
| replacement | |||||
|
5216116010
|
5216116010
52161-0K040 Clip |
52161-0K040 |
US $1.18 |
||
|
9015960476
|
9015960476
90159-60476 SCREW WWASHER |
90159-60476 |
from US $0.68 |
||
|
9015960603
|
9015960603
90159-60603 SCREW WITH-WASHER |
90159-60603 |
from US $0.61 |
||
|
9016240034
|
9016240034
90162-40034 SCREW OVAL |
90162-40034 |
from US $0.63 |
||
|
9017605020
|
9017605020
90176-05020 NUT CAP |
90176-05020 |
US $0.96 |
||
|
9018904059
|
9018904059
90189-04059 CLIP |
90189-04059 |
from US $0.64 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.91 |
||
|
9018906028
|
9018906028
90189-06028 CLIP |
90189-06028 |
from US $0.74 |
||
|
9018906029
|
9018906029
90189-06029 GROMMET |
90189-06029 |
US $1.24 |
||
|
9018906065
|
9018906065
90189-06065 CLIP |
90189-06065 |
from US $0.68 |
||
|
9043004260
|
9043004260
90430-04260 GASKET |
90430-04260 |
from US $0.82 |
||
