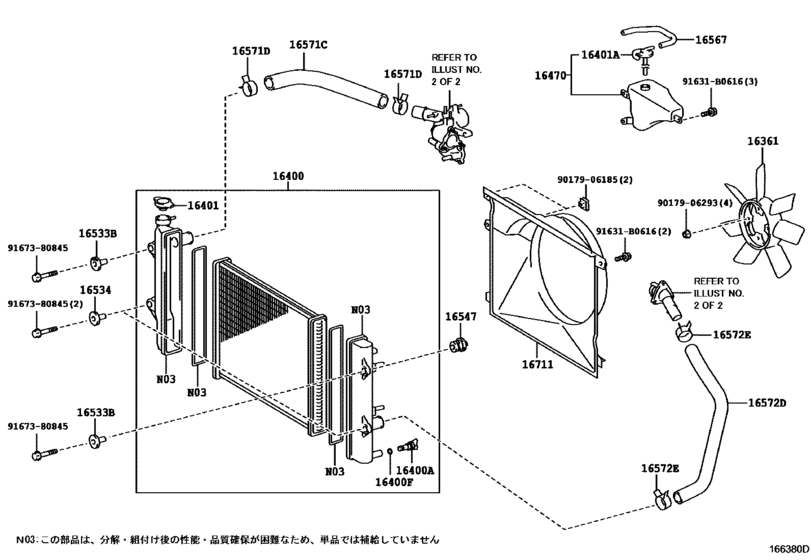

Radiator & Water Outlet ([11.2010 - ] (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16361
|
16361
16361-31060 Fan[11.2010 -] 1GRFE..GSJ15 |
16361-31060 |
from US $77.88 |
||
|
16400
|
16400
16400-31461 Radiator Assy[11.2010 - 02.2012] 1GRFE..GSJ15 |
16400-31461 |
US $714.90 |
||
| replacement | |||||
|
16400
|
16400
16400-31464 Radiator Assy[11.2010 - 02.2012] 1GRFE..GSJ15 |
16400-31464 |
US $714.90 |
||
|
16400
|
16400
16400-31462 Radiator Assy[03.2012 - 09.2014] 1GRFE..GSJ15 |
16400-31462 |
US $714.90 |
||
| replacement | |||||
|
16400
|
16400
16400-31464 Radiator Assy[03.2012 - 09.2014] 1GRFE..GSJ15 |
16400-31464 |
US $714.90 |
||
|
16400
|
16400
16400-31463 Radiator Assy[10.2014 - 03.2016] 1GRFE..GSJ15 |
16400-31463 |
US $714.90 |
||
| replacement | |||||
|
16400
|
16400
16400-31464 Radiator Assy[10.2014 - 03.2016] 1GRFE..GSJ15 |
16400-31464 |
US $714.90 |
||
|
16400
|
16400
16400-31464 Radiator Assy[04.2016 -] 1GRFE..GSJ15 |
16400-31464 |
US $714.90 |
||
|
16400A
|
16400A
23322-54010 Plug,air(For Oil Cooler Drain Cock)[11.2010 -] 1GRFE..GSJ15 |
23322-54010 |
from US $4.56 |
||
|
16400F
|
16400F
16492-21050 Ring, O(For Oil Cooler Drain Cock)[11.2010 -] 1GRFE..GSJ15 |
16492-21050 |
from US $2.01 |
||
|
16401
|
16401
16401-31791 Cap Sub-Assy, Radiator[08.2014 - 09.2014] 1GRFE..GSJ15 |
16401-31791 |
from US $12.52 |
||
|
16401
|
16401
16401-31792
Cap Sub-Assy, Radiator
[10.2014 - 03.2016] 1GRFE..GSJ15 |
16401-31792 |
— | ||
| replacement | |||||
|
16401
|
16401
16401-36020 Cap Sub-Assy, Radiator[10.2014 - 03.2016] 1GRFE..GSJ15 |
16401-36020 |
from US $12.52 |
||
|
16401
|
16401
16401-31830 Cap Sub-Assy, Radiator[04.2016 -] 1GRFE..GSJ15 |
16401-31830 |
from US $12.52 |
||
|
16401
|
16401
16401-46610
Cap Sub-Assy, Radiator
[11.2010 - 08.2014] 1GRFE..GSJ15 |
16401-46610 |
— | ||
| replacement | |||||
|
16401
|
16401
16401-30020 Cap Sub-Assy, Radiator[11.2010 - 08.2014] 1GRFE..GSJ15 |
16401-30020 |
from US $12.52 |
||
|
16401A
|
16401A
16405-50051 Cap Sub-Assy, Radiator Reserve Tank[11.2010 -] 1GRFE..GSJ15 |
16405-50051 |
from US $5.77 |
||
|
16470
|
16470
16470-31130 Tank Assy, Radiator ReserveRADIATOR RESERVE [11.2010 -] 1GRFE..GSJ15 |
16470-31130 |
from US $32.76 |
||
|
16533B
|
16533B
16533-50090 Support, Radiator, No.1[11.2010 -] 1GRFE..GSJ15 |
16533-50090 |
from US $5.45 |
||
|
16534
|
16534
16534-50050 Support, Radiator, No.1[11.2010 -] 1GRFE..GSJ15 |
16534-50050 |
from US $5.28 |
||
|
16547
|
16547
16547-50010 Bush, Radiator Support, No.1[11.2010 -] 1GRFE..GSJ15 |
16547-50010 |
from US $6.97 |
||
|
16567
|
16567
16567-31010 Hose(For Radiator Reserve Tank)[11.2010 -] 1GRFE..GSJ15 |
16567-31010 |
from US $4.54 |
||
|
16571C
|
16571C
16571-31291 Hose, Radiator, No.1[11.2010 -] 1GRFE..GSJ15 |
16571-31291 |
US $15.40 |
||
|
16571D
|
16571D
96136-44301 Clamp Or Clip, Hose(For Radiator Inlet)[11.2010 -] 1GRFE..GSJ15 |
96136-44301 |
from US $3.85 |
||
|
16572D
|
16572D
16572-31170 Hose, Radiator, No.2[11.2010 -] 1GRFE..GSJ15 |
16572-31170 |
from US $16.47 |
||
|
16572E
|
16572E
96136-44301 Clamp Or Clip, Hose(For Radiator Inlet)[11.2010 -] 1GRFE..GSJ15 |
96136-44301 |
from US $3.85 |
||
|
16711
|
16711
16711-31510 Shroud, FanFAN [11.2010 -] 1GRFE..GSJ15 |
16711-31510 |
from US $79.89 |
||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.65 |
||
|
9017906185
|
9017906185
90179-06185 CLIP BUMPER |
90179-06185 |
US $2.48 |
||
|
9017906293
|
9017906293
90179-06293 NUT |
90179-06293 |
from US $0.80 |
||
|
9167380845
|
9167380845
91673-80845 New Genuine Part |
91673-80845 |
US $1.24 |
||
