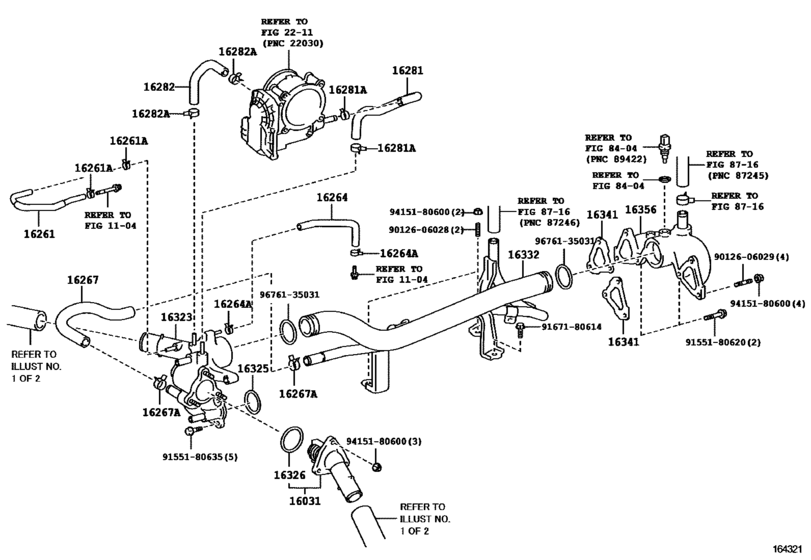

Radiator & Water Outlet ([11.2010 - ] (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16031
|
16031
16031-31011 Water Inlet Sub-Assy, W/thermostat[11.2010 -] 1GRFE..GSJ15 |
16031-31011 |
from US $33.61 |
||
|
16261
|
16261
16261-31100 Hose, Water By-PassWATER BY-PASS [11.2010 -] 1GRFE..GSJ15 |
16261-31100 |
from US $4.66 |
||
|
16261A
|
16261A
96137-41301 Clamp Or Clip, Hose(For Water By-Pass Hose)[11.2010 -] 1GRFE..GSJ15 |
96137-41301 |
from US $1.51 |
||
|
16264
|
16264
16264-31110 Hose, Water By-Pass, No.2WATER BY-PASS, NO.2 [11.2010 -] 1GRFE..GSJ15 |
16264-31110 |
from US $4.66 |
||
|
16264A
|
16264A
96137-41301 Clamp Or Clip, Hose(For Water By-Pass Hose)[11.2010 -] 1GRFE..GSJ15 |
96137-41301 |
from US $1.51 |
||
|
16267
|
16267
16267-31010 Hose, Water By-Pass, No.3[11.2010 -] 1GRFE..GSJ15 |
16267-31010 |
from US $7.16 |
||
|
16267A
|
16267A
96136-42501 Clip(For Ventilation Hose)[11.2010 -] 1GRFE..GSJ15 |
96136-42501 |
from US $2.48 |
||
|
16281
|
16281
16281-31060 Hose, Water By-Pass, No.4WATER BY-PASS, NO.4 [11.2010 -] 1GRFE..GSJ15 |
16281-31060 |
from US $4.66 |
||
|
16281A
|
16281A
96136-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[11.2010 -] 1GRFE..GSJ15 |
96136-41501 |
from US $0.83 |
||
|
16282
|
16282
16282-31040 Hose, Water By-Pass, No.5WATER BY-PASS, NO.5 [11.2010 -] 1GRFE..GSJ15 |
16282-31040 |
from US $4.66 |
||
|
16282A
|
16282A
96136-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[11.2010 -] 1GRFE..GSJ15 |
96136-41501 |
from US $0.83 |
||
|
16323
|
16323
16323-31011 Housing, Water Inlet[11.2010 -] 1GRFE..GSJ15 |
16323-31011 |
US $104.83 |
||
|
16325
|
16325
16325-31010 Gasket, Water Inlet Housing, No.1[11.2010 -] 1GRFE..GSJ15 |
16325-31010 |
from US $1.08 |
||
|
16326
|
16326
16326-31020 Gasket, Water Inlet Housing, No.2[11.2010 -] 1GRFE..GSJ15 |
16326-31020 |
from US $0.70 |
||
|
16332
|
16332
16306-31011 Pipe, Water Outlet, No.1[11.2010 -] 1GRFE..GSJ15 |
16306-31011 |
from US $44.27 |
||
|
16341
|
16341
16341-31010 Gasket, Water Outlet[11.2010 -] 1GRFE..GSJ15 |
16341-31010 |
from US $3.30 |
||
|
16356
|
16356
16356-31011 Joint, Water By-Pass, RearWATER BY-PASS, REAR [11.2010 -] 1GRFE..GSJ15 |
16356-31011 |
from US $47.60 |
||
|
9012606028
|
9012606028
90126-06028 Bolt, Stud(For Oil Pan) |
90126-06028 |
from US $0.59 |
||
|
9012606029
|
9012606029
90126-06029 Bolt, Stud(For Vacuum Transmitting Pipe) |
90126-06029 |
from US $0.61 |
||
|
9155180620
|
9155180620
91551-80620 Bolt |
91551-80620 |
from US $0.61 |
||
|
9155180635
|
9155180635
91551-80635 Bolt(For Head To Camshaft Bearing Cap) |
91551-80635 |
from US $0.72 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.61 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.59 |
||
|
9676135031
|
9676135031
96761-35031 Ring, O(For Water Inlet Pipe) |
96761-35031 |
from US $2.06 |
