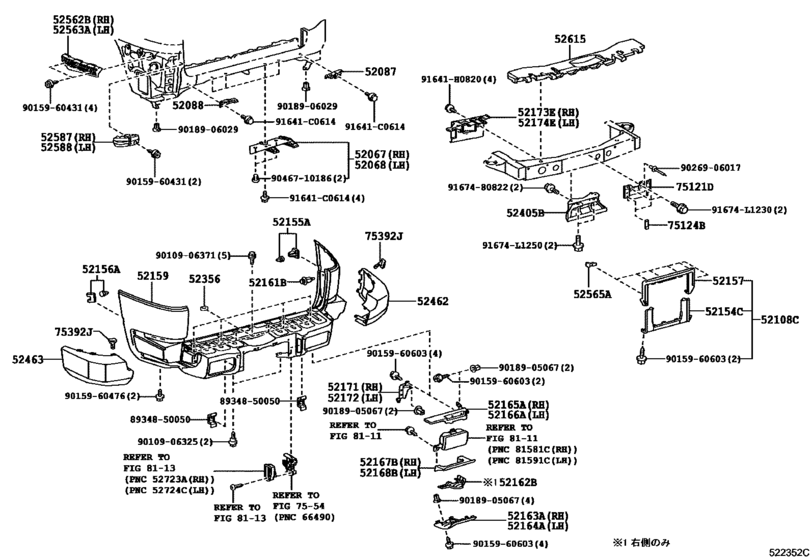

Rear Bumper & Bumper Stay ([11.2010 - ] (1011- )) Diagram Toyota FJ CRUISER
- Year
- 2010 - 2018
- Sales region
- Japan
- Frame
- GSJ15
- ENGINE
- 1GRFE
- TRANSMISSION
- ATM
- From
- 11.2010
- Gear Shift Type
- 5FC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52067
|
52067
52067-35020 Support Sub-Assy, Rear Bumper Side, RhREAR BUMPER SIDE, RH [11.2010 - 12.2011] GSJ15 |
52067-35020 |
US $28.79 |
||
| replacement | |||||
|
52067
|
52067
52067-35021 Support Sub-Assy, Rear Bumper Side, Rh[11.2010 - 12.2011] GSJ15 |
52067-35021 |
US $16.59 |
||
|
52067
|
52067
52067-35021 Support Sub-Assy, Rear Bumper Side, Rh[01.2012 -] GSJ15 |
52067-35021 |
US $16.59 |
||
|
52068
|
52068
52068-35020 Support Sub-Assy, Rear Bumper Side, LhREAR BUMPER SIDE, LH [11.2010 - 12.2011] GSJ15 |
52068-35020 |
US $28.79 |
||
| replacement | |||||
|
52068
|
52068
52068-35021 Support Sub-Assy, Rear Bumper Side, Lh[11.2010 - 12.2011] GSJ15 |
52068-35021 |
US $16.59 |
||
|
52068
|
52068
52068-35021 Support Sub-Assy, Rear Bumper Side, Lh[01.2012 -] GSJ15 |
52068-35021 |
US $16.59 |
||
|
52087
|
52087
52151-35130 Stay Sub-Assy, Rear Bumper Side, Rh[11.2010 - 08.2011] GSJ15 |
52151-35130 |
US $16.89 |
||
| replacement | |||||
|
52087
|
52087
52151-35131 Stay Sub-Assy, Rear Bumper Side, Rh[11.2010 - 08.2011] GSJ15 |
52151-35131 |
US $13.21 |
||
|
52087
|
52087
52151-35131 Stay Sub-Assy, Rear Bumper Side, Rh[09.2011 -] GSJ15 |
52151-35131 |
US $13.21 |
||
|
52088
|
52088
52152-35140 Stay Sub-Assy, Rear Bumper Side, Lh[11.2010 - 08.2011] GSJ15 |
52152-35140 |
US $13.54 |
||
| replacement | |||||
|
52088
|
52088
52152-35141 Stay Sub-Assy, Rear Bumper Side, Lh[11.2010 - 08.2011] GSJ15 |
52152-35141 |
US $10.60 |
||
|
52088
|
52088
52152-35141 Stay Sub-Assy, Rear Bumper Side, Lh[09.2011 -] GSJ15 |
52152-35141 |
US $10.60 |
||
|
52108C
|
52108C
52108-35020
Extension Sub-Assy, Rear Bumper, Center
[11.2010 - 12.2011] GSJ15 |
52108-35020 |
— | ||
| replacement | |||||
|
52108C
|
52108C
52108-35021 Extension Sub-Assy, Rear Bumper, Center[11.2010 - 12.2011] GSJ15 |
52108-35021 |
US $76.56 |
||
|
52108C
|
52108C
52108-35021 Extension Sub-Assy, Rear Bumper, Center[01.2012 -] GSJ15 |
52108-35021 |
US $76.56 |
||
|
52154C
|
52154C
52158-35030 Support, Rear Bumper, No.1[11.2010 - 01.2012] GSJ15 |
52158-35030 |
US $32.32 |
||
| replacement | |||||
|
52154C
|
52154C
52158-35031 Support, Rear Bumper, No.1[11.2010 - 01.2012] GSJ15 |
52158-35031 |
US $26.85 |
||
|
52154C
|
52154C
52158-35031 Support, Rear Bumper, No.1[01.2012 -] GSJ15 |
52158-35031 |
US $26.85 |
||
|
52155A
|
52155A
52155-35030 Support, Rear Bumper Side, RhREAR BUMPER SIDE, RH [11.2010 -] GSJ15 |
52155-35030 |
from US $7.43 |
||
|
52156A
|
52156A
52156-35030 Support, Rear Bumper Side, LhREAR BUMPER SIDE, LH [11.2010 -] GSJ15 |
52156-35030 |
from US $7.43 |
||
|
52157
|
52157
52157-35020 Support, Rear Bumper Side, No.2[11.2010 - 01.2012] GSJ15 |
52157-35020 |
US $48.63 |
||
| replacement | |||||
|
52157
|
52157
52157-35021 Support, Rear Bumper Side, No.2[11.2010 - 01.2012] GSJ15 |
52157-35021 |
US $36.69 |
||
|
52157
|
52157
52157-35021 Support, Rear Bumper Side, No.2[01.2012 -] GSJ15 |
52157-35021 |
US $36.69 |
||
|
52159
|
52159
52159-35380 Cover, Rear Bumper[11.2010 -] GSJ15 |
52159-35380 |
US $509.12 |
||
|
52161B
|
52161B
52161-16010 Clip[11.2010 -] GSJ15 |
52161-16010 |
from US $1.51 |
||
| replacement | |||||
|
52161B
|
52161B
52161-0K040 Clip[11.2010 -] GSJ15 |
52161-0K040 |
US $1.18 |
||
|
52162B
|
52162B
52162-35020
Plate, Rear Bumper, No.1
[11.2010 - 12.2011] GSJ15 |
52162-35020 |
— | ||
| replacement | |||||
|
52162B
|
52162B
52162-35021 Plate, Rear Bumper, No.1[11.2010 - 12.2011] GSJ15 |
52162-35021 |
US $10.46 |
||
|
52162B
|
52162B
52162-35021 Plate, Rear Bumper, No.1[01.2012 -] GSJ15 |
52162-35021 |
US $10.46 |
||
|
52163A
|
52163A
52163-35040 Plate, Rear Bumper, RhREAR BUMPER, RH [11.2010 - 07.2011] GSJ15 |
52163-35040 |
US $19.66 |
||
| replacement | |||||
|
52163A
|
52163A
52163-35042 Plate, Rear Bumper, Rh[11.2010 - 07.2011] GSJ15 |
52163-35042 |
US $14.52 |
||
|
52163A
|
52163A
52163-35041 Plate, Rear Bumper, Rh[08.2011 - 12.2011] GSJ15 |
52163-35041 |
US $19.66 |
||
| replacement | |||||
|
52163A
|
52163A
52163-35042 Plate, Rear Bumper, Rh[08.2011 - 12.2011] GSJ15 |
52163-35042 |
US $14.52 |
||
|
52163A
|
52163A
52163-35042 Plate, Rear Bumper, Rh[01.2012 -] GSJ15 |
52163-35042 |
US $14.52 |
||
|
52164A
|
52164A
52164-35040
Plate, Rear Bumper, Lh
[11.2010 - 12.2011] GSJ15 |
52164-35040 |
— | ||
| replacement | |||||
|
52164A
|
52164A
52164-35041 Plate, Rear Bumper, Lh[11.2010 - 12.2011] GSJ15 |
52164-35041 |
US $16.85 |
||
|
52164A
|
52164A
52164-35041 Plate, Rear Bumper, Lh[01.2012 -] GSJ15 |
52164-35041 |
US $16.85 |
||
|
52165A
|
52165A
52165-35021 Cover, Rear Bumper, Upr Rh[11.2010 -] GSJ15 |
52165-35021 |
US $23.98 |
||
|
52166A
|
52166A
52166-35021 Cover, Rear Bumper, Upr Lh[11.2010 -] GSJ15 |
52166-35021 |
US $23.98 |
||
|
52167B
|
52167B
52167-35020 Bracket, Rear Bumper Extension Mounting, RhREAR BUMPER EXTENSION MOUNTING, RH [11.2010 -] GSJ15 |
52167-35020 |
US $10.46 |
||
|
52168B
|
52168B
52168-35020 Bracket, Rear Bumper Extension Mounting, LhREAR BUMPER EXTENSION MOUNTING, LH [11.2010 -] GSJ15 |
52168-35020 |
US $10.46 |
||
|
52171
|
52171
52177-35060 Retainer, Rear Bumper Side, RhREAR BUMPER SIDE, RH [11.2010 -] GSJ15 |
52177-35060 |
US $17.50 |
||
|
52172
|
52172
52178-35030 Retainer, Rear Bumper Side, LhREAR BUMPER SIDE, LH [11.2010 -] GSJ15 |
52178-35030 |
US $17.50 |
||
|
52173E
|
52173E
52173-35080 Bracket, Rear Bumper Bar, RhREAR BUMPER BAR, RH [11.2010 -] GSJ15 |
52173-35080 |
US $54.17 |
||
|
52174E
|
52174E
52174-35080
Bracket, Rear Bumper Bar, Lh
[11.2010 - 12.2011] GSJ15 |
52174-35080 |
— | ||
| replacement | |||||
|
52174E
|
52174E
52174-35081 Bracket, Rear Bumper Bar, Lh[11.2010 - 12.2011] GSJ15 |
52174-35081 |
US $54.17 |
||
|
52174E
|
52174E
52174-35081 Bracket, Rear Bumper Bar, Lh[01.2012 -] GSJ15 |
52174-35081 |
US $54.17 |
||
|
52356
|
52356
52356-60050 Cushion, Rear Bumper Step[11.2010 -] GSJ15 |
52356-60050 |
from US $0.82 |
||
|
52405B
|
52405B
52405-35020 Guard Sub-Assy, Rear Bumper[11.2010 -] GSJ15 |
52405-35020 |
US $93.72 |
||
|
52462
|
52462
52462-35021 Pad, Rear Bumper, Rh[11.2010 -] GSJ15 |
52462-35021 |
from US $80.52 |
||
|
52462
|
52462
52462-35030 Pad, Rear Bumper, Rh[12.2011 -] GSJ15 ブラックカラーパッケージ |
52462-35030 |
from US $89.76 |
||
|
52463
|
52463
52463-35021 Pad, Rear Bumper, Lh[11.2010 -] GSJ15 |
52463-35021 |
from US $80.52 |
||
|
52463
|
52463
52463-35030 Pad, Rear Bumper, Lh[12.2011 -] GSJ15 ブラックカラーパッケージ |
52463-35030 |
from US $89.76 |
||
|
52562B
|
52562B
52562-35030 Retainer, Rear Bumper, Upper RhREAR BUMPER, UPPER RH [11.2010 -] GSJ15 |
52562-35030 |
from US $47.43 |
||
|
52563A
|
52563A
52563-35030 Retainer, Rear Bumper, Upper LhREAR BUMPER, UPPER LH [11.2010 -] GSJ15 |
52563-35030 |
from US $47.25 |
||
|
52565A
|
52565A
52535-28020 Retainer, Front Bumper, Lower[11.2010 -] GSJ15 |
52535-28020 |
from US $1.44 |
||
|
52587
|
52587
52587-35030 Retainer, Rear Bumper End, RhREAR BUMPER END, RH [11.2010 -] GSJ15 |
52587-35030 |
from US $32.79 |
||
|
52588
|
52588
52588-35030 Retainer, Rear Bumper End, LhREAR BUMPER END, LH [11.2010 -] GSJ15 |
52588-35030 |
from US $33.05 |
||
|
52615
|
52615
52615-35070
Absorber, Rear Bumper Energy
[11.2010 - 06.2011] GSJ15 |
52615-35070 |
— | ||
| replacement | |||||
|
52615
|
52615
52615-35071 Absorber, Rear Bumper Energy[11.2010 - 06.2011] GSJ15 |
52615-35071 |
US $72.60 |
||
|
52615
|
52615
52615-35071 Absorber, Rear Bumper Energy[07.2011 -] GSJ15 |
52615-35071 |
US $72.60 |
||
|
75121D
|
75121D
75121-35080 Bracket, Rear License Plate[11.2010 -] GSJ15 |
75121-35080 |
US $29.03 |
||
|
75124B
|
75124B
75124-35020 Bracket, Rear License Plate Support[11.2010 -] GSJ15 |
75124-35020 |
US $4.68 |
||
|
75392J
|
75392J
75392-35220 Retainer, Rear Bumper[11.2010 -] GSJ15 |
75392-35220 |
from US $1.20 |
||
|
91641C0614
|
91641C0614
91641-C0614 Bolt |
91641-C0614 |
from US $0.63 |
||
|
91641H0820
|
91641H0820
91641-H0820 Bolt |
91641-H0820 |
from US $0.76 |
||
|
91674L1230
|
91674L1230
91674-L1230 New Genuine Part |
91674-L1230 |
US $2.62 |
||
|
91674L1250
|
91674L1250
91674-L1250 New Genuine Part |
91674-L1250 |
US $3.49 |
||
|
8934850050
|
8934850050
89348-50050 Clamp, Headlamp Cleaner, No.1 |
89348-50050 |
from US $3.58 |
||
|
9010906325
|
9010906325
90109-06325 BOLT |
90109-06325 |
from US $0.74 |
||
|
9010906371
|
9010906371
90109-06371 BOLT |
90109-06371 |
from US $1.05 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.70 |
||
|
9015960476
|
9015960476
90159-60476 SCREW WWASHER |
90159-60476 |
from US $0.68 |
||
|
9015960603
|
9015960603
90159-60603 SCREW WITH-WASHER |
90159-60603 |
from US $0.61 |
||
|
9018905067
|
9018905067
90189-05067 GROMMET |
90189-05067 |
from US $1.14 |
||
|
9018906029
|
9018906029
90189-06029 GROMMET |
90189-06029 |
US $1.24 |
||
|
9026906017
|
9026906017
90269-06017 RIVET |
90269-06017 |
from US $1.12 |
||
|
9046710186
|
9046710186
90467-10186 Clip(For Front Fender Apron Seal) |
90467-10186 |
from US $1.29 |
||
|
9167480822
|
9167480822
91674-80822 BOLT FLANGE |
91674-80822 |
from US $0.76 |
||
